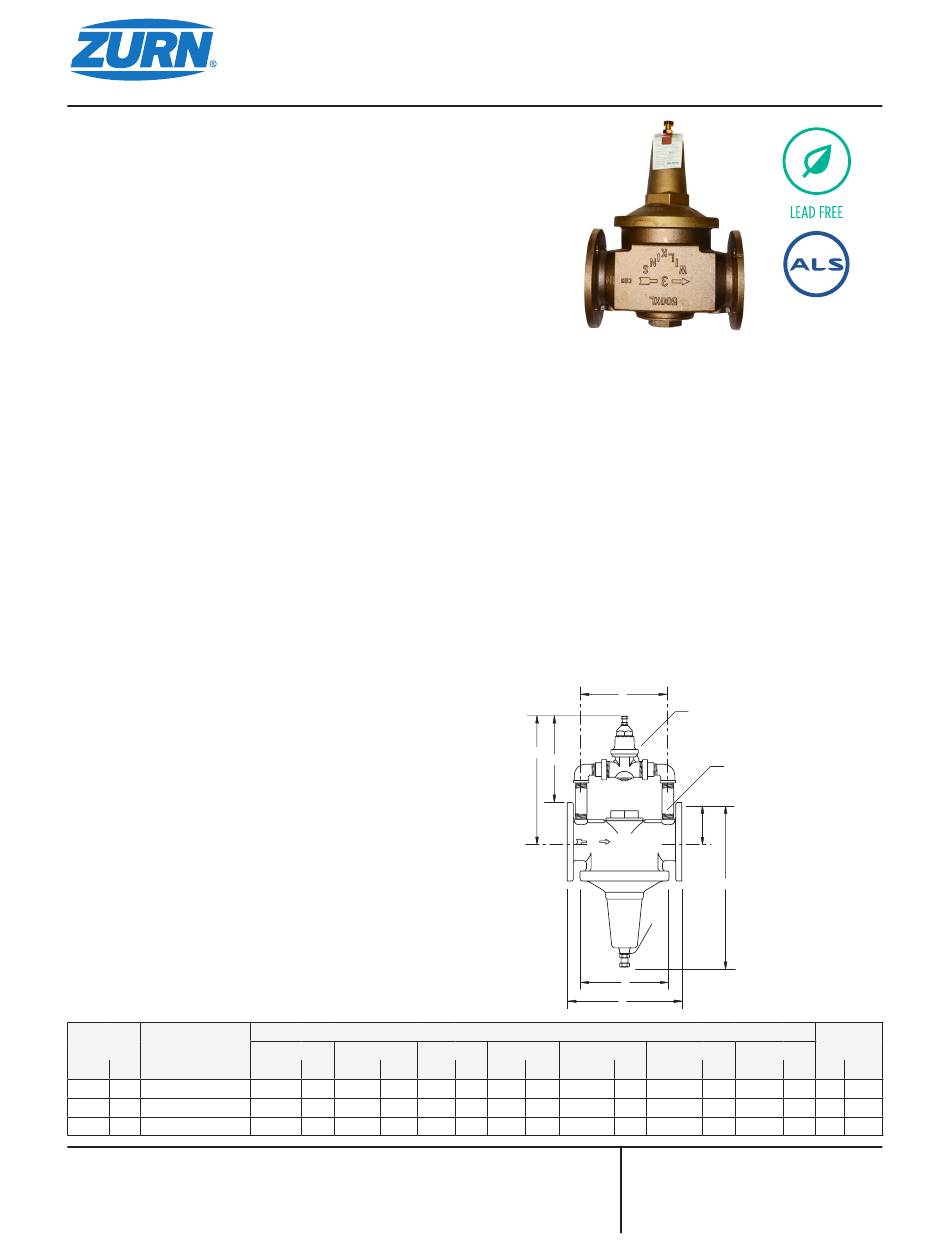

ZURN 500XLFCBP Manual

Application
Zurn Wilkins model 500XLFCBP is designed for installation
on potable water lines to reduce high inlet pressure to a lower
outlet pressure. The high flow capacity makes this device
most suitable for industrial water lines and commercial water
systems. The balanced piston design enables the regulator
to react in a smooth and responsive manner to changes in
system flow demand, while at the same time, providing pro-
tection from inlet pressure changes. Body is drilled, tapped
and plugged to accept low flow by-pass (Model 34-NR3XL-
HRSCDUBPK).
Approvals
• Meets the requirements of NSF/ANSI/CAN 61
Materials
Body & cover Low Lead Cast bronze, ASTM B 806
Bell housing Cast bronze, ASTM B 584
Stem & plunger Low Lead Cast bronze, ASTM B 806
Seat Stainless steel, 300 Series
Elastomers EPDM (FDA approved)
Buna nitrile (FDA approved)
Polymers Delrin™
Features
Sizes: 2", 2 1/2", 3"
Maximum working water pressure
Maximum working water temperature
Reduced pressure range
Factory preset
End connections (flanged)
Dimensions & Weights (do not include pkg.)
SIZE
CONNECTIONS
in. mm
2 50 FLANGED
2 1/2 65 FLANGED
3 80 FLANGED
Zurn Industries, LLC | Wilkins
1747 Commerce Way, Paso Robles, CA U.S.A. 93446 Ph. 855-663-9876, Fax 805-238-5766
| Zurn Industries Limited
In Canada
7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, 877-892-5216
www.zurn.com
Model 500XLFCBP
Flanged Water Pressure Reducing Valve
with Integral By-pass Check Valve
300 psi
140° F
25 psi to 75 psi
50 psi
ASME B16.24
Class 150
A B
in. mm in. mm in.
10 3/8 263 15 381 3
10 3/8 263 15 381 3 1/2 89
11 279 17 3/4 451 3 3/4 95
Options
(Suffixes can be combined)
 510XLFC- 400 psi inlet rating, 75 psi to 125 psi
spring range, factory set at 85 psi
FSC - with cast iron "Y" type flanged strainer,

fusion epoxy coated, inside and out
(2 1/2" & 3" only)
HR - spring range is 75-125 psi, factory set at 85 psi

HLR - spring range is 10-125 psi, factory set at 50 psi

 HTSTSC - high temperature application, up to 180° F
LPV - high temperature application, up to 180° F

spring range is 10-35 psi, factory set at 20 psi
SW - made for salt water service

P - tapped and plugged for gauge

G - tapped and plugged with gauge

Accessories
Repair kit (rubber only)

Low Flow by-pass kit (34-NR3XLHRSCDUBPK)

E
F
G
L
I
3
W
NR3XL
500XL
1
IN 2
W
I
L
K
D
A
DIMENSIONS (approximate)
C D E
mm in. mm in. mm
76 6 1/2 165 7 25/32 198 11 1/2 292 8 1/2 216 30 13.5
8 203 7 25/32 198 11 1/2 292
8 203 7 25/32 198 12 3/64 306 8 5/16 211 50 22.5
NSF/ANSI/CAN 61
OPTIONAL
34-NR3XLHRSCDUBPK
K 3/4" NPT
I
N
/ 4
S
C
/
2
S
N
I
B
F G
in. mm in. mm lbs. kg.
8 203 30 13.5
Rev. D
Date: 6/22
Document No. REG-500XLFCBP
Product No. Model 500XLFCBP
Patent zurn.com/patents
WEIGHT
