RP-7 Valve Section -1 Introduction

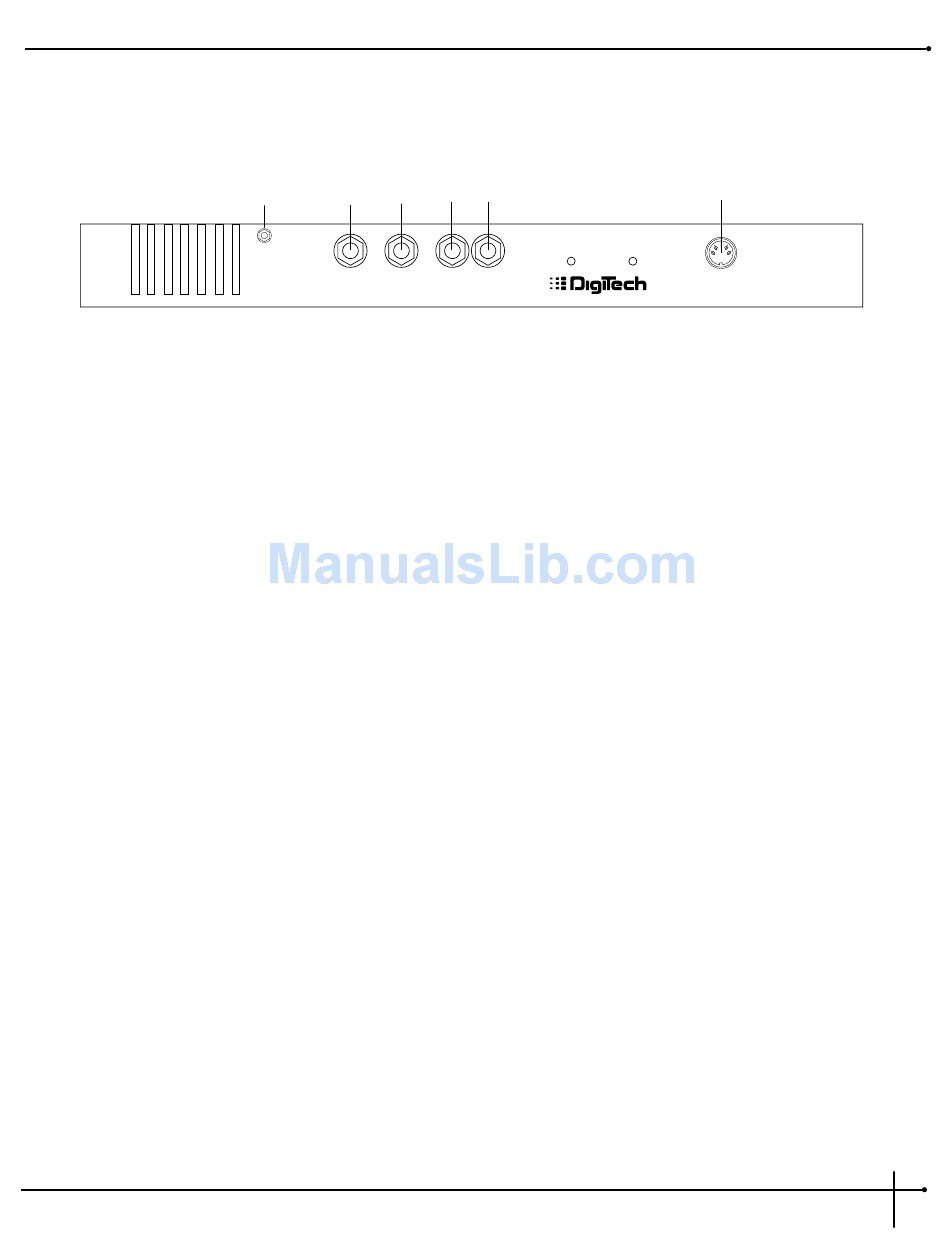

The Rear Panel

6
4 5
1 2 3
JAM-ALONG
POWER
INPUT HEADPHONES LEFT/MONO RIGHT
9VAC 1.33A
OUTPUT OUTPUT
1) Jam-Along Jack- This is the Jam-Along Jack connection of the RP-7 Valve. Connect output of CD or Cassette player here. This is also the
insert point for music that is to be used in the Lear-A-Lick mode.
2) Input - This is the RP-7 Valve's audio input. Plug your guitar in here.
3) Headphone Output - 1/4" stereo plug for headphones. The headphone level is controlled by the main output
level knob.
4) Left/Mono Main Output - This is the RP-7 Valve's left main audio output. This output must be used if a mono effect
is desired.
5) Right Main Output - This is the RP-7 Valve's right main audio output. Use both left and right main outputs to take
advantage of stereo effects.
6) AC Line Input - This is the AC adapter receptacle. Use only the included PS 0912 power supply.
