Making Connections

Your RP-7 Valve can be connected in several different ways to meet the requirements of specific applications. The following diagrams offer
some different ways your RP-7 Valve can be connected.
For those of you out there that feel that "bigger is better", this set-up should work quite nicely for you. First plug into the input of the RP-7
Valve. Connect both RP-7 Valve outputs into the inputs of both of the amplifiers. Using a set-up such as this will let you produce guitar tones
with lots of body. This is also a great set-up to produce lush and thick stereo effects.
6
VALUE PARAMETER
SELECT
8888 CLIP
SIGNAL Store Edit
STORE
BANK PGM #
IN TUNE
COMPRESSOR PREAMP EQUALIZER GATE/SWELL WAH MOD/PITCH DUAL DELAY REVERB SPEAKER CAB
On/Bypass On/Bypass On/Bypass On/Bypass On/Bypass On/Bypass On/Bypass On/Bypass On/Bypass
Amount Type Low Gain Threshold Type Type Type Type Type
Input
EXP PEDAL Gain Mid Freq Attack Time Position (EP1) Level (EP4) Level (EP8) Level (EP10)
# On Level Mid Gain Speed (EP2) Amount (EP5) Time 1 Decay VOLUME
Link (EP )
Bypass Level High Freq Depth (EP3) Key (EP6) Time 2 Pre/Post
Max Value
High Gain Dly/Regen Whammy (EP7) Fback (EP9) Level (EP11)
Min Value
DISTORTION MOD/PITCH DELAY
TUNER

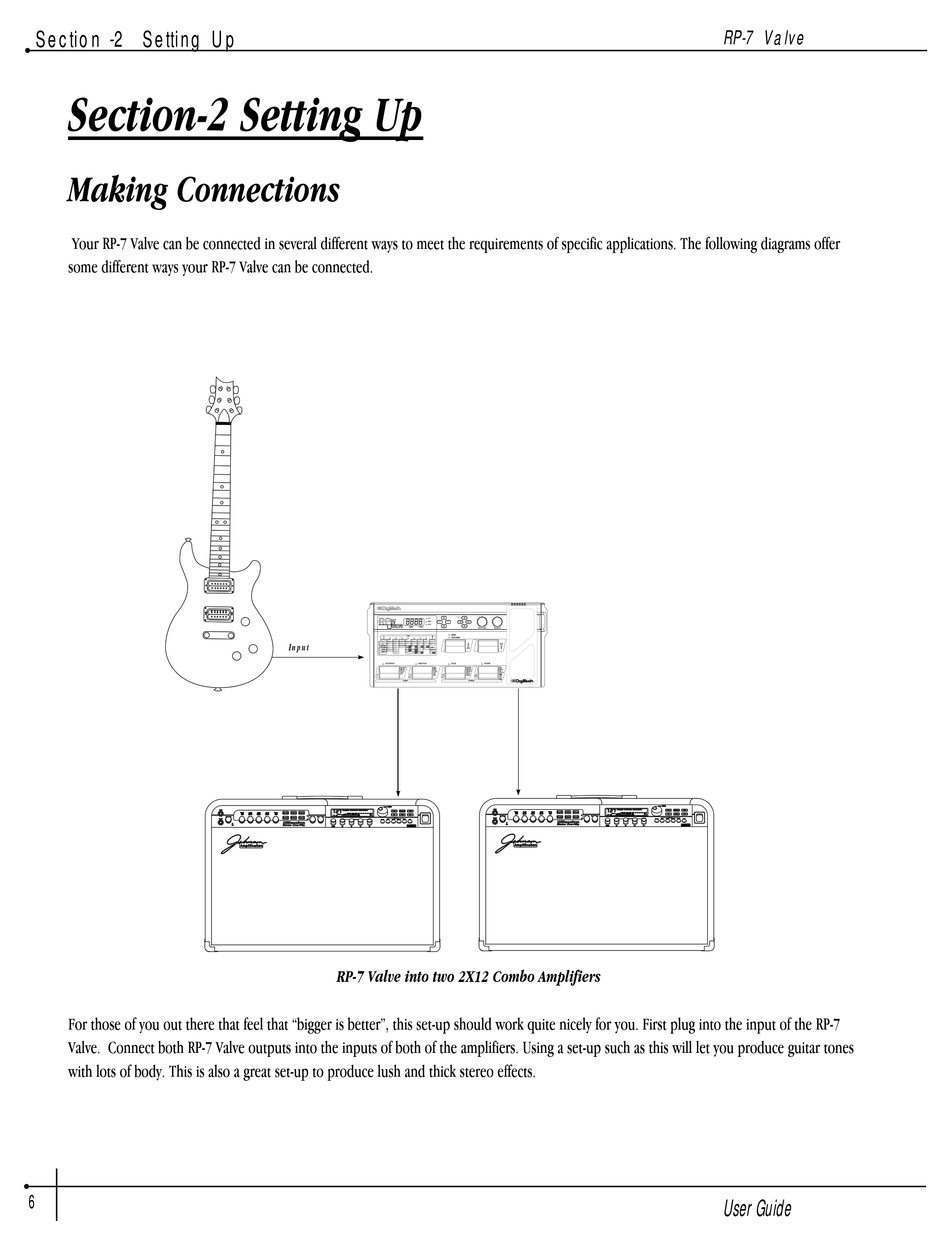

RP-7 Valve into two 2X12 Combo Amplifiers
