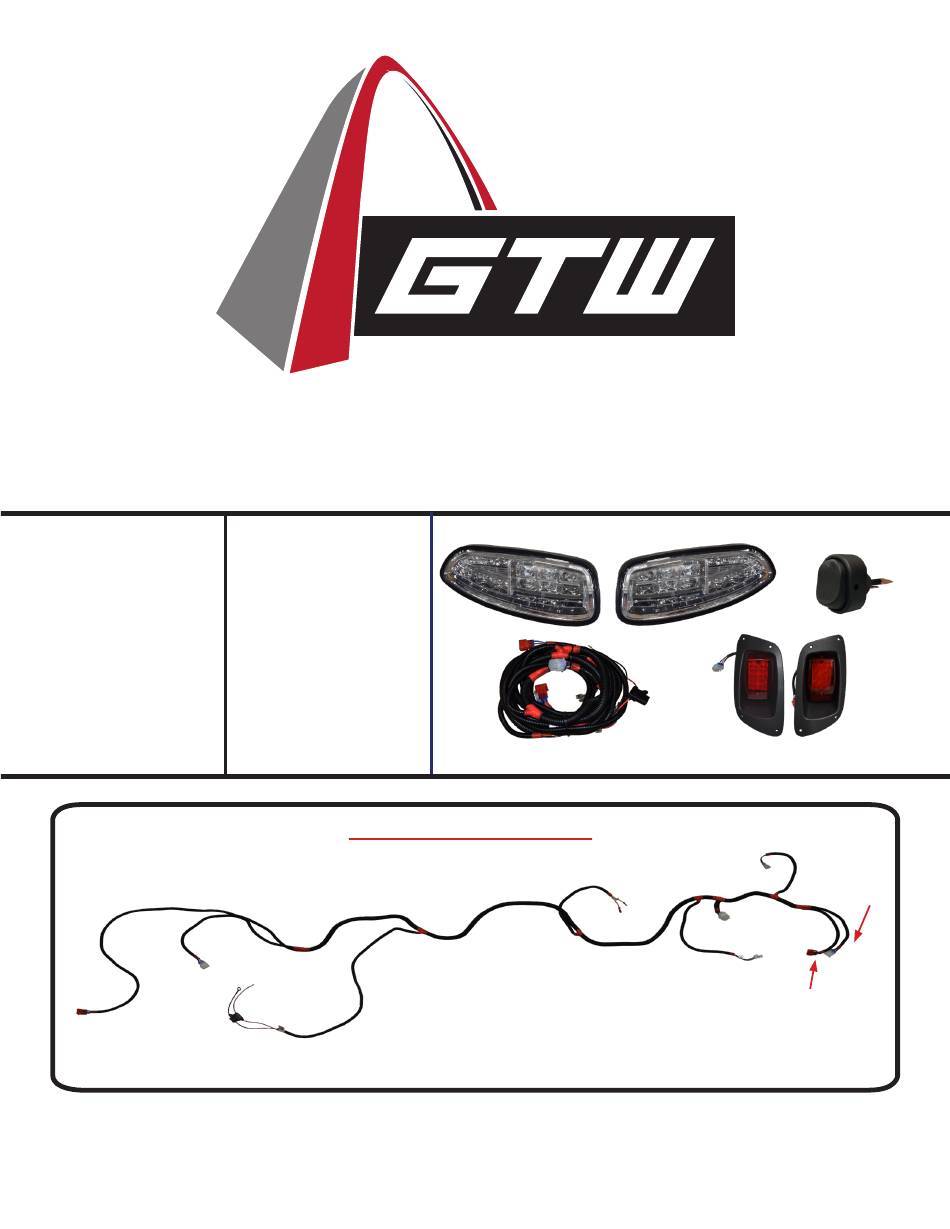

kit contents:
LED Headlights
LED Tail Lights
Upgrade Harness
Mounting Screws
Zip Ties
Rocker Switch
Driver TL
Pass TL
Battery Hookups
Note: This kit is upgrade ready and compatible with the GTW 02-122 Upgrade Light Kit for turn sig-
nals, horn, and brake lights. If you are installing both please use the 02-122 instructions along with
these to avoid repeating steps.
LED Light Kit
will fit *e-z-go
installation instructions
tools needed:
#2 Phillips Tip
Cutting Tool
Sandpaper
Power Drill
15/32" Drill Bit
Marking Pen
Scissors
Tape
Safety Glases
Upgrade Harness Guide
rxv
(2016 & Newer)
®
®
LED Headlights
Upgrade Harness
Brake Pad
Part# 02-119
Light Switch
LED Tail Lights
Horn
Driver HL
Upgrade Plug
Light Switch
Pass HL
Advertisement
Related Manuals for GTW 02-119
Summary of Contents for GTW 02-119
- Page 1 Pass TL Battery Hookups Note: This kit is upgrade ready and compatible with the GTW 02-122 Upgrade Light Kit for turn sig- nals, horn, and brake lights. If you are installing both please use the 02-122 instructions along with these to avoid repeating steps.
- Page 2 Scissors & Tape Turn key to the OFF position and switch the cart into TOW mode at battery pack. Cut out tail light template and place it against cart using the body lines and notes on template for alignment. Draw the inside of the template out with a marking pen.
- Page 3 Insert LED Headlights into cowl and attach to car using clips located behind the headlight. Ensure the headlight mounting clips engage behind cowl to secure light into place. NOTE: Red 3 pin Connector’s are for passenger side lights. Using the harness layout on the front page as a guide, run wiring harness Under Cart beside the frame on the Driver’s...
- Page 4 Remove mounting ring nut from back of switch, then feed threaded end of switch through the dash where the hole was drilled. Secure switch to dash with ring nut. Attach harness to switch, there is no wire orientation. Reattach dash panel using hardware from previous step.
