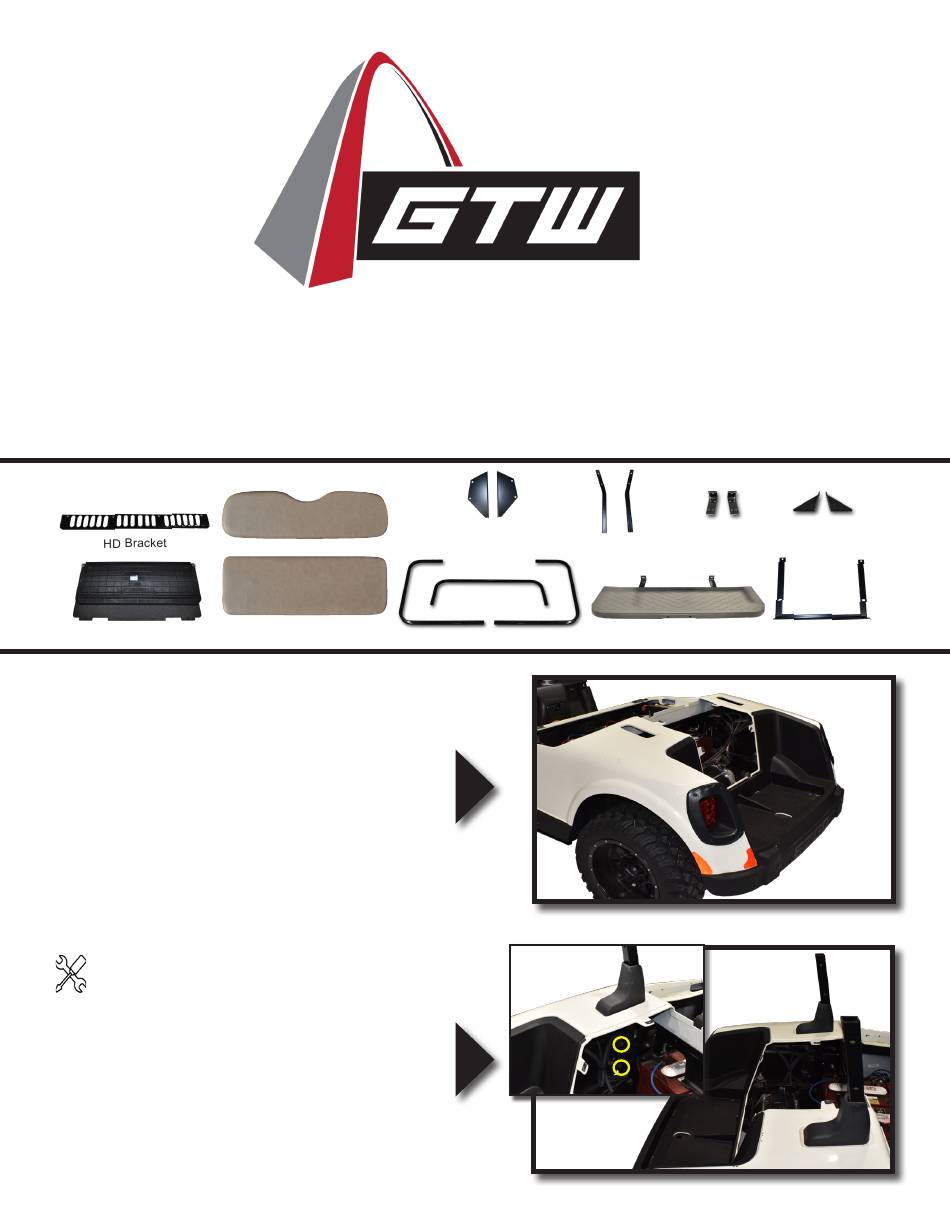

INCLUDED:
*Cushions not included in Frame Only Kits
1
Seat Frame
Note: This kit is designed to work with old and new model RXV
body styles. The following steps are identical for all year models.
Engage the Parking Brake and turn the key
switch to the OFF position.
Remove factory canopy, rear struts, seat
back, seat bottom, and motor cover. Retain
all for rear installation.
2
Tool Required: 15mm Socket & Wrench
Attach Main Brackets with factory boot
cover to frame as shown on both sides using
hardware retained from Step 1.
*Brackets should angle toward rear of cart.

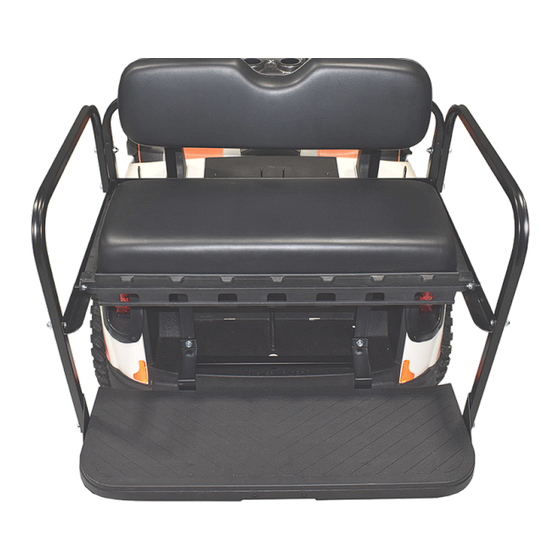

Rear Flip Seat Kit & Frame Only Kit
Installation Instructions for
E-Z-GO
Lean Back Cushion
Seat Bottom Cushion
RXV
®
®
Lean Back Supports
Main Brackets
Seat Back Support Bar
Armrests
Seat
Footrest
Back Brackets
Brackets
Footrest
Bagwell Bracket
Advertisement
Related Manuals for GTW MACH3 EZGO RXV
Summary of Contents for GTW MACH3 EZGO RXV
- Page 1 Rear Flip Seat Kit & Frame Only Kit Installation Instructions for E-Z-GO ® ® INCLUDED: *Cushions not included in Frame Only Kits Lean Back Supports Seat Footrest Back Brackets Brackets Lean Back Cushion Main Brackets Seat Back Support Bar Seat Bottom Cushion Footrest Bagwell Bracket Seat Frame...
- Page 2 Using the factory strut bolts from Step 1, attach the Lean Back Supports to the Main Brackets. Do NOT secure with lock nut until after Step 15mm Socket & Wrench Attach factory rear struts to the Main Brackets & Lean Back Supports using retained hardware from Step 1.
- Page 3 17mm Socket & Wrench Place Seat Frame on rear of cart and secure to the Bagwell Bracket using the 10x25mm hardware from Pack 1. 17mm Socket & Wrench Attach Seat Frame to Main Brackets using remaining hardware from Pack 1. Tighten hardware.
- Page 4 17mm Socket & Wrench A) Attach Footrest to the Bagwell Bracket using the 10x25mm bolts from Pack 3. B) Attach Footrest to the Armrests and Footrest Brackets using the 10x70mm bolts from Pack 3. Note: You can now fully tighten all seat kit hardware.
- Page 5 E-Z-GO®, TXT®, and RXV® are registered trademarks of Textron Innovations, Inc. (“Textron”). Reference to Textron’s trademarks and products is only for purposes of identifying golf carts with which this GTW product is compatible. GTW products are aftermarket parts and are not original equipment parts. GTW is not connected...
