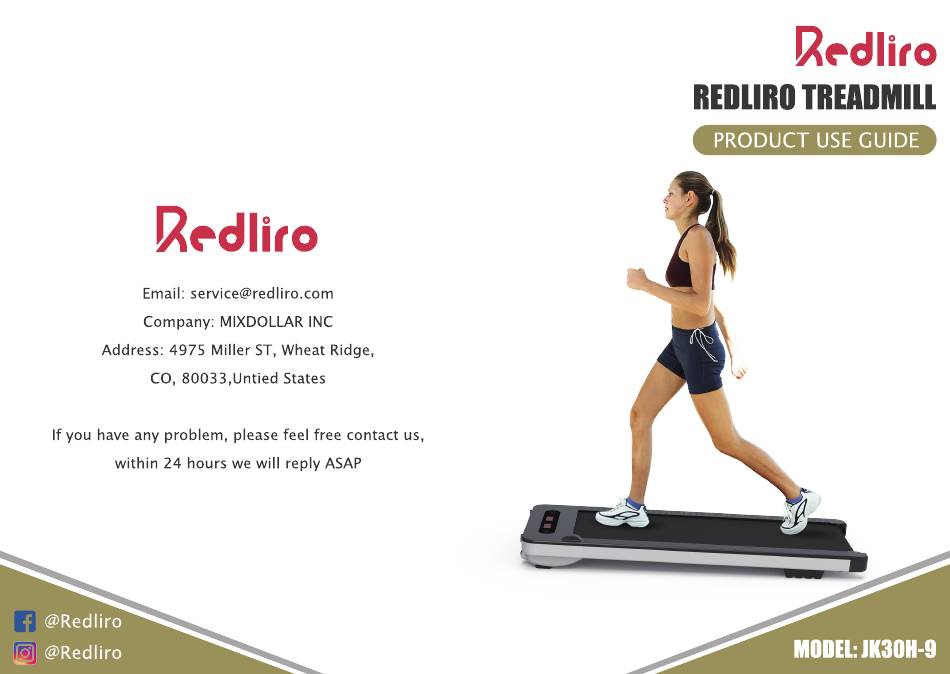

Redliro JK30H-9 Product Use Manual

Walking pad, under desk treadmill 300 lb
Hide thumbs Also See for JK30H-9:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JK30H-9 and is the answer not in the manual?

Questions and answers

Related Manuals for Redliro JK30H-9

Summary of Contents for Redliro JK30H-9

  • Page 2: Contact Us

    Contact our friendly customer service department for help first ! We will reply you within 24 hours and give you a professional solution ! Give us a chance to make it right and do better ! Email:service@redliro.com INTRODUCTION Thank you so much for purchasing our product.

  • Page 3: Table Of Contents

    Content Contact Us! ................... 1 INTRODUCTION ................1 2. Safety Notice ................3 4. Technical Specification ............. 5 ..............5 5. Control Panel 7. Usage of Silicone Oil ..............9 8. Running Belt Adjustment ............10 9. Daily Maintenance ..............11 10.

  • Page 4: Safety Notice

    1. Caution To avoid any hurts, please read this manual carefully before using. For safety purpose do not stand on running belt while start.  Please stop immediately for any feeling of vomit, jerky during using.  Please increase speed slowly if needed. ...

  • Page 5: Caution During Use

    3. Caution During Use If you do not feel well before using, please consult with your doctor or coach.  It is not our company's responsibility for any improper use by user to cause body injured.  Please pull up plug after using. ...

  • Page 6: Technical Specification

    4. Technical Specification Product Name Treadmill Item No. JK30H-9 Power 2.25HP Voltage 220V Frequency 60Hz Speed 0.5-6.5mph/h 5. Control Panel (1) Display 1.1“TIME” window has two modes which shows the running time.①Forward counting time is from 0:00 to 99:59 minutes. ②Countdown is count to 0 from the set time(setting range: 5:00~99:00 minutes).
  • Page 7 “STEP ”window shows the steps. It counts from 0 to 9999 steps. It will recount when the step numbers reaches the top point. Note:The window will be switched from TIME CALORIES and STEP cyclically, you can press“ M” button to switch between cyclic display mode and single display mode in motion state. 1.2“SPEED”...

  • Page 8: Functional Instruction

    (2) Function Of The Remote Control “Start/Stop”: (1) In standby or countdown mode: Pressing “start/stop” button to start the machine. Please note that the default speed is 0.5MPH. (2) In preset program mode: Pressing “start/stop” to start the machine and the speed will changes according to the preset speed.
  • Page 9 3.3 Preset program(P01~P12): choose one program first and then press “+”“-” to set the running time(ranges 5:00~99:00, and the default time is 30:00), press “start/stop” to start the machine, it will run according to the preset speed and speed will change according to the time ”(Time/20)”.

  • Page 10: Usage Of Silicone Oil

    6.Bluetooth Speaker Instructions Turn on the Bluetooth switch in the phone settings, find the available devices “Bluetooth Speaker” in the Bluetooth device connection selection, then select and connect the available audio devices. 7. Usage of Silicone Oil Pull up the running belt slightly, apply silicone oil to the backside of the belt and the top surface of the running deck.

  • Page 11: Running Belt Adjustment

    8. Running Belt Adjustment (1) Running belt deviate to left (please make the adjustment in the left side) Start the machine by speed at 1-1.5 MPH(2-3KM/H) without loading, use Allen wrench to screw the bolt 1/4 turn clockwise (see fig1). Keep the machine running without loading for 1-2 minutes to see if the belt is running to the middle.

  • Page 12: Daily Maintenance

    9. Daily Maintenance 1. 1.Please power off before checking the machine or cleaning. 2. Clear belt and dial plate after use, at least once a week. 3. Check and tighten screws and bolts. 4. Do not hang clothes or other objects on the machine. 10.
  • Page 13 Wires from the 1. Make sure the wires from the control control board to Communic board and panel board are connected panel board are ation securely and not damaged. broken or not Failures 2. Replace the control board if the error properly still shows.
  • Page 14 5 Star Rating Don't hesitate to let us know if you like our product. With your inspiring rating, we will offer easier shopping experience, better products and more efficient service ! Look forward to seeing your purchasing experience, user experience and your review ! Your suggestions and comments are really important to us ! Your review will also can help other customers !
