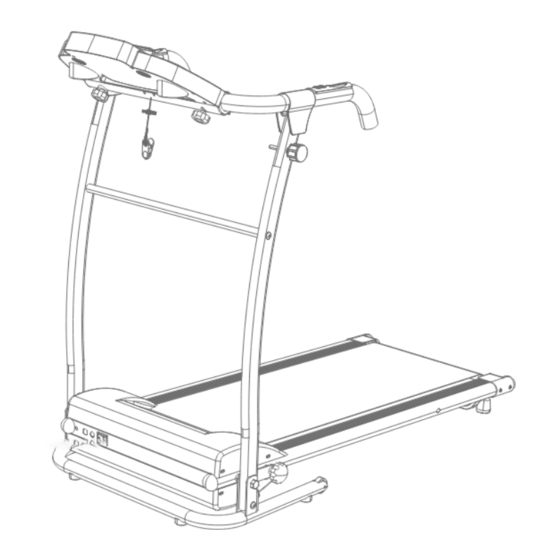

TREADMILL
MODEL: JK105C-1-T
PRODUCT
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JK105C-1-T and is the answer not in the manual?

Questions and answers

Related Manuals for Redliro JK105C-1-T

Summary of Contents for Redliro JK105C-1-T

  • Page 1 TREADMILL MODEL: JK105C-1-T PRODUCT USER GUIDE...

  • Page 2: Table Of Contents

    CONTENT Thank you for purchasing our product. If you have questions, need product information or parts replacement, please contact our customer service department to obtain a complete service experience. Please email us at hi@mixdollar.com with your order number. Response Time Service Safety Information Technical Parameters...

  • Page 3: Safety Information

    hi@mixdollar.com hi@mixdollar.com SAFETY INFORMATION TECHNICAL PARAMETERS Product configuration Technical parameter TO REDUCE THE RISK OF INJURY, PLEASE READ INSTRUCTIONS IN FULL BEFORE USE. lnput voltage 110 V Speed range 0.5-6 mph Maximun load bearing 200 lbs Packaging size 52.36x27.36x8.66 inches Folding size 24.71x15.74x48.31 inches •...

  • Page 4: Package List

    hi@mixdollar.com hi@mixdollar.com PACKAGE LIST PRODUCT STRUCTURE Display Panel Instrument & Buttons Handrail Button Safety Key Folding Lock Button Column Tube Motor Upper Cover Foot Edge Strip Locking Switch Motor Lower Cover Running Belt Rear Shield (Right) Rear Shield (Left) SERIAL NO. DESCRIPTION QUANTITY UNIT...

  • Page 5: Assembly And Folding

    hi@mixdollar.com hi@mixdollar.com ASSEMBLY AND FOLDING STEP 2 on the other side. THE RUNNING BELT IS MADE OF HEAD AND TAIL SPLICING, THERE ARE SEAM MARKS, IT IS NORMAL PROCESS PHENOMENON, AND DOES NOT AFFECT THE NORMAL USE OF THE TREADMILL. ENSURE THE DEVICE IS POWERED OFF AND IS NOT PLUGGED IN TO AN OUTLET PRIOR TO ASSEMBLY.
  • Page 6 hi@mixdollar.com hi@mixdollar.com STEP 4 FOLDING STEPS Remove the screws securing the back of the control panel. Connect the control panel to your device with M6 knob (NO.9) and M6 knob washer (NO.10). Remove the 2 pre-installed screws on crossbar (NO.2), and use Fold: these two screws to connect the crossbar (NO.2) to column tube.

  • Page 7: Console Command Description

    hi@mixdollar.com hi@mixdollar.com CONSOLE COMMAND DESCRIPTION In preset/custom mode, press the button and the treadmill will start, run at preset values and accumulate data. When the machine is paused, pressing the START button will continue the program set before pause. The "START" button on the handrail has the same function. STOP button: Press the "Stop"...

  • Page 8: Instructions For Using The Treadmill

    hi@mixdollar.com hi@mixdollar.com INSTRUCTIONS FOR USING THE TREADMILL HOW TO USE THE TREADMILL IN PRESET MODE 1. How to choose a program In standby mode, you can select from 12 preset automatic programs (P1-P12) by pressing the PROG button PREPARATION BEFORE USE: on the console.

  • Page 9: Product Maintenance

    hi@mixdollar.com hi@mixdollar.com PRODUCT MAINTENANCE Distance setting: In standby mode, press the MODE button on the console twice and then adjust the distance by pressing the +/- buttons on the console or handrail. Hold for more than 0.5 seconds for counter to roll quickly. The selectable distance range is 0.5-99 miles.

  • Page 10: Routine Maintenance

    hi@mixdollar.com hi@mixdollar.com ROUTINE MAINTENANCE RUNNING BELT IS OFF CENTER Note: Please remove the safety key and unplug the power cord. Running belt shifted to the left USE OF SILICONE LUBRICANT Use the L-Wrench wrench to turn the left rear roller bolt clockwise 1/4 of a turn to tighten the running belt. The treadmill has been lubricated prior to shipment.

  • Page 11: Troubleshooting And Handling

    hi@mixdollar.com hi@mixdollar.com TROUBLESHOOTING AND HANDLING the metal contact pins in the terminal are neatly arranged. There are buckles at the terminals and these buckles should not be able to be pulled out of place if you pull lightly • If the problem persists, please contact customer service. Issue 5: The screen display and the safety key are unresponsive.

  • Page 12: Workout Guide

    hi@mixdollar.com hi@mixdollar.com WORKOUT GUIDE Issue 12: Fault code on display. • E05: Over current protection. THE CORRECT FORM FOR SEVERAL BASIC STRETCHES IS SHOWN AT THE RIGHT. MOVE SLOWLY AS YOU STRETCH — NEVER BOUNCE. to the maintenance instructions regarding lubrication and test again. •...

  • Page 13: Warranty

    hi@mixdollar.com WARRANTY Manufacturer’s Limited Warranty This product is under warranty by Mixdollar covering manufacturing defects in material and workmanship. Warranty period of parts All components are under warranty for 1 year. Exclusions of warranty: Warranty does not cover damage due to reasons below: Improper installation or non-compliance with Mixdollar’s installation guidelines;...
  • Page 14 Need help? We've got you covered 24/7! Reach out anytime for friendly assistance with any questions or concerns. JK105C-1-T Mixdollar Find Turtorial on YouTube...
