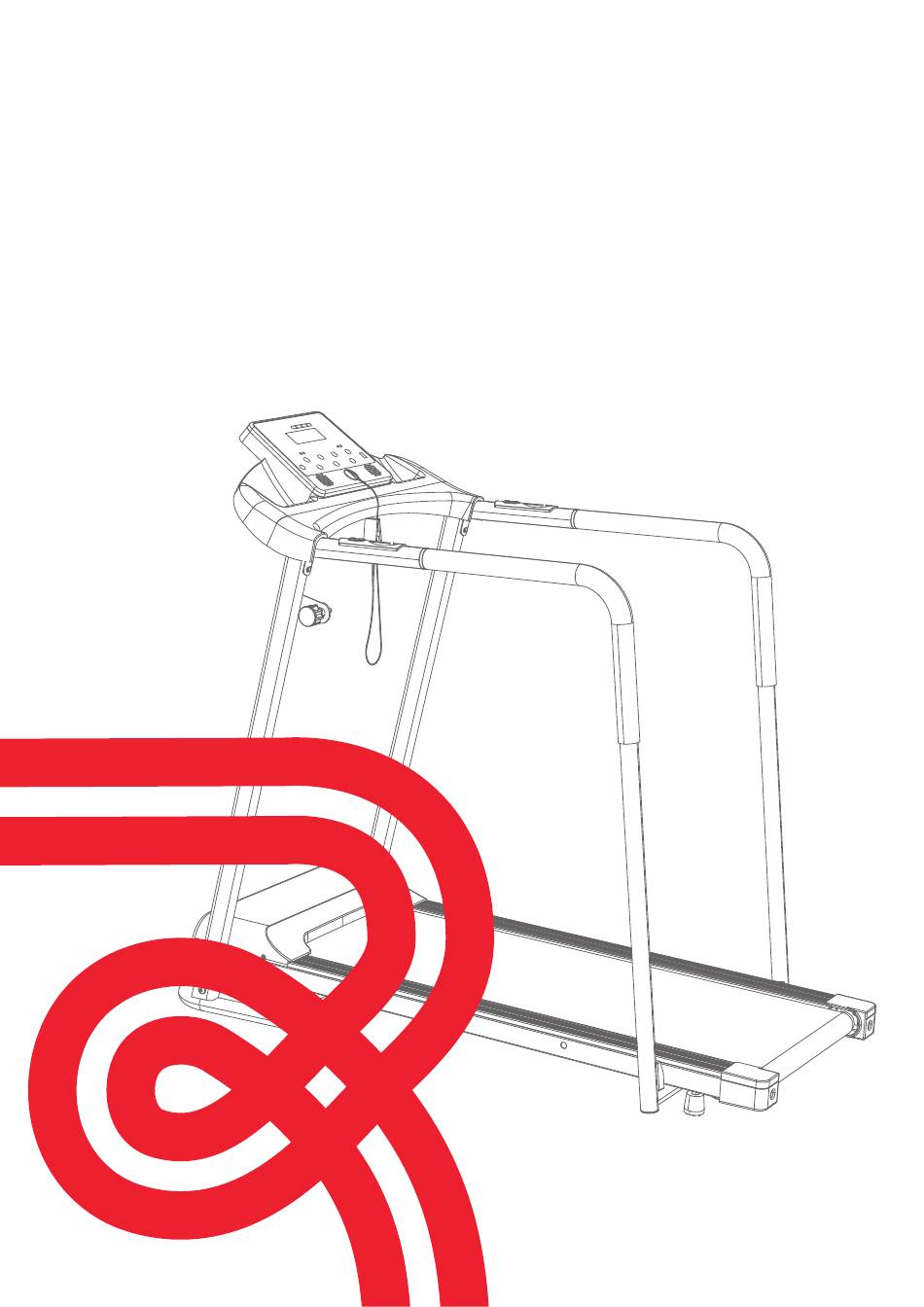

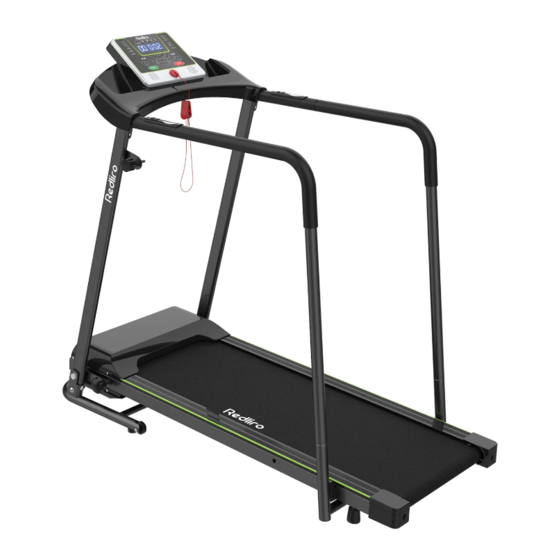

- Page 1 TREADMILL MODEL: JK1608L-T PRODUCT USER GUIDE...
-
Page 2: Table Of Contents
CONTENT Thank you for purchasing our product. If you have questions, need product information or parts replacement, please contact our customer service department to obtain a complete service experience. Please email us at hi@mixdollar.com with your order number. Response Time Service Safety Information Technical Parameters... -
Page 3: Safety Information
hi@mixdollar.com hi@mixdollar.com SAFETY INFORMATION TECHNICAL PARAMETERS Product configuration Technical parameters TO REDUCE THE RISK OF INJURY, PLEASE READ INSTRUCTIONS IN FULL BEFORE USE. Input voltage 110 v Speed range 0.5-5.5 mph Maximum load bearing 300 lbs Package size 53.1x27.4x8.7 inches Assembly size 51x25x46 inches •... -
Page 4: Package List
hi@mixdollar.com hi@mixdollar.com PACKAGE LIST PRODUCT STRUCTURE Display Panel Instrument & Buttons Safety Key Handrail Button Armrest Folding Lock Button Support Bar Motor Upper Cover Foot Edge Strip Locking Switch Running Belt Motor Lower Cover Rear Shield (Right) SERIAL NO. DESCRIPTION QUANTITY UNIT Rear Shield (Left) -
Page 5: Assembly
hi@mixdollar.com hi@mixdollar.com ASSEMBLY STEP 2 Remove the prelocking screws as shown in the diagram. Reinstall the control console and support bar using the pre-removed screws. NOTE: THE RUNNING BELT IS MADE OF HEAD AND TAIL SPLICING, THERE ARE SEAM MARKS, IT IS NORMAL PROCESS PHENOMENON, AND DOES NOT AFFECT THE NORMAL USE OF THE TREADMILL. - Page 6 hi@mixdollar.com hi@mixdollar.com STEP 4 STEP 6 Remove the pre-installed M5x25 screws on the armrest bar base (No.3). Then insert the armrest (No.4) bars Tighten the M12 knob (No.9). Secure the safety key (No.10). into the armrest bar base (No.3), and reinstall the M5x25 screws. After assembly,connect the power and turn on the power switch to start enjoying your new treadmill.
-
Page 7: Console Command Description
hi@mixdollar.com hi@mixdollar.com CONSOLE COMMAND DESCRIPTION In preset/custom mode, press the button and the treadmill will start, run at preset values and accumulate data. When the machine is paused, pressing the START button will continue the program set before pause. START button on the handrail has the same function. -
Page 8: Instructions For Using The Treadmill
hi@mixdollar.com hi@mixdollar.com INSTRUCTIONS FOR USING THE TREADMILL HOW TO USE THE TREADMILL IN PRESET MODE 1. How to choose a program In standby mode, you can select from 12 preset automatic programs (P1-P12) by pressing the PROG button PREPARATION BEFORE USE: on the console. -
Page 9: Product Maintenance
hi@mixdollar.com hi@mixdollar.com PRODUCT MAINTENANCE Distance setting: In standby mode, press the MODE button on the console twice and then adjust the distance by pressing the +/- buttons on the console or handrail. Hold for more than 0.5 seconds for counter to roll quickly. The selectable distance range is 0.4-99 miles. -
Page 10: Routine Maintenance
hi@mixdollar.com hi@mixdollar.com ROUTINE MAINTENANCE RUNNING BELT IS OFF CENTER Note: Please remove the safety key and unplug the power cord. USE OF SILICONE LUBRICANT Running belt shifted to the left The treadmill has been lubricated before shipment. The interaction between the running belt and the Use the L-Wrench wrench to turn the left rear roller bolt clockwise 1/4 of a turn to tighten the running belt. -
Page 11: Troubleshooting And Handling
hi@mixdollar.com hi@mixdollar.com TROUBLESHOOTING AND HANDLING the metal contact pins in the terminal are neatly arranged. There are buckles at the terminals and these buckles should not be able to be pulled out of place if you pull lightly • If the problem persists, please contact customer service. Issue 5: The screen display and the safety key are unresponsive. -
Page 12: Workout Guide
hi@mixdollar.com hi@mixdollar.com WORKOUT GUIDE Issue 12: Fault code on display. • E05: Over current protection. THE CORRECT FORM FOR SEVERAL BASIC STRETCHES IS SHOWN AT THE RIGHT. MOVE SLOWLY AS YOU STRETCH — NEVER BOUNCE. to the maintenance instructions regarding lubrication and test again. •... -
Page 13: Warranty
hi@mixdollar.com WARRANTY Manufacturer’s Limited Warranty This product is under warranty by Mixdollar covering manufacturing defects in material and workmanship. Warranty period of parts All components are under warranty for 1 year. Exclusions of warranty: Warranty does not cover damage due to reasons below: Improper installation or non-compliance with Mixdollar’s installation guidelines;... - Page 14 Need help? We've got you covered 24/7! Reach out anytime for friendly assistance with any questions or concerns. JK1608L-T Mixdollar Find Turtorial on YouTube...
