Summary of Contents for Pyle PLCM4590WIR

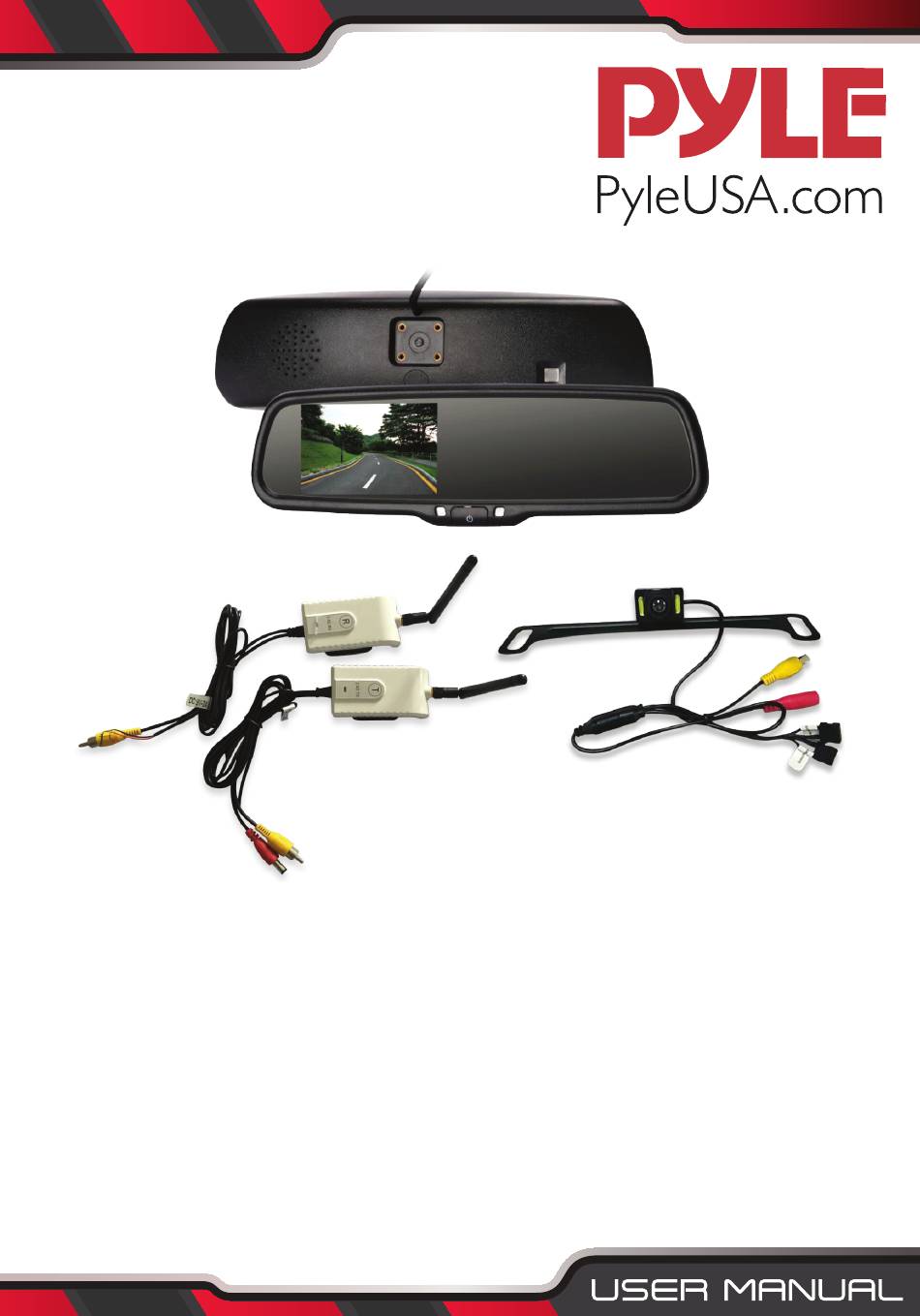

- Page 1 PLCM4590WIR 2.4Ghz Rearview Mirror Monitor & Backup Camera System Wireless Video Transmission 4.3'' -inch Display Screen...
- Page 2 Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. Please consult an experienced technician if you are not comfortable installing the product.
-
Page 3: System Installation And Wiring
surroundings, as the displayed image may be not well lit or not entirely visible. Always proceed with caution and perform double checks before proceeding. • The area displayed by the Backup Camera is limited. It does not display objects hat are close to or just below the bumper, underneath the vehicle, or objects out of the camera’s view. - Page 4 Through installation of this backup camera system, you should be sure as to not degrade, damage orcompromise the safety of any system or device on your vehicle. Improper installation and wiring of the vehicle back up camera system may damagethe vehicle's electrical system, including vital vehicle computer and operating systems.
- Page 5 Quick Installation: 1. The included 2.4Ghz wireless modules come in two parts, one is the "Transmitter", the other is the "Receiver". • When installing the transmitter accessory cable -- it should connect to the camera -- allowing the camera to transmit video. •...
- Page 6 Monitor (Receiver): If you decide to create a hard-wired system connection to your vehicle, connect the receiver's red wire of the DC 12V power cable, to the positive 12V reverse tail light in the rear of your car. Then connect the black wire of the DC 12V power cable and ground properly.
- Page 7 Monitor Important Notes: • Determine the best location for the camera (Keep in mind that you must run the cable from the camera to the transmitter). You may need to drill a small hole in the panel near your license plate (The camera is preferably mounted just above the license plate).
- Page 8 PLCM4590WIR 2.4Ghz Rearview Mirror Monitor & Backup Camera System with Wireless Video Transmission, 4.3'' -inch Display Screen System Features: • Wireless Backup Camera & Monitor Parking Assist System • Includes Camera, Monitor and All Necessary Cables & Wiring • 2.4Ghz Wireless Video Transmission •...
- Page 9 Backup Camera: • Connects to 2.4Ghz Wireless Video Transmitter • Marine Grade Construction • Waterproof & Fog Resistant, IP67 Rating • Night Vision Low Lighting Capable • Low Lux Performance 0.2 LUX • Built-in Distance Scale Line Display • Preferably Mounting Above the Rear License Plate •...
