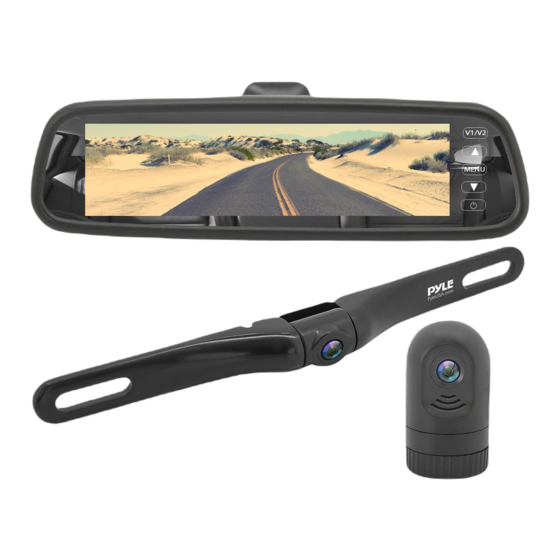

- Page 1 VEHICLE DVR DASH CAM KIT HD Video Recording System with Rearview Mirror Monitor, 7.4’’ -inch LCD Display, Compact Dash Cam, Rear-View Backup Camera...
- Page 2 DESCRIPTION Vehicle DVR Dash Cam Kit HD Video Recording System with Rearview Mirror Monitor, 7.4’’ -inch LCD Display, Compact Dash Cam, Rear-View Backup Camera MONITOR WIRING CONNECTION: REAR VIEW BACKUP CAMERA: Angle Adjustable Camera Lens Located on the camera housing are 2 screws which lock the camera lens angle in position.
- Page 3 OPERATION INSTRUCTIONS: 1. V1 connect the left optic camera signal; V2 camera signal connection (reverse priority display); V3 connection right camera signal. 2. Trigger (rearview camera line) displays rear camera screen; trigger (left video line) shows the left optic camera; trigger (right video line) display right depending on the camera screen;...
- Page 4 SYSTEM FEATURES: Vehicle DVR Driving Video Recording System ● Rear-View Mirror Assembly with Built-in 7.4’’ -inch Display Screen ● Camera + Camcorder: Snap Pictures or Record Video ● Night Vision Illumination ● Built-in G-Sensor Auto-save Recording during Collision ● Built-in Microphone for Audio Recording ●...
- Page 5 TECHNICAL SPECS: Video System: PAL/NTSC Auto Switching ● LCD Screen: 7.36’’ TFT LCD ● Monitor Resolution: 1280 x 420 Pixels ● Brightness: 1000cd/m2 ● Aspect Ratio: 16:9 ● Monitor And Camera Connector: RCA connector ● AV Inputs: 3CH- AV1- Left Camera, AV2-Back Camera, AV3-Right Camera ●...
