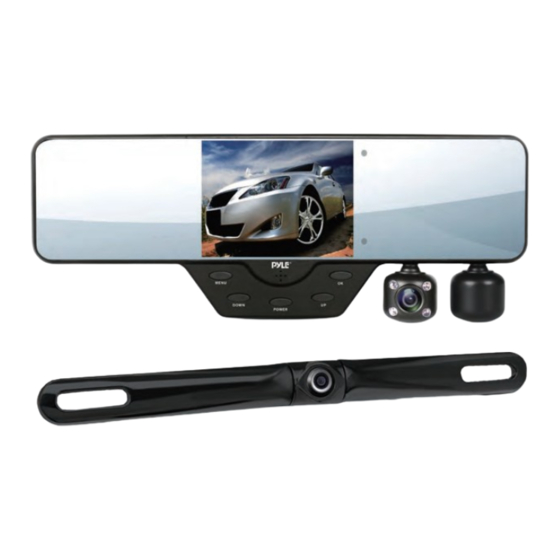

- Page 1 PLCMDVR54 DASH CAM Rearview Backup and Driving HD Camera Record Kit 1080p Night Vision Cam Video Recording System...
-
Page 2: Table Of Contents
CONTENTS 1 BASIC PARAMETERS ..........................2 2 KEY DEFINITION ............................3 1 DVR POWER ON/OFF ...........................4 2 DRIVING RECORD FUNCTION........................4 3 MOTION DETECTION ...........................5 4 CAMERA FUNCTION ............................6 5 BROWSER .................................7 5.1 REC FILES ..............................8 5.2 SOS FILES ..............................9 5.3 MOTION DETECTION ..........................9 5.4 PHOTO FILES..............................10 6 SETTINGS................................11 6.1 VIDEO QUALITY............................11... -
Page 3: Basic Parameters
BASIC PARAMETERS SPECIFICATIONS ITEMS VALUE Lens 500 million pixels, 140 degree high resolution wide angle lens Lens Aperture F/1.8 Optic 6 glass high-level coating lens+ infrared lter Display 4.3 inch TFT display 1920x1080@ 30fps, 1280x720@ 30fps Recording Resolution Memory Card 4GB/8GB/16GB/32GB/64GB/128GB TF High Speed Memory Card Video Mode Continuous Video, Accident Recording, Parking Video... -
Page 4: Key Definition
KEY DEFINITION BACK UP CAMERA RESET Charging Indicator Recording Light MENU POWER Lens Night Lamp DOWN Clip on Bracket Speaker Micro SD Slot www.PyleUSA.com... -
Page 5: Dvr Power On/Off
1. DVR POWER ON/OFF Startup screen Shutdown screen DVR POWER ON • Connect external power supply or press to turn on the power DVR POWER OFF • Press for 2 seconds, to turn off the power. After setting auto power off time, when there is no external power supply, the system will start the countdown and will shut down when countdown ends. -
Page 6: Motion Detection
ICONS Normal Recording 1280x720@ 30fps 1920x1080@ 30fps Sound Recording Off Sound Recording On Prompt Tone On Mute Loop Recording 2 Minutes Loop Recording 1 Minute Full Battery Connect External Power Supply Record Time Emergency Recording Loop Recording 3 Minutes KEY DEFINITION Operation De nition Shutdown... -
Page 7: Camera Function
ICONS Normal Recording 1280x720@ 30fps 1920x1080@ 30fps Sound Recording Off Sound Recording On Prompt Tone On Mute Full Battery Record Time Motion detection recording 10 seconds Connect External Power Supply Emergency Recording KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off... -
Page 8: Browser
KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Invalid Operation Short press Short press Invalid Operation Short press Take picture Long press Invalid Operation 5. BROWSER FUNCTION DESCRIPTION The number shows the quanTIty of documents contained in the four project folders 'REC Files' , 'SOS Files' , 'MD Files' , 'Photos Files' . -
Page 9: Rec Files
KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back Left Short press Short press Right Short press Enter Sub-option Long press Invalid Operation 5.1 REC FILES REC Files File List FUNCTION DESCRIPTION •... -
Page 10: Sos Files
KEY DEFINITION FOR 'FILE LIST' Operation De nition Shutdown Long press for 2 seconds Short press Delete le Short press Back to REC les folder Short press Short press Down Short press Play video le Long press Invalid Operation KEY DEFINITION WHEN PLAYING VIDEO FILE Operation De nition... -
Page 11: Photo Files
FUNCTION DESCRIPTION • Choose the folder and press 'ok' to enter file list. • Press 'ok' again to preview the photos.. KEY DEFINITION FOR 'PHOTOS FILES' FOLDER OPERATION Operation De nition Shutdown Long press for 2 seconds Short press Delete folder Short press Back to menu Short press... -
Page 12: Settings
SETTINGS KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Invalid Operation Left Short press Short press Right Short press Enter Sub-option Long press Invalid Operation 6.1 VIDEO QUALITY VIDEO QUALITY •... -
Page 13: Photo Size
KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Short press Short press Down Short press Enter sub-option and change setting Long press Invalid Operation 6.2 PHOTO SIZE Photo Size setting 1 Photo Size setting 2 PHOTO SIZE... -
Page 14: Loop Recording
KEY DEFINITION FOR 'PHOTO SIZE SETTING 2' Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to previous menu Left Short press Short press Right Short press Con rm setting Long press Invalid Operation 6.3 LOOP RECORDING... -
Page 15: Sound Record
6.4 SOUND RECORD FUNCTION DESCRIPTION • ON: Record video with sound (default setting) • OFF: Record video without sound. KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Short press ... -
Page 16: Md Sensitivity
KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Short press Short press Down Short press Enter sub-option Long press Invalid Operation 6.6 MD SENSITIVITY FUNCTION DESCRIPTION Motion detection sensitivity: HIGH, MIDDLE, LOW. -
Page 17: Collision Sensitivity
6.7 COLLISION SENSITIVITY Collision sensitivity: OFF(Default setting), HIGH, MIDDLE, LOW. KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Short press Short press Down Short press Enter sub-option Long press Invalid Operation... -
Page 18: G Sensor
KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Short press Short press Down Short press Enter sub-option Long press Invalid Operation 6.9 G SENSOR OFF/HIGH/MIDDLE/LOW sensitivity for different environment. MIDDLE is the Default setting. -
Page 19: Volume Setting
KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Short press Short press Down Short press Enter sub-option Long press Invalid Operation 6.11 VOLUME SETTING Volume setting on Mute or 5%-100% KEY DEFINITION Same as 'Button Sound' setting. -
Page 20: Light Frequency
KEY DEFINITION Same as above. 6.13 LIGHT FREQUENCY • 50Hz: Remove light frequency interference of 50Hz (Default setting). • 60Hz: Remove light frequency interference of 60Hz. NOTE: This function is to remove the interference of indoor fluorescent light 50Hz or 60Hz to system CMOS image. -
Page 21: Language
KEY DEFINITION FOR 'SET CLOCK 2' Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Switch among year, month, date, Short press hour, minute and second Short press Short press Short press Con rm setting Long press Invalid Operation 6.15 LANGUAGE... -
Page 22: Reset Setup
6.16 RESET SETUP Initialize all settings to factory default settings KEY DEFINITION Operation De nition Shutdown Long press for 2 seconds Short press Turn off backlight Short press Back to menu Short press Short press Down Short press Enter sub-option Long press Invalid Operation... -
Page 23: Format
7. FORMAT Format 1 Format 2 KEY DEFINITION FOR 'FORMAT 1' Operation De nition Shutdown Long press for 2 seconds Short press Back to DVR recording Short press Invalid operation Left Short press Short press Right Short press Enter sub-option Long press Invalid Operation... -
Page 24: Installation
INSTALLATION TELESCOPIC BRACKET Telescopic bracket design, four xed support behind the machine started, alignment rearview mirror bracket can be fixed for each release, Models, simple installa on and easy disassembly P L C M D V R 5 2 www.PyleAudio .com HD DVR dual dash cam system FT screen Power input: D C 5V... - Page 25 BACKUP CAMERA SYSTEMS Angle Adjustable Camera Lens Located on the camera housing are 2 screws which lock the camera lens angle in position. The screws may be loosened to allow camera lens angle adjustment Loosen the screws, adjust the camera lens into the desired angle.
- Page 26 Model: PLCMDVR54 www.PyleUSA.com...
-
Page 27: System Message
SYSTEM MESSAGE No SD Card In video recording or camera mode, if the unit does not detect SD card, this picture and voice prompt will appear on screen. Insert SD card, the prompt will disappear and it can start recording or shootting photos. SD Card has no storage space In video recording or camera mode, if SD card has no storage space, this picture and voice prompt will appear on screen and...
