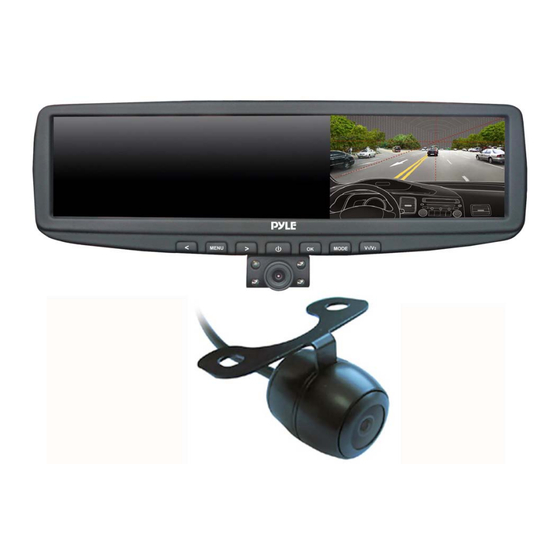

- Page 1 Mirror Mount Video Monitor/Recorder with Front and Rear View Night Cameras PLCMDVR5 www.pyleaudio.com Instruction Manual...
-
Page 2: Installation And Connection
Installation and Connection: 1. Please disconnect your car battery. 2. In the contents of your box there should be a wire harness that plugs into the male receiving connection cable of your mirror mounted monitor/camera. We are not going to plug it into to your monitor yet. There should be yellow, red, black & green wires coming from the small plastic square at the end of the wiring harness cable. - Page 3 However you decide to mount your camera please be sure that it has a clear field of vision to the rear of your car. 10. Now we will wire your rear view camera. Take the electric DC plug black wire with one red wire and one black wire sticking out of the end.
- Page 4 1. The mirror monitor buttons: Operating Instructions for your mirror mount monitor: Please be sure to insert SD card in the side of monitor before using. Press ON/Off to power the unit on and off. You can press V1/V2 to select between front and back cameras or view both at the same time.
- Page 5 While viewing pictures or videos press MENU to view DELETE option, Press OK twice to delete the photo or video file. Press MENU for two seconds when the camera is not recording and you will enter the options and settings menu. There will be four symbols &...
- Page 6 Setting function bright Changes your cameras ability to handle different lighting conditions, it is best set to automatic. exposal (exposure) Changes lenses exposure level color Changes your cameras color selection Screen Protector Shuts the viewing screen off after a set time IR_LED Turns LED night vision assistance off and on G_sensor...
- Page 7 date set Set the date and time recorded format Formats SD flash card memory (Erases) default set Resets all setting to the factory default Monitor: Built-in hidden screen : 4.3"TFT LCD monitor on or off High resolution : Resolution up to 1280*960 File format: H.264 MOV Still Image JPEG Video resolution: Dual 720p HD: 1280x1440 30fbs 8Mbps/ SD: 1280 x 480 30fbs 6Mbps Built-in wide angle lens: Diagonal view angle is 120 degrees.
- Page 8 Operating voltage: 12V Power consumption : 0.5A Supports: Windows 2000/XP/Vista/7/8 Mirror Mounted Monitor Dimension: 10.6" x 3.1" x 1.2" Camera: Rear View Camera with Optional Dual Flush/Universal Mount Brackets 420 Line Horizontal Resolution Built-in Distance Scale Line Low Lux Resolution: 420 TV Lines Viewing Angle: 170 Degree Auto White Balance Waterproof (Ip68), Fog Resistant...
