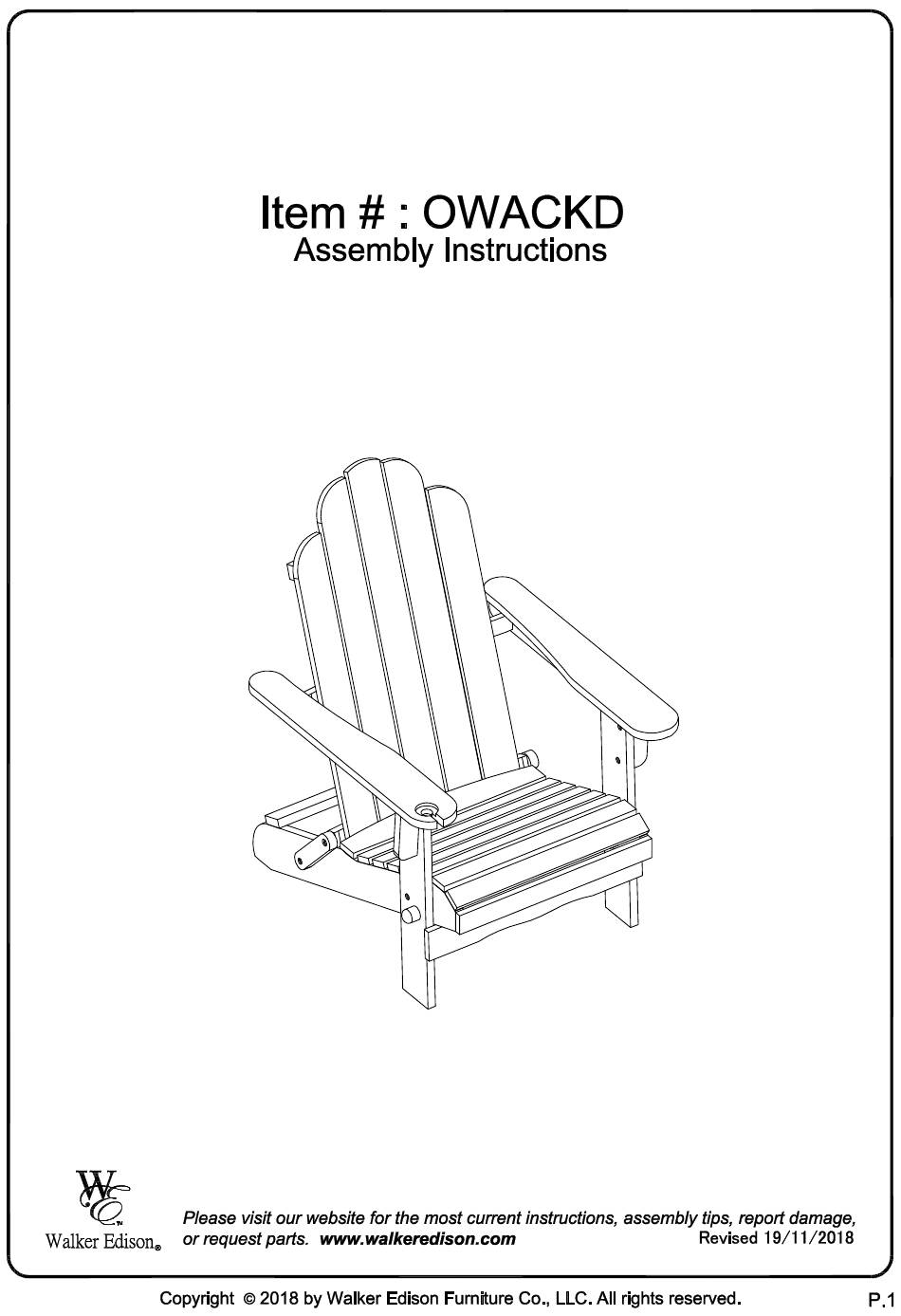

Summary of Contents for Walker Edison Sully OWACKD
- Page 4 Carefully and slowly pull the chair up in the direction marked, using Bolt (A) , Hex Key (H) to secure part (5) to part (2).
- Page 5 Fold down the chair and then insert nut (E) into the base of part (1). Then secure part (1) to part (2) using Hex Key (H) ,bolt (A), washer (F) and Nut (E).
- Page 6 Using Hex Key (H) to secure bolt (A) , nut (E), washer( F ) to part (3,4) .
- Page 7 Open part (1) and then secure part (1) to part (3,4) by using screwdriver (G) ,hex key (H) to secure bolt (B), nut(C), washer (D) .
- Page 8 Once Seat is fully pulled into upright position, place the wooden SAFETY PEG( 6) into the required holes. IMPORTANT! KEEP SAFETY PEGS IN PLACE WHEN CHAIR IS IN USE.
