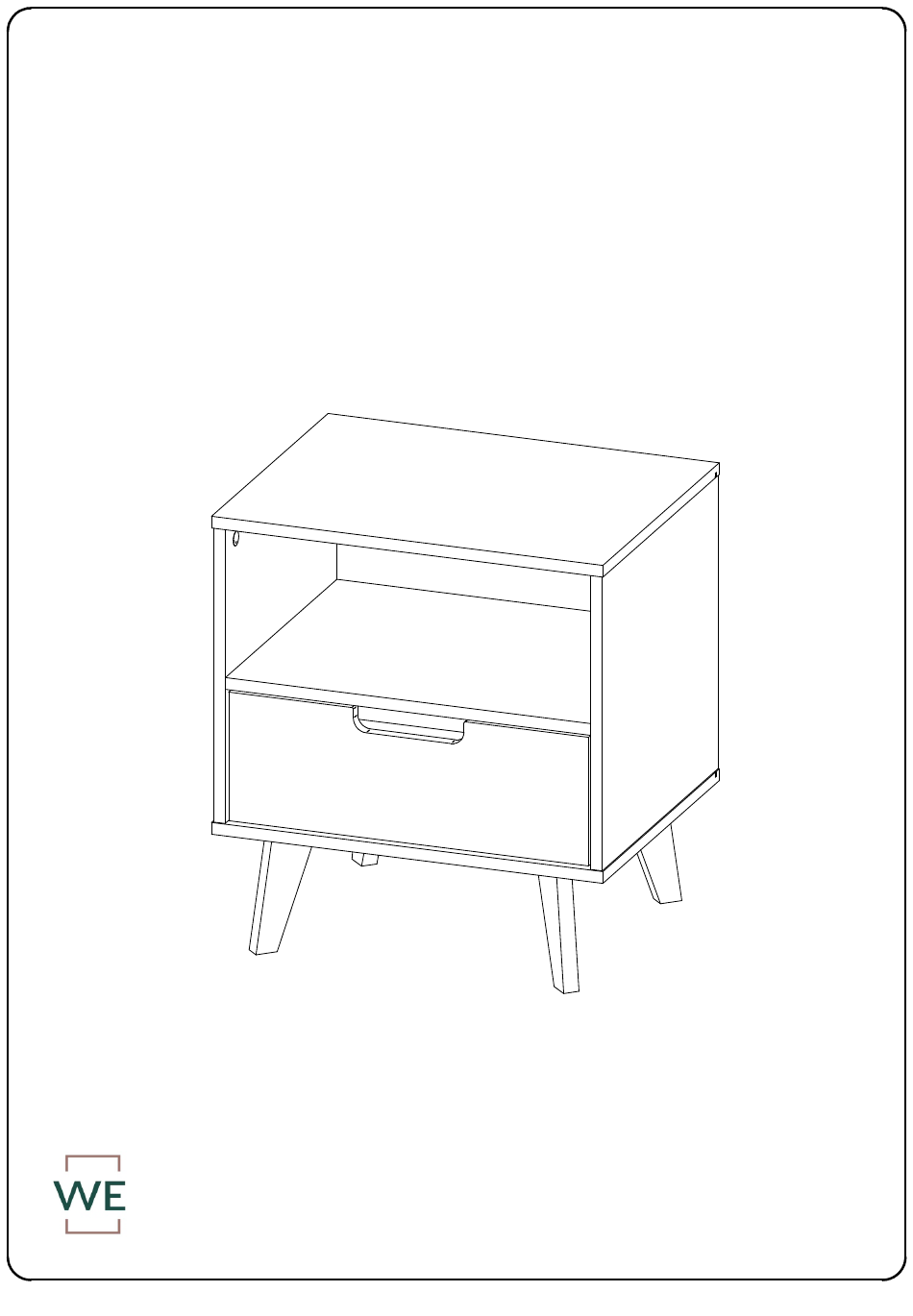

- Page 1 Item: HANB4C Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 04/2024 - V2 Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 2: General Assembly Guidelines
IV. The two main types of hardware used to assemble this product are: wood dowels and screws. V. A Phillips head screwdriver is required for the assembly of this product (not included) Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 3: Parts List
Part # Description Top Panel Bottom Panel Back Panel Shelf Right Side Panel Left Side Panel Foot Drawer Front Drawer Side Drawer Bottom Drawer Back Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 4: Hardware List
Hammer recommended for assembly (not included) for assembly (not included) The hardware quantities listed above are required f or proper assembly. Some extra hardware may also have been included. Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Step 1 Ø8x30 Insert wooden dowel (A) to parts (12,13,10) and insert cam bolt (B) to parts (1,12,13). Ø7x30mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Step 2 Ø5x40 Attach feet (14) to part (4) with screw (G). Step 3 300mm 300mm Attach Metal Slider (K1,L1) to parts (12,13) with Ø3,5x12mm screw (D). Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 7 Secure part (10) to part (12) using cam lock Ø15x10mm (C) as per diagram. Step 5 Secure parts (12,10) to part (13) using cam lock (C) as per diagram. Ø15x10mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 8 Step 6 Secure part (4) to parts (12,13) using screw (F) Ø3,5x40 Step 7 Slide back panel (9) into side panel (12,13). Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 9 Step 8 Secure part (1) to parts (12,13) using cam Ø15x10mm lock (C). Step 9 Ø3x16mm Secure back panel (9) using screw (E) and support (H). 14x14mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 10 First: Secure parts (16,16) to part (18) using cam lock (C). Second: Slide part (07) into grooves as per diagram. Third: Secure part (15) to parts (16,16) using cam lock (C). Ø15x10mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.10...
- Page 11 Step 12 Ø3,5x12mm 300mm Attach Metal Slider (K2,L2) to parts (16,16) with 300mm screw (D). Step 13 Place sticker (I) over holes as per diagram. Ø 19mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.11...
- Page 12 Step 14 Step 15 Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.12...
