Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.

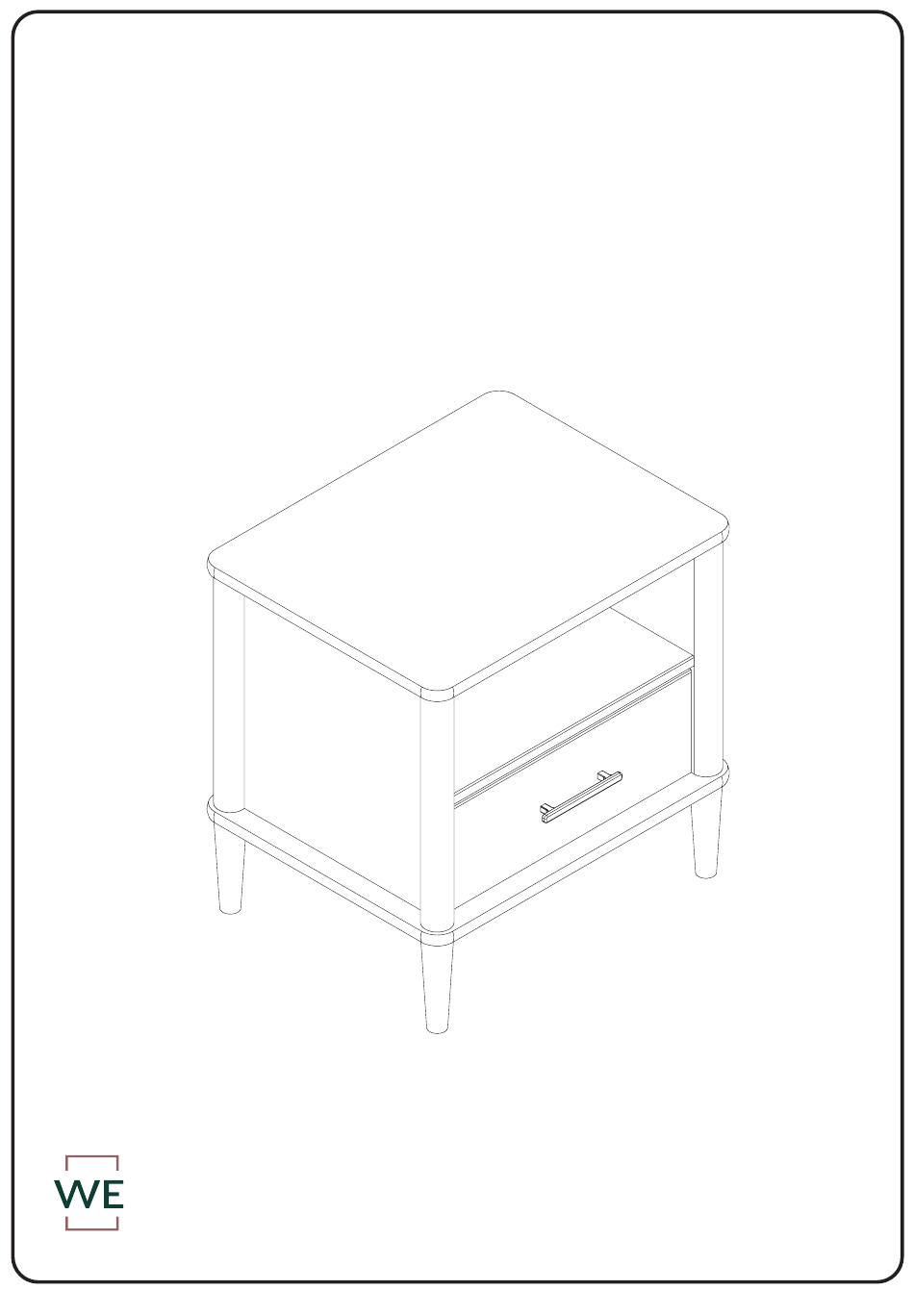

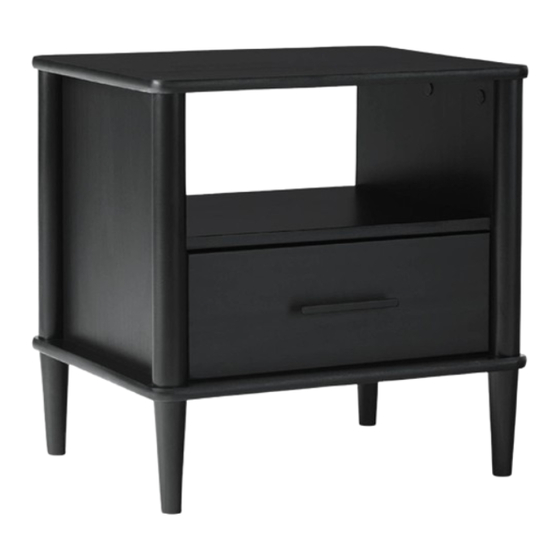

Item: SPNB4C
Assembly Instructions
Revised 02/2024 V2
P.1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison SPNB4C
Summary of Contents for Walker Edison SPNB4C
- Page 1 Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 02/2024 V2 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved. Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
- Page 2 A Phillips head screwdriver and hammer is required for the assembly of this product. VII. Maintenance Guide onto the wood) hen needed after that to keep the drawers sliding smoothly.
-
Page 3: Parts List
Parts List 01 pc 01 pc 01 pc 01 pc 01 pc 01 pc 01 pc 01 pc Bottom panel 01 pc 01 pc Shelf 04 pcs 04 pcS Side rail 01 pc 02 pcs... -
Page 4: Hardware List
Hardware List 02 pcs ø8*40mm 19 pcs ø8*30mm Screw 06 pcs ø4,0*40mm Screw 16 pcs ø3,5*30mm ø8*8mm Nail 06 pcs 16 pcs ø5,0*24mm Cam Bolt ø10*20mm 12 pcs Ø3/16x7/8 Screw 02 pcs ø4,0*25mm Screw 06 pcs 04 pcs ø7,0*50mm Screw 16 pcs Cam Lock ø15*12mm... - Page 5 Step 1 Insert wooden dowel (B) into parts 02, 03, 05. ø8*30mm Step 2 Insert wooden dowel (G) into parts 13 and 25. Attention to the dowel size: ø10*20mm ø10*20mm...
- Page 6 Step 3 Insert Cam Bolts (F) with a Phillips head screwdriver into parts 01, 02, 03. ø5,0*24mm Step 4 ø4*25mm Secure parts 25 to parts 02 and 03 with screw (I) and phillips head screwdriver.
- Page 7 Step 5 Secure parts 02 and 03 to parts 13. Insert screw (D) into parts 02, 03 and tighten with a Phillips head screwdriver. Bottom view ø3,5*30mm Step 6 Secure part 05 to part 02. Insert cam locks (K) into part 5 and tighten with a Phillips head screwdriver.
- Page 8 Step 7 Secure part 03 to part 05. Insert cam locks (K) and tighten with a Phillips head screwdriver. ø15*12mm Step 8 Secure part 01 to parts 02, 03. Insert cam locks (K) and tighten with a Phillips head screwdriver. ø15*12mm...
- Page 9 Step 9 Insert screw (J) into parts 04 and 06, secure the screw with hex key (L) while rotate the feet to attach to the unit. ø7,0*50mm Step 10 ø4,0*40mm Secure part 04 to parts 02, 03 with screw (C) and phillips head screwdriver.
- Page 10 Step 11 Insert part 07 into parts 13. Secure part 07 to part 05 with nail (E) and hammer. Name and address of the supplier and date of production. ø8*8mm Step 12 Insert wooden dowel (B) into parts 09, 10. Insert Cam Bolts (F) with a Phillips head screwdriver into part 08.
- Page 11 Step 13 ø15*12mm Secure parts 09 and 10 to part 08 using Cam Lock (K) and tighten with a Phillips head screwdriver. Step 14 Insert part 12 between parts 09 and 10. Secure part 12 to parts 09 and 10 with screw (D) and phillips head screwdriver.
- Page 12 Step 16 Insert wooden dowel (B) into part (25) with hammer. FRONT ø8*30mm Step 17 Insert wooden dowel (A) on the inside of all drawers, with the drawer inside the unit, after having passed the wood dowel that is in the drawer slide. ø8*40mm P.12...
- Page 13 Step 18 Insert cam lock cover (M) into cam lock (K) in the parts 02, 03. ø17mm P.13...
