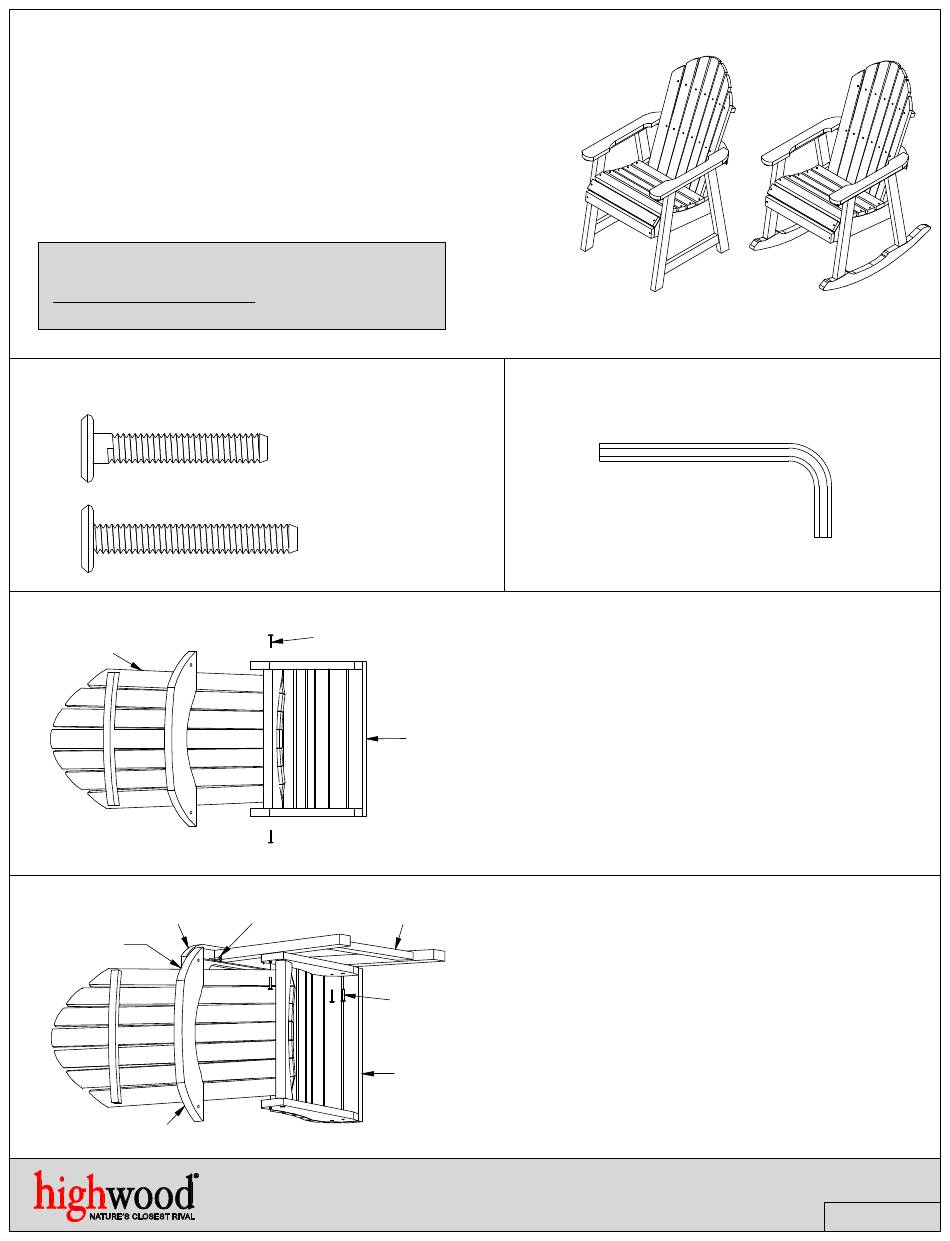

highwood Adirondack Hamilton AD-PORL3-RED Assembly Manual

Adirondack Collection
Hamilton Deck Chair
Hamilton Rocking Chair
Assembly Guide
IMPORTANT!
DO NOT fully tighten the bolts until all bolts are started.
Once all bolts are inserted, go back & tighten all the bolts.
HARDWARE INCLUDED
A
1/4"-20 x 1-1/2"
B
1/4"-20 x 1-3/4"
BACK
RIGHT ARM
Note: Arm goes on
Top of back Support
BACK SUPPORT
Qty: 8
Qty: 2
A
SEAT
B RIGHT LEG ASSEMBLY
A
SEAT
For information on Care and Cleaning or to Register your
highwood® product, please visit www.highwood-usa.com.
TOOLS INCLUDED
5/32" HEX KEY
1) Insert (1) "A" Bolt into Lower Hole on
Each Side to Attach Seat to Back. Make Sure
the Back is Fully Upright. Make Bolts Snug,
but Do Not Overtighten.
2) With the Chair Laying on its Left Side,
Attach the Right Leg Assembly to the Seat
using (3) "A" bolts.
3) Attach Right Arm to the Back Support
Using (1) "B" Bolt.
4 Flip Chair and Lay on Right Side. Repeat
for Left Leg Assembly.
AD-CHDA2|AD-RKCH6
08.17.2021
PAGE 1 OF 1
