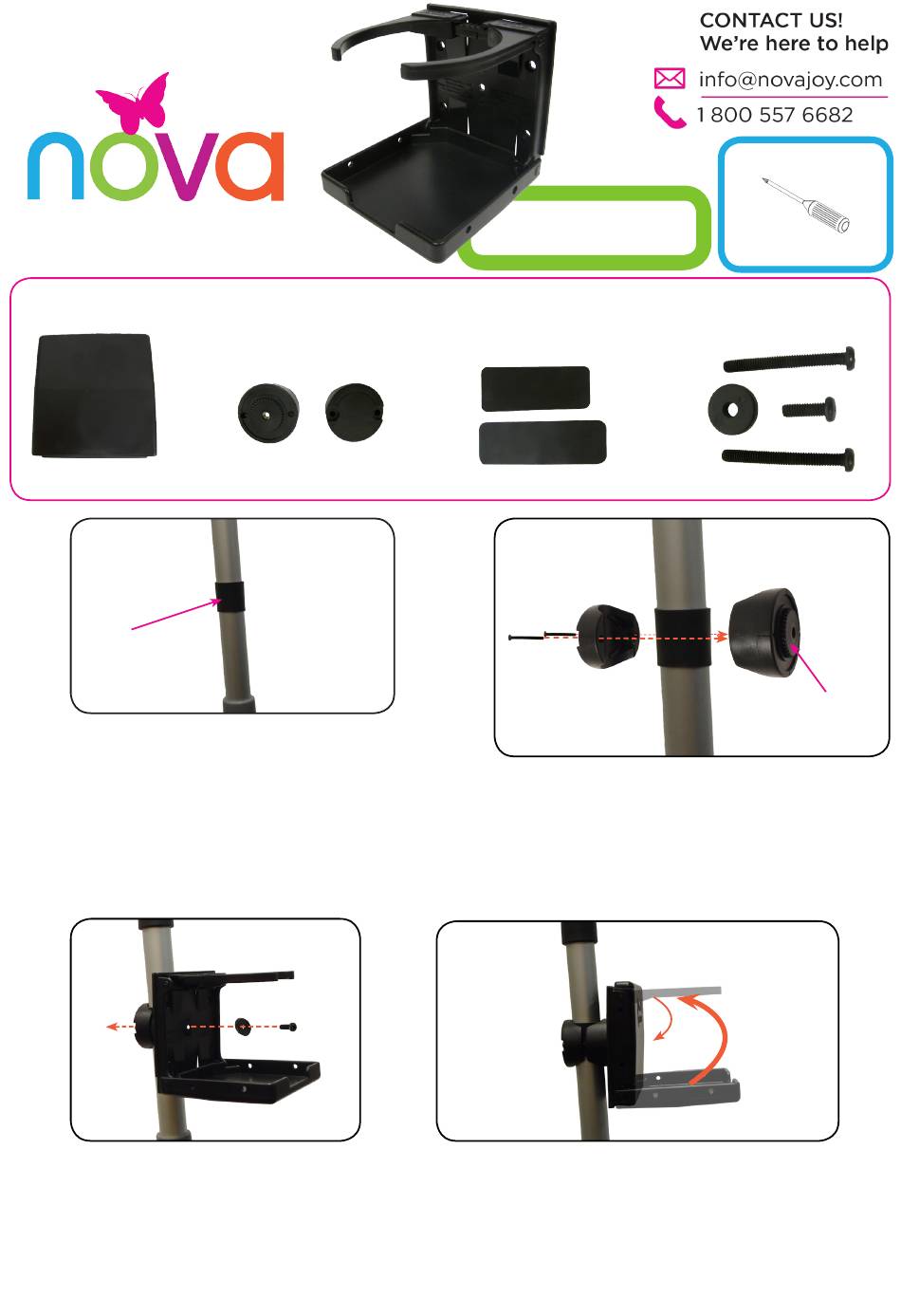

Nova CH-10000 How To Install

INSTALL YOUR
ADJUSTABLE DRINK HOLDER
Item # CH-1000
a.
rubber mat
1
Peel off adhesive on back of rubber
mat, and wrap around the location
where cup holder is to be installed
(Figure 1).
NOTE: For 1" tubing, use thin rubber
mat. For 7/8" tubing, use thick rubber
mat. For 3/4" tubing, use both thin
and thick rubber mat (cut away extra).
3
Attach folding cup holder on
inner plastic gear and ensure the
base of the cup holder is parallel
to the ground (rotate cup holder
to adjust along gear if needed).
Secure with washer and small
screw (Figure 3).
HOW TO
a. (1) Folding Cup Holder
b. (1) Assembly Mount Set
b.
Figure 1
Figure 3
Quick installation
WHAT'S IN THE BOX
c. (2) Assorted Rubber Mats
d. (1) Screw & Washer Set
c.
2
Figure 2
Place the assembly mount set around the
rubber mat to secure position. Ensure that
inner plastic gear of the mount faces the side
the cup holder will attach to (Figure 2). Insert
the two long screws through the back and
tighten.
4
Drink holder is designed to collapse down to
convenient size (Figure 4). Swing the clamps down,
and flip up the base to fold the drink holder.
Drink holder can be adjusted by sliding the two
clamps to the appropriate size.
TOOLS NEEDED
Philips Screwdriver
d.
inner plastic
gear
1
2
Figure 4
*Updated November 22, 2016
