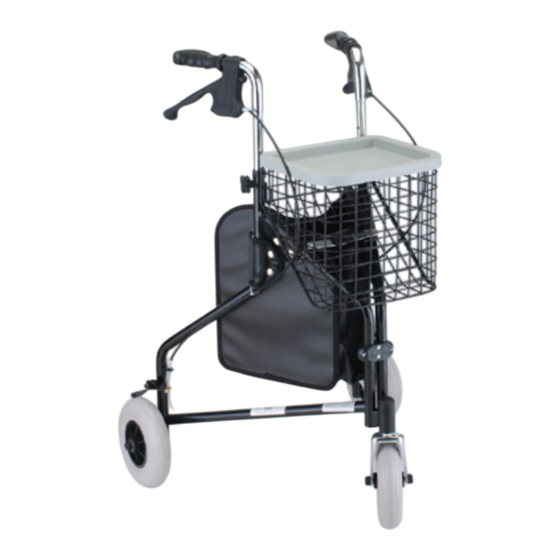

Traveler Rolling Walker
• DO NOT exceed 250 lb. weight capacity.
• Care should be taken to ensure that all height adjustment knobs, castors, or any other moving
objects are in good working order before operation.
• Periodically check handle height adjustment knobs to make sure they are secure.
• Always contact your physician or therapist before using to determine proper adjustment and usage.
• DO NOT use on stairs, escalators, moving sidewalks, or any uneven surfaces.
• DO NOT attempt to reach for items while seated on the walker. This motion may cause a change in
weight distribution and cause the rollator to tip or become unstable.
• Always distribute your weight evenly on both handles when walking
• The rollator bag/basket has a weight capacity of 10 lb. Items should not hang over the top or front of
the basket.
• Make sure walker frame is fully opened before use.
• Always check hand brakes to ensure that they are working properly
• DO NOT support your full body weight on the handles when attempting to sit down.
• DO NOT remove warning stickers.
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY OR RESULT IN DEATH.
Read this user guide before operating or using any NOVA rollator.
User guide and video available online at www.novajoy.com
User Guide
Safety Warning Instructions
MISUSE OF THE WALKER MAY VOID WARRANTY.
Revised: September 18, 2018
Model: 4900
Advertisement
Related Manuals for Nova 4900
Summary of Contents for Nova 4900
- Page 1 • Always check hand brakes to ensure that they are working properly • DO NOT support your full body weight on the handles when attempting to sit down. • DO NOT remove warning stickers. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY OR RESULT IN DEATH. MISUSE OF THE WALKER MAY VOID WARRANTY. Read this user guide before operating or using any NOVA rollator. User guide and video available online at www.novajoy.com Revised: September 18, 2018...
- Page 2 Assembly Instructions Step 1: Carefully remove the walker from the plastic bag and place on the floor. Step 2: Remove all protective packaging pieces from handles. Step 3: Open the walker up by grabbing the frame above the rear wheels and pulling apart (image 1). Step 4: Push down on the black hinge joint with caution markings until the frame is in the full open and locked position (image 2). Step 5: Insert the handles into the frame (image 3). Step 6: Adjust the handles to your desired user height (see “Determine Correct Handle Height” on pg 3). Step 7: Once you have determined the correct height, insert the screw into the hex screw cut out on the inside of the frame and through the handle. Make sure that the hex screw head fits into the hex cut-out on the frame (image 4). Step 8: Hand-tighten the black star adjustment knob until it is flush with the frame (image 5). image 3 image 2 image 1...
- Page 3 Attaching the Basket and Tray Step 1: Position the basket between the cables and above the hooks located on the frame in front of the handles Step 2: Slowly lower the basket until the hooks engage into the corner squares on the diagonal slope. The folding hinge piece will fit inside of the large cut out on the diagonal slope if the basket is place correctly (image 8). Step 3: Place the tray on top of the basket and push down until secure. Step 4: Your walker is now completely assembled (image 9). image 8 image 9 How to Open Step 1: Push apart the frame or handles (image 10). Step 2: Push down on the black hinge piece with caution markings until the frame is in the full open and locked position (image 11). image 10 image 11 How to Fold Step 1: Remove the basket if attached.
- Page 4 How to Use Hand Brakes To lock the brake Step 1: Push down on the knob located at the rear of the hand brake handles (image 14). Step 2: The handle will lock into a downward position when properly engaged. To release the brake Slowly pull up on the hand brake handle. image 14 How to Adjust the Hand Brakes The following information is designed to assist you with the adjustment of your NOVA Feather Touch Handbrake System. NOTE: The braking system on your new NOVA walker has been preset from the factory. To maintain this preset position, be sure that the tension adjustment screw locking nuts are tight against the housing and the rear wheels (image 14). Mounting Cable End Screw If you are still having difficulty with your brakes, you can adjust Tension...
-
Page 5: Warranty
This warranty does not cover problems due to user negligence, misuse of the product, failure to adhere to product instructions, or normal wear and tear. Items that have been subject to negligent abuse, modified without prior written authorization are not covered within this warranty. For warranty service, please contact the dealer from whom you purchased your NOVA product. In the event that you do not receive satisfactory service, please call us directly at the number below. Be prepared to indicate, the nature of the defect, the product serial number, and the name and location of where you purchased the product. You will also be required to provide a receipt of your purchase. DO NOT return any products to our office without prior consent. Repair or replacement is the only remedy under this limited warranty. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of product. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, IMPLIED WARRANTIES, IF ANY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NOVA SHALL NOT BE LIABLE FOR ANY SEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. ***Remember to keep the product’s serial number and the date of purchase*** 1470 Beachey Place, Carson, CA 90746 Connect with us! novajoy.com novamedicalprod novamedicalprod novawalkerstalk NOVA Medical Products...
