Nova CH-1101 How To Assemble

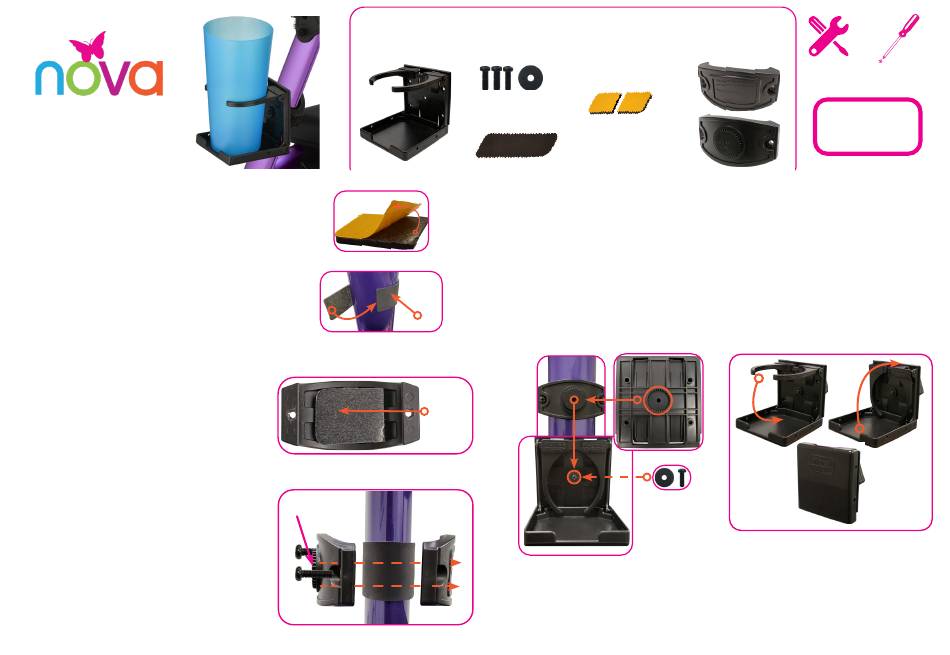

HOW TO ASSEMBLE YOUR
FOLDING CUP HOLDER
Item # CH-1101
1
Determine on which side, left
or right, the cup holder will be
installed on the Express rollator.
Peel off the yellow strip from the
long rubber mat (c.) (Figure 1),
and wrap around the location
where cup holder is to be installed
(Figure 2).
EXPRESS Model
4328
Note: The 2 shorter rubber mats (d)
are for the STAR rollators only. Place
a rubber mat on the center of each
mounting bracket (Figure 3).
STAR Model Series
4262/4263/4276/4278/4279/
4286/4288/4289
2
Place the mounting brackets
around the rubber mat to
secure the position. Ensure that
the inner plastic gear of the
mount faces the side the cup
holder will attach to (Figure 4).
Insert two screws through the
mounting bracket and tighten
with a phillips screw driver.
NO POWER TOOLS.

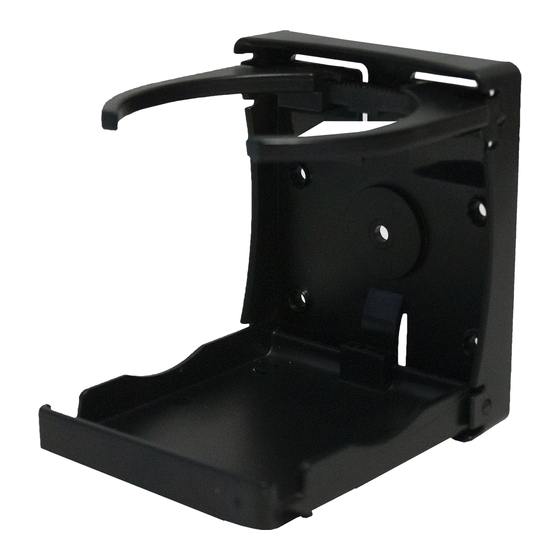

a. (1) Cup Holder
b. (1) Hardware d. (2) Short Rubber Mats for Star Rollators
b.
a.
c.
Figure 1
Figure 2
Rubber
Mats
Rubber
Mats
Figure 3
Inner Plastic
Figure 4
Gear
*Revised May 14, 2020
WHAT'S INCLUDED
c. (1) Long Rubber Mats for Express Rollator
d.
3
Attach folding cup holder
on the inner plastic gear
and ensure the base of
the cup holder is parallel
to the ground (rotate cup
holder to adjust along
gear if needed). Secure
with washer and small
screw (Figure 5).
Figure 5
e. (2) Mounting
Brackets
Quick & Easy
Assembly
e.
Follow these
SIMPLE STEPS
4
Drink holder is designed
to collapse down to
convenient size (Figure 6).
Swing the clamps down,
and flip up the base to fold
the drink holder.
Drink holder can be
adjusted by sliding the two
clamps to the appropriate
size.
Figure 6
Requires Phililps
Screwdriver
