Summary of Contents for Nova 4216

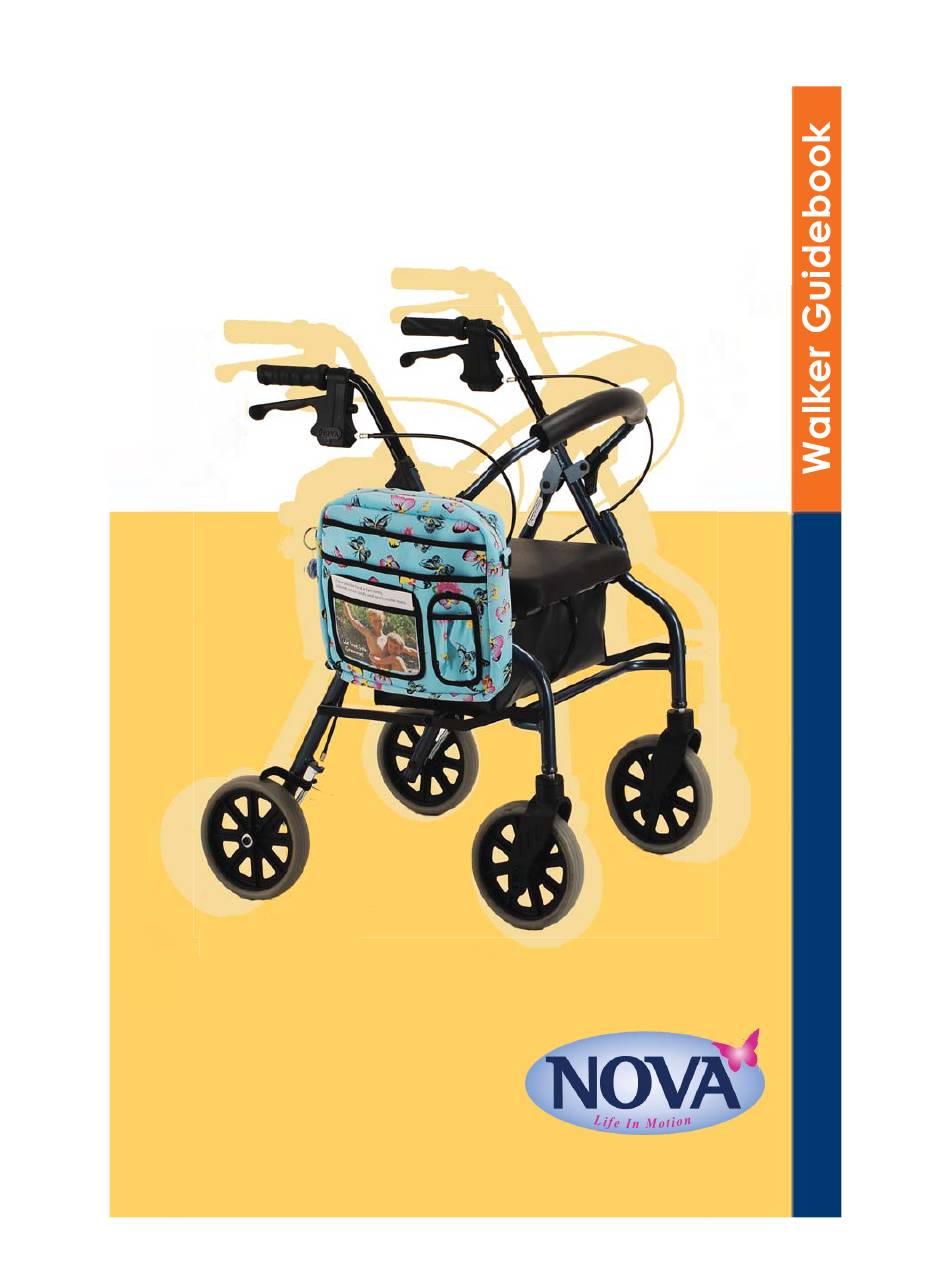

- Page 1 walk with independence Lightweight Lightweight Lightweight ‡ ‡ ‡ 6WDEOH ‡ 0DQHXYHUDEOH ‡ )ROGV (DVLO\ ‡ µ)HDWKHU 7RXFKµ +DQG %UDNHV 1RYD2UWKR0HGFRP )RU DOO 1RYD 5ROOLQJ :DONHU 0RGHOV...
- Page 2 Walker Guide 07 5/7/07 8:41 AM Page 2 WARNING Failure to follow any or all safety instructions may result in serious injury or death. adjustment and usage yourself or ambulate in any way while seated. entire weight of the user cause a change in weight distribution and cause the rollator to tip or become unstable top or front of the basket.
- Page 3 Page 3 20° – 30° Hip Joint To Remove or Replace Back Models (4202,4214,4215,4216): Patented Easy-to-Remove Back allows four-wheel models to fold compactly. 1. To release back, simply pull and turn knob (see photo). 2. After both knobs have seen set to release, pull up on the backrest to remove.
- Page 4 The following information is designed to assist you with the adjustment of your Nova Feather Touch Hand Brake System. NOTE: The braking system on your new Nova walker has been preset from the factory. To maintain this preset position, be sure that the tension adjustment screw locking nuts (see Fig.
- Page 5 4. Slide both handles into the tubular frame to your desired height (see “how to walk with a walker” section) Models: (4216) 5. Insert the height adjustment screws from the inside of the frame through the handle until the threads are exposed on the outside of the frame.
- Page 6 8:41 AM Page 6 To Open Models: (4202, 4207, 4203, 4208, 4212, 4214, 4215, 4216) 1. Hold both handles and squeeze up on the brakes 2. Hold the walker upright and rest it on the rear wheels 3. Push forward and allow the walker to rest on all four wheels 4.
- Page 7 Walker Guide 07 5/7/07 8:41 AM Page 7 Accessories Deluxe Cup Holder Hanging Walker Pouch Fits all folding and 4200 series walkers Attaches easily to all rolling walkers Adjust to hold different size items Velcros to backrest of 4200 series Folds up when not in use Extra Storage for lightweight items Item #CH-1000...
-
Page 8: Lifetime Limited Warranty
If within the specified warranty period, this product is proven to be defective, it will be repaired or replaced at Nova O.M. ’ s option. This warranty does not cover shipping costs incurred in replacement or repair of this product. - Page 9 WARNING THIS IS A WALKING AID ONLY AND IS NOT TO BE USED AS A TRANSPORTATION DEVICE. WEIGHT CAPACITY 300 LBS...
