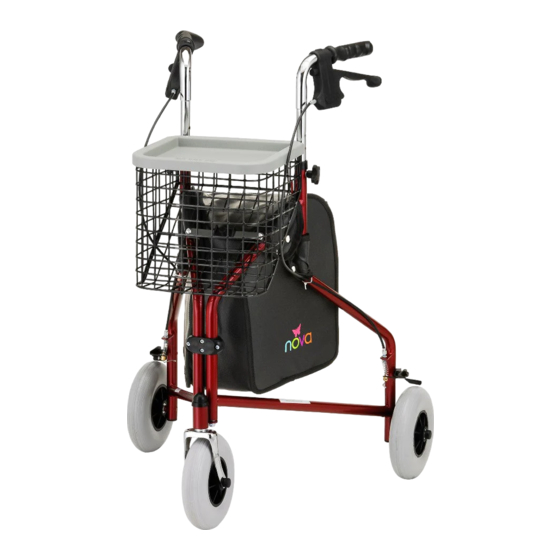

"Traveler" 3 Wheel Rolling Walker
Specifi cations
Weight Capacity
Weight
Wheel Size
Height Adjustment
Width Between Handles
Approximate User Height
Bag Dimensions
Basket Dimensions
Tray Dimensions
Overall Dimensions
Overall Dimensions (Folded)
4900 Series
User Guide
250 lbs.
15 lbs.
8"
30.25" -35.25"
12"
5'4" - 6'2"
12"W x 9.5"D x 13"L
10"W x 9"D x 9.5"L
9.25"W x 8"D
25"W x 24"D
27"L x 11"W x 26.5"D
Features
• Lightweight aluminum frame weighs
only 15 lbs.
• Large 8" wheels provide increased
maneuverability
• Locking hand brakes
• Tray, basket, and pouch
• Foldable
• Limited Lifetime Warranty
Advertisement
Table of Contents
Related Manuals for Nova Traveler 4900 Series
Summary of Contents for Nova Traveler 4900 Series
- Page 1 4900 Series “Traveler” 3 Wheel Rolling Walker User Guide Specifi cations Weight Capacity 250 lbs. Weight 15 lbs. Wheel Size 8” Features Height Adjustment 30.25” -35.25” Width Between Handles 12” • Lightweight aluminum frame weighs only 15 lbs. Approximate User Height 5’4”...
-
Page 2: Safety Warnings
Safety Warnings • Read walker guidebook before operating or using any Nova rollator. • DO NOT exceed weight 250lb weight capacity. • Care should be taken to ensure that all height adjustment knobs, castors, or any other moving objects are in good working order before operating. -
Page 3: How To Open
Attaching the Bag Step 1: Place the bag between the legs of the walker so that the narrow closed end is facing forward. Step 2: Place the left side top fl ap over the frame just above the folding hinge support piece and snap both buttons in place. - Page 4 Brake System. NOTE: The braking system on your new Nova walker has been preset from the factory. To maintain this preset position, be sure that the tension adjustment screw locking nuts are tight against the housing and the rear wheels (see image 15).
-
Page 5: Limited Lifetime Warranty
Nova extends this warranty only to the original purchaser of this product. The warranty does not extend to any subsequent purchaser or owner. The warranty is void upon any sale or transfer of ownership or use by other person.
