HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
assembly is required. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A
(4) Allen Bolts M6 x 56mm
B
(8) Allen Bolts M6 x 30mm
C
(1) Allen Wrench
D
(12) Hex Nuts
E
(24) Flat Washers
F
(1) Hex Wrench
STEP 1
Begin assembly by examining all pieces to ensure they have not been damaged during shipping.
Insert each Support Pole (K) into ONE Bed Frame (G) by sliding in place and inserting the end
into the open hole on the inside of the frame. Once in place carefully guide the REMAINING Bed
Frame (G) in place by sliding each pole in place. See next page for more assembly instructions.

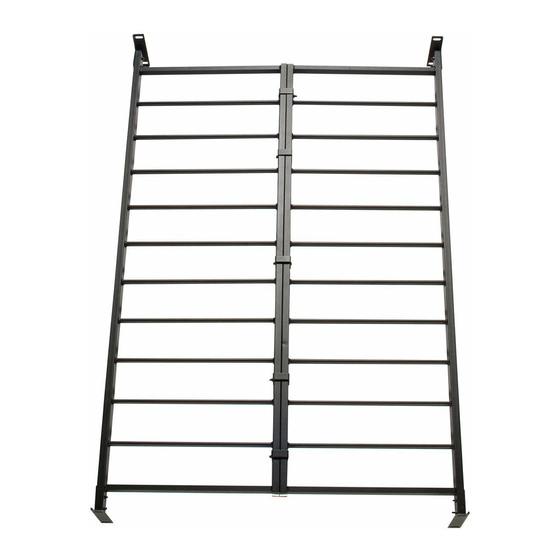

SUSPENSION DECK
PARTS LIST
G
(2) Bed Frames
H
(4) Connectors
J
(4) Frame Plates
K
(4) Support Poles
G
K
Model #90008
A
D
E
K
K
Date:
12/11/09
Page 1 of 2
B
C
F
K
Advertisement
Table of Contents
Related Manuals for Hillsdale Furniture 90008
Summary of Contents for Hillsdale Furniture 90008
- Page 1 12/11/09 SUSPENSION DECK Page 1 of 2 Model #90008 FURNITURE, LLC. Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
- Page 2 Date: HILLSDALE 12/11/09 SUSPENSION DECK Page 2 of 2 Model #90008 FURNITURE, LLC. This illustration shows the frame upside down. STEP 2 Secure each Bed Frame (G) together using the 4 Connectors (H). Fit together and secure in place with 1 Allen Bolt (A), 1 Flat Washer (E), on the other side 1 Flat Washer (E) & 1 Hex Nut (D).
