curt 13028 Manual

For 88-91 chevy/gmc 4 dr crew cab only, 73-79 ford 250 crew cab, 73-06 chevy/gmc full size cab & chassis w 34" frame, 73-06 ford pickup: cab and chassis 34" frame width, 62-87 chevy/gmc all full size: except 10" bumper

Advertisement

Quick Links

13028 / RRH13028
5/21/2020
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
Parts List
ITEM
QTY
PART NUMBER
1
6
10-10288
2
6
20-00062
3
12
CM-SP1
DRIVER SIDE
FRAME RAIL
36
HITCH WEIGHT:
LBS.
45
INSTALL TIME:
MINUTES
INSTALL NOTES:
-REMOVE SPARE TIRE
-DRILLING REQUIRED
-RE-INSTALL SPARE TIRE
INSTALLATION STEPS

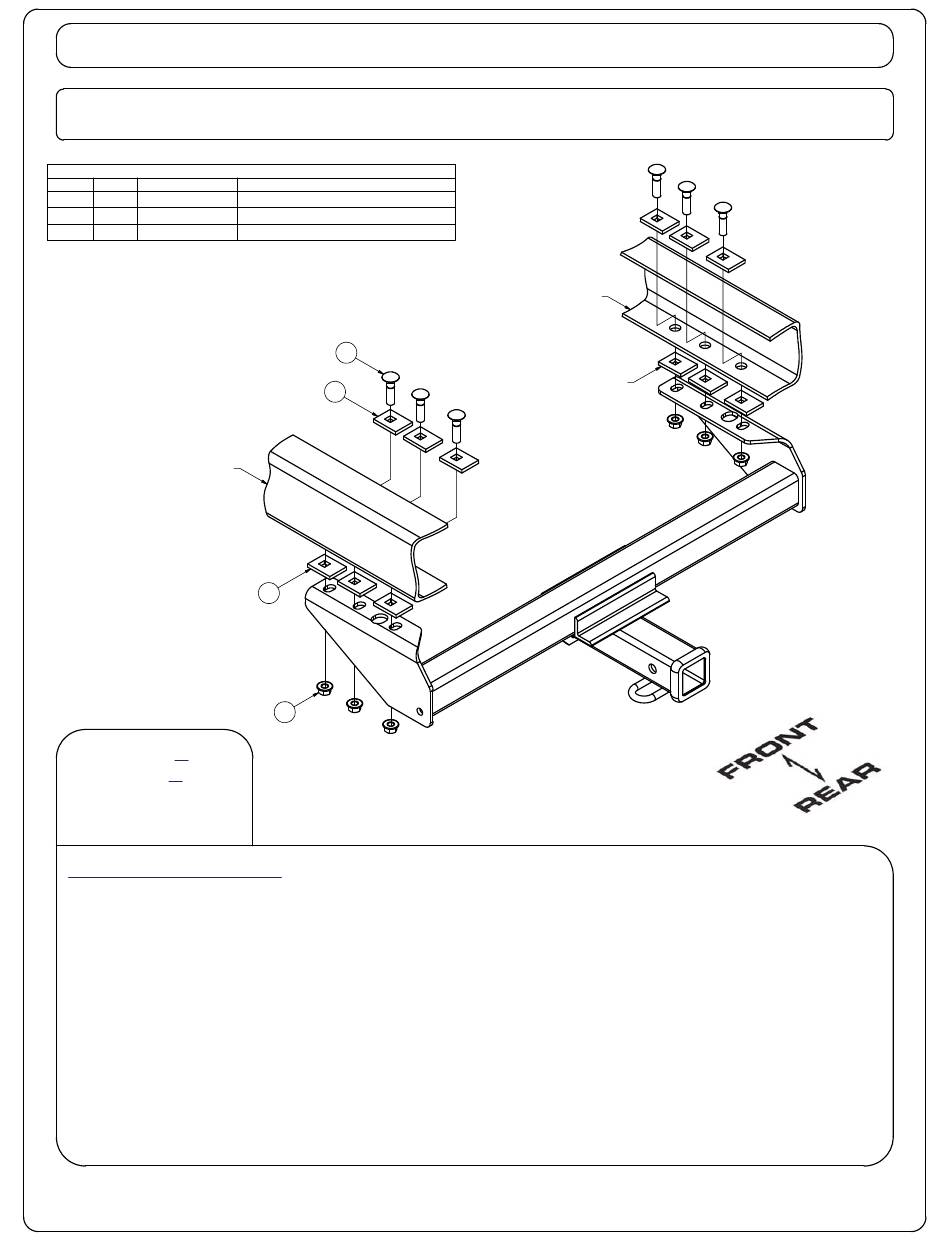

1) Remove spare tire and rear bolt on tire holder. Clean mounting surface as needed.
2) Place spacers between hitch and frame as shown (clamp hitch into position). Using the hitch as a template,
mark and drill 1/2" mounting holes. Make sure wires and hoses will not be damaged when drilling.
NOTE: hitch must be positioned so end of receiver tube is flush with back of vehicle.
3) Install fasteners as shown above, and remove clamps.
4) Torque all 1/2" fasteners to 110 lb-ft.
5) Re-install spare tire and removed hardware if possible.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
88-91 CHEVY/GMC 4 DR CREW CAB ONLY
73-06 CHEVY/GMC FULL SIZE CAB & CHASSIS w 34" FRAME
62-87 CHEVY/GMC ALL FULL SIZE: except 10" bumper
DESCRIPTION
BOLT,CAR,1/2-13 UNC,2,GRD8,YZ
NUT, SER-FLANGE,1/2-13 UNC,GRD8,YZ
.250 x 1.50 x 2.00" SQUARE HOLE SPACER
1
3
3
2
73-79 FORD 250 CREW CAB
73-06 FORD PICKUP: CAB AND CHASSIS 34" frame width
6,000
LBS. TRAILER WEIGHT &
10,000
LBS. TRAILER WEIGHT &
PASSENGER SIDE
FRAME RAIL
USE SPACERS WHEN
NEEDED TO LEVEL HITCH
600
LBS. TONGUE WEIGHT.
1,000
LBS. TONGUE WEIGHT
