curt 13019 Manual

FORD RANGER & MAZDA B2300, B3000, B4000
13019
9/08/2009
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
Parts List
ITEM QTY PART NUMBER
1 6 CM-SP1 .250 x 1.50 x 2.00" SQUARE HOLE SPACER
4
2 HFN 1213 HEX FLANGE NUT
3 4 1/2-13 x 1 3/4 CARRIAGE BOLT
1997 and Prior Models
Note: 19mm open end style wrench
must be purchased to allow removal of
spare tire after hitch installation
HITCH WEIGHT: 31 LBS.
INSTALL TIME
30
PROFESSIONAL: MINUTES
NOVICE (DIY): 60 MINUTES
INSTALL NOTES:
- DRILLING REQUIRED
INSTALLATION STEPS
NOTE: Relocation of spare tire bracket is NOT required.
1) For vehicles with step bumper, remove rearmost bumper bracket bolts and J-Nuts (both sides).

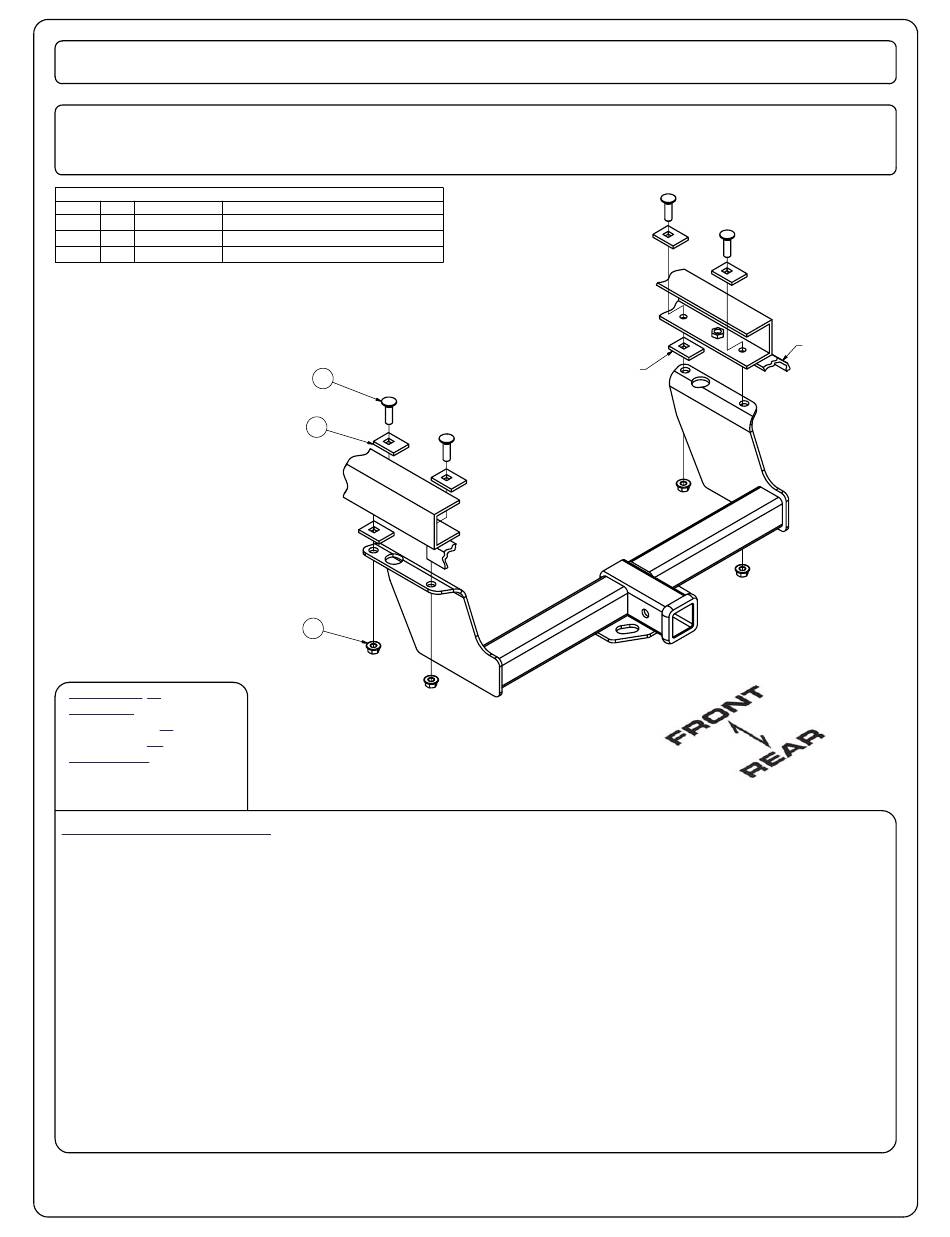

2) Position hitch on vehicle, sandwiching the bumper brackets (if present) between the hitch and the vehicle
frame, install rearmost fasteners.
3) Using hitch as a template, drill two (2) 1/2" holes into frame at forward end of hitch.
NOTE: On some models, the holes may already exist.
4) Install remaining fasteners as shown. For vehicles with step bumper, place a square hole spacer between
frame and side brackets at forward attachment.
5) Torque 1/2 fasteners to 75 lb-ft.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
75082/RRH13019
DESCRIPTION
3
1
2
4,000 LBS. TRAILER WEIGHT &
6,000 LBS. TRAILER WEIGHT &
1-800-798-0813
Place between frame and
hitch if vehicle is equipped
with a step bumper
400 LBS. TONGUE WEIGHT.
LBS. TONGUE WEIGHT
600
BUMPER BRACKET
