Installation, operating and maintenance instructions
English
AL...D.U F3 CFG
Example configuration shown
CONTENTS
FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.
IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.
GENERAL SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.
ADHERE TO THE FOLLOWING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.
PRODUCT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.
DELIVERY CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6.
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7.
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8.
TRANSPORT AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9.
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10.
ELECTRICAL CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
11.
COMMISSIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
12.
MAINTENANCE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
13.
LIFETIME AND DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
14.
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
15.
ruck Ventilatoren GmbH
Max-Planck-Str. 5
D-97944 Boxberg-Windischbuch
Tel.
+49 (0)7930 9211-300
Fax
+49 (0)7930 9211-166
info@ruck.eu
www.ruck.eu

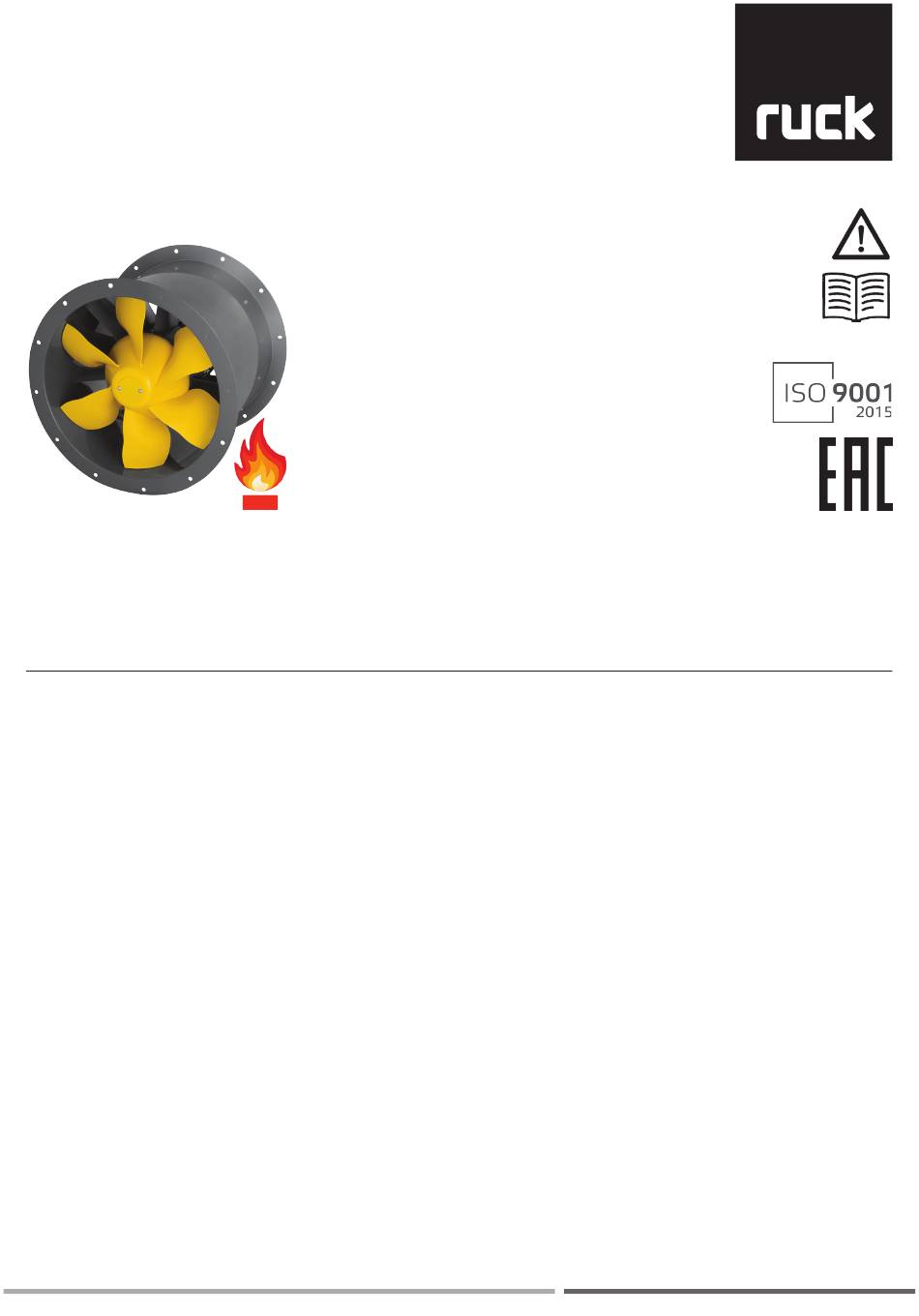

Axial fan
F300
The original instructions were created in the German language.
Made in EU
Information updated
print 22.05.2024
Subject to change
Advertisement
Table of Contents
Related Manuals for Ruck Ventilatoren AL D.U F3 CFG Series
Summary of Contents for Ruck Ventilatoren AL D.U F3 CFG Series
-
Page 1: Table Of Contents
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 ruck Ventilatoren GmbH Max-Planck-Str. -
Page 2: Foreword
FOREWORD Dear customers, Thank you for choosing our device. Before operating the unit, please read carefully these installation, operating and maintenance instructions. If you have any ques- tions, please contact: (Contact details see page 1) The data provided in these installation, operating and maintenance instructions are for the product description only. A statement about a certain condition or a suitability for a certain application cannot be derived from our information. -
Page 3: General Safety Instructions
■ Improper use ■ Improper mounting, commissioning, operation and maintenance ■ Operating the device with defective and / or non-functional safety and protective devices ■ Failure to observe the instructions regarding transportation, installation, operation and maintenance ■ Unauthorized structural changes to the device ■... -
Page 4: Safety Instructions In This Manual
3.4. Safety instructions in this manual In this manual, there are safety instructions before the steps whenever there is a danger of personal injury or damage to the equip- ment. The measures described to avoid these hazards must be observed. Safety sign (warning Consequence triangle) -
Page 5: Adhere To The Following Instructions
ADHERE TO THE FOLLOWING INSTRUCTIONS 4.1. General instructions ■ Persons who assemble, operate, disassemble or maintain our devices must not be under the influence of alcohol, drugs or phar- maceuticals that may affect perception and responsiveness. ■ Responsibilities for the operation, maintenance and regulation of the product should be clearly determined and observed so that there can be no unclear areas of responsibility with regard to safety. -
Page 6: Delivery Contents
5.1. Permissible conveying medium temperatures Series perm. temperature / time in smoke extraction perm. temperature in continuous operation ■ AL...D.F3 +300°C / 120 min -20 °C up to + 60 °C 5.2 Certification The testing and factory certification required by EN 12101-3:2015 was carried out at the LGAI Technological Center, S.A. (APPLUS). Certificate Number: 0370-CPR-6851 To find under: www.appluslaboratories.com 5.3. -
Page 7: Technical Data
TECHNICAL DATA Product name °C °C AL 315 D42U F3 01 CFG 171090 400V 3~YY 1063 1,96 162332 21,9 AL 315 D42U F3 02 CFG 170500 400V 3~YY 1007 1,87 162332 22,9 AL 355 D42U F3 01 CFG 170370 400V 3~YY 1363 162332 20,8... - Page 8 Product name YY/Y f YY/Y f YY/Y f YY/Y f YY/Y f YY/Y f YY/Y f 10° 15° 20° 25° 30° 35° 40° 1,41 / 1,79 / 1,54 / 1,81 / 1,62 / 1,87 / AL 315 D42U F3 01 CFG 171090 0,31 0,34...
-
Page 9: Dimensions
DIMENSIONS AL...D.U F3 CFG Ø D Ø C Ø A Product name Item number 8 x Ø10 AL 315 D42U F3 01 CFG 171090 8 x Ø10 AL 315 D42U F3 02 CFG 170500 8 x Ø10 AL 355 D42U F3 01 CFG 170370 8 x Ø10 AL 355 D42U F3 02 CFG... -
Page 10: Transport And Storage
TRANSPORT AND STORAGE Transport and storage should only be performed by specialist personnel in accordance with the assembly and operating manual and regulations in force. The following points should be noted and followed: ■ Check the delivery according to the delivery note to ensure it is complete and correct and check for any damage. Any missing quantities or damage incurred during transport should be confirmed by the carrier. -
Page 11: Assembly
Transport of the device on a pallet: ■ Release screws (1) ■ Final assembly of the device depending on the location (see installation!) 10. ASSEMBLY Assembly work may only be performed by specialist personnel in accordance with the installation and operating manual and the regulations and standards in force. - Page 12 10.1. Assembly with accessories SG-W Protection grille Inlet cone RAS F4 flexible tube connection piece GS 08 F4 Device switch Mounting foot Vibration element Connection tube RVK F4 Tube damper, automatic for vertical mounting RVK-H F4 Tube damper, automatic for horizontal mounting Tube flange Crossbeam | AL...D.U F3 CFG...
-
Page 13: Electrical Connection
11. ELECTRICAL CONNECTION • Electricity warning (hazardous voltage)! » Failure to observe the hazard may result in death, injury or damage to property. → Before performing any work on conductive parts, always disconnect the unit completely from the elec- tricity supply and make sure that it cannot be switched back on again. The electrical installation may only be carried out by qualified electricians in compliance with the installation, operating and mainte- nance instructions and the applicable national regulations, standards and guidelines: ■... -
Page 14: Thermal Motor Protection
11.3. Thermal motor protection During operation, electric motors heat up. Under certain circumstances (excessively high ambient or fluid temperatures, heavy contamination, etc.), the motor temperature may exceed the safety limit of the electrically isolated parts. In order to avoid engine damage, various types of temperature monitoring are possible, of which at least one must be installed on site: ■... -
Page 15: Maintenance And Cleaning
13. MAINTENANCE AND CLEANING Servicing, troubleshooting and cleaning may only be performed by specialised personnel in accordance with this installation and operating manual and the regulations in force. ■ Make sure that no connections or components are loosened unless the device is disconnected from the mains. Make sure that the equipment cannot be switched back on again. -
Page 16: Lifetime And Disposal
13.2. Impeller installation with Taperlock clamping bush The impeller is connected by means of the clamping bush to the shaft end of the drive motor. Assembly 1. Clean all bare surfaces (mating surfaces of the clamping bushings and motor shaft). 2. -
Page 17: Decommissioning And Disposal
14.2. Decommissioning and disposal When disassembling, parts under voltage are exposed, which can lead to electric shock when touched. Before dismantling, disconnect the fan from all poles of the mains and secure against being switched on again! Parts and components of the device that have reached their lifetime, e.g. due to wear, corrosion, mechanical stress, fatigue and/ or all other, not directly recognizable effects, must be disposed of professionally and properly after disassembly in accordance with national and international laws and regulations. - Page 18 Ventilatoren GmbH Max-Planck-Str. 5 D-97944 Boxberg-Windischbuch Tel. +49 (0)7930 9211-300 +49 (0)7930 9211-166 info@ruck.eu www.ruck.eu Information updated print 22.05.2024 maxf3_pb_01c_k10001_en We reserve the right to make changes Language: English...
