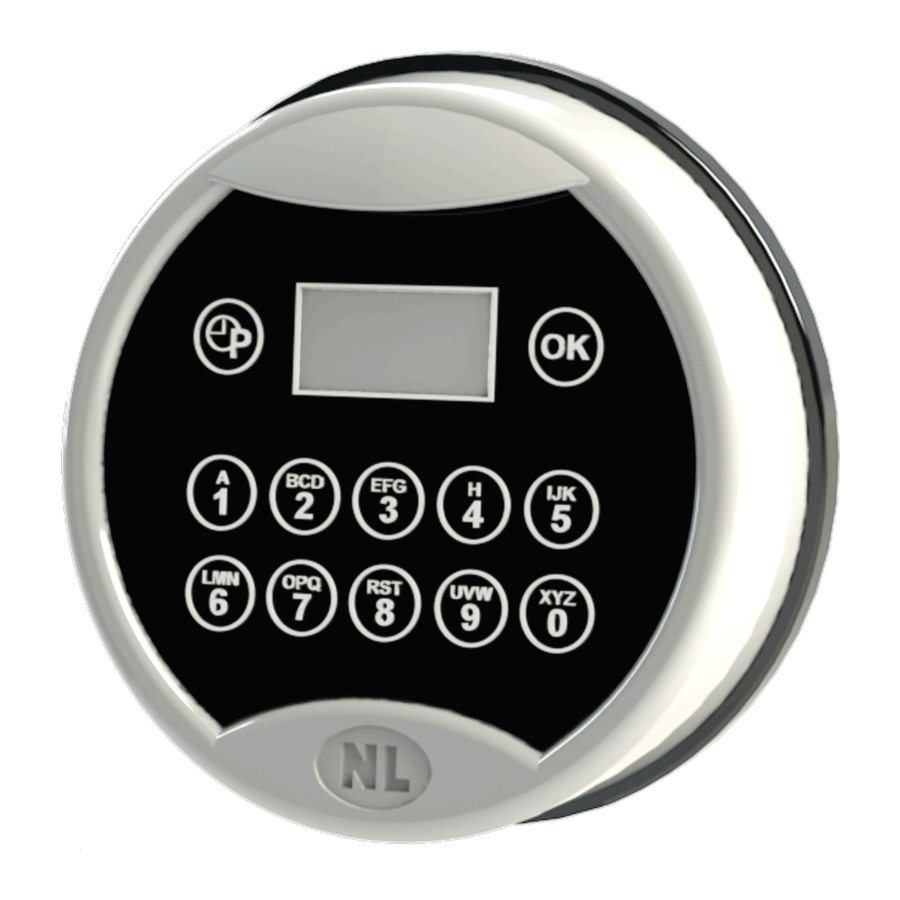

SmartLock VISION Manual

Default codes (change default codes)

Open the lock

• Enter the code and open within 4 seconds.
• If time delay is set wait for counting: an acoustic signal indicates open window.
• Enter the code and open within 4 seconds.

Open the lock with time delay override

• Enter override user (9) code.
• Enter second code and open within 4 seconds.

If lock is already counting time delay enter override user (9) code to immediately open.

Change code (door open)

• Press and hold 0 until double beep: enter old code.
• Enter and confirm new code.

Install a user

• Press and hold 1 until double beep: enter Manager code.
• Enter user ID (1-9).
• Enter and confirm new user code.

To install Manager enter the function with Service code.

Users management

• Press and hold 2 until double beep: enter Manager code.
• Press P to scroll users list and check their status.
• Press 1 to install a user: enter and confirm user code.
• Press 2 to disable/enable a user.
• Press 3 to delete a user.
• Press OK to confirm and exit.

Delete a user

• Press and hold 3 until double beep: enter Manager code.
• Enter user ID (1-9).

To delete Manager enter the function with Service code.

Test function

• Press and hold 5 until double beep.
• Enter the sequence: 1-2-3-4-5-6-7-8-9-0.
• Double beep: key properly working. Long beep: key malfunction.

If lock and keypad don't communicate display shows the message: NO ANSWER.

Change Setup code (Master)

• Press and hold 8 until double beep, enter Setup code and select function 0.
• Enter and confirm new Setup code.

Install Service

• Press and hold 8 until double beep, enter Setup code and select function 1.
• Press OK to confirm the operation.
• Enter and confirm new Service code.

Delete Service

• Press and hold 8 until double beep, enter Setup code and select function 3.
• Press OK to confirm the operation.

Reset lock

• Press and hold 8 until double beep, enter Setup code and select function 5.
• Display shows the message RESET.
• Press OK to confirm the operation.
• Enter a valid code.
• Lock is in pre-setup mode.

Pre-setup mode

• To open press 1.
• Setup code (Master) 5-5-5-5-5-5-5-5.

Lock setup

• Press and hold 8 until double beep. Enter the Setup code 5-5-5-5-5-5-5-5.
• Display shows the following options (press P to scroll):
  • CHANGE:change Setup code to exit pre-setup mode.
  • SETUP: check (OK) or change (P) lock configuration (bold = default settings)
    • DELAY DOWN - DELAY UP: time delay counting up or down.
    • DUAL NO - DUAL YES: dual mode active - dual mode not active.
    • DIGITS 6 - DIGITS 7 - DIGITS 8: opening codes length.

Time delay

• Press and hold 9 until double beep and enter Manager code (or Service code) or access Setup menu and press 9.

• Display shows current time delay values: press OK to confirm or enter new values (00-99min) and press OK.

• Display shows current open window values: press OK to confirm or enter new values (01-19min) and press OK.


Time delay can be increased at any moment, decreased only during open window.

Change language

• Press and hold OK until double beep: display shows the current language.
• Press OK until the desired language will be selected.

Check firmware version

• Press and hold OK until double beep: display shows the current language.
• Press P: display shows serial number and firmware version.
