1
Thank you for purchasing a Slimline UNIVERSAL smart lock. If you are fitting the lock to a door with a multi-point lock
mechanism (where you lift the handle to lock) then there are two tests that should be carried out before proceeding with the
installation. The first test is to ensure that the bolts/hooks or deadbolts fully retract when the outside handle is pulled down.
LEAVE
SPINDLE

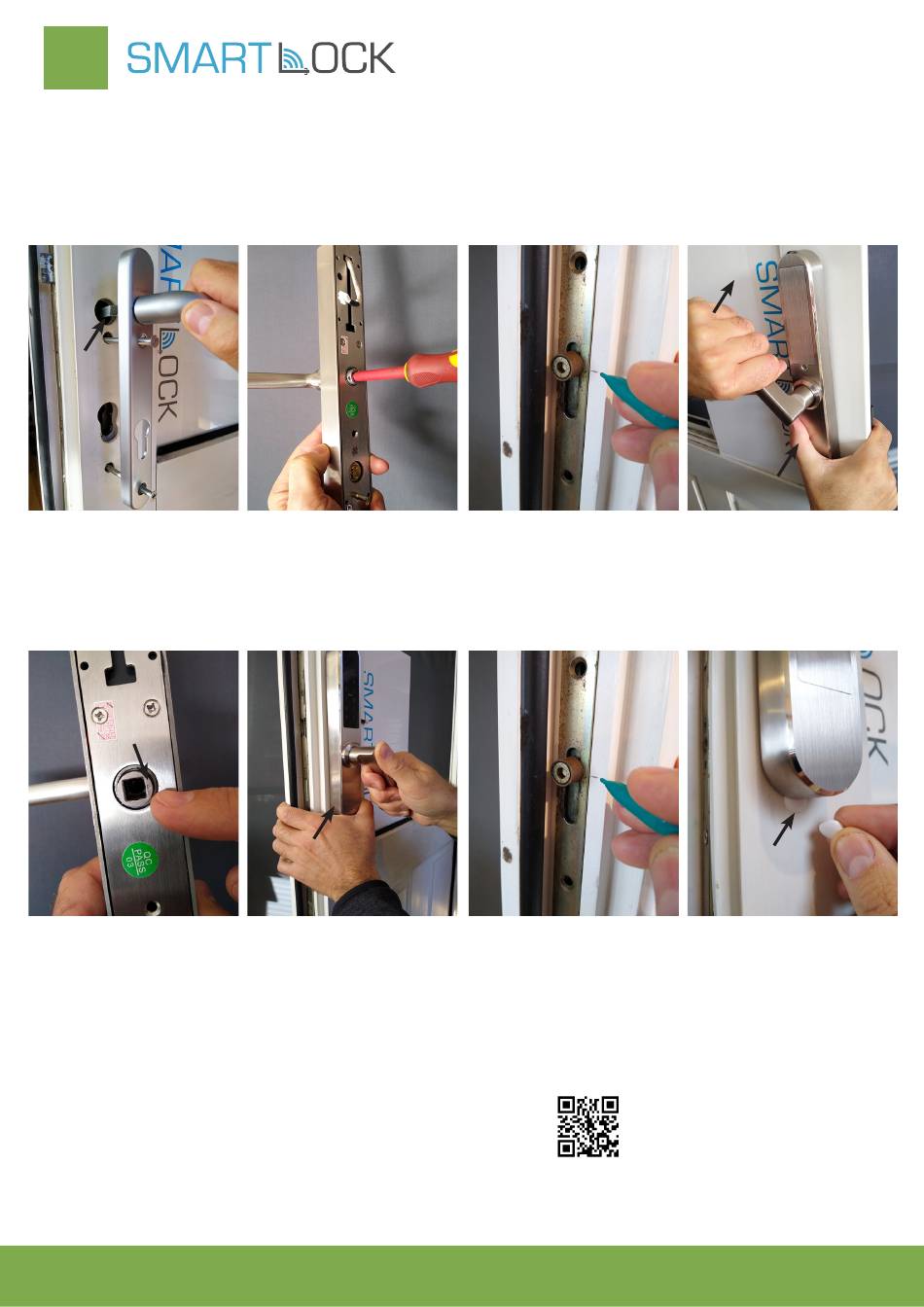

STEP 1
Remove the existing handles and keyed
euro cylinder. Leave the spindle in place.
You will no longer need the euro cylinder as
the UNIVERSAL has its own key backup.
ARROW POINTS AWAY
FROM HANDLE
STEP 5
Hold the keypad body and turn the spindle
receptor so that the arrow points AWAY
from the handle.
* SmartLock Europe Ltd cannot held be liable for any damage or losses incurred by not following these instructions.
SmartLock Europe Ltd
COMPATABILITY TEST
You MUST* check compatibility before drilling any holes in the door.
STEP 2
Remove the Slimline lock from the box
and check that the handles are pointing in
the correct direction for your door setup.
If not reverse them, as per the installation
manual.
HOLD FIRMLY
STEP 6
Offer up the keypad lock body and locate
on the spindle. Align so the lock sits
straight. Hold the lock firmly and pull the
handle fully downwards to retract the bolts/
hooks/deadbolts.
Remove the lock body, turn the spindle
receptor so that the arrow now points
TOWARDS the handle.
Prefer to watch a video?
Scan the QR code or visit
https://bit.ly/slimline-univ-test
TURN OVERLEAF FOR DETAILS OF THE SECOND TEST
STEP 3
With the door open, on the door edge,
mark/observe the position of ALL the
bolts/hooks/deadbolts. The number of
locking points will vary depending on the
mechanism type.
STEP 7
Check that all the bolts/hooks/deadbolts
have retracted fully back to the original
position. If they have then the lock is most
likely compatible.
Try closing the door making sure none of
the bolts prevent it from closing properly.
(44) 1273 930 304 info@smartlock.co.uk
LIFT HANDLE
HOLD FIRMLY
STEP 4
On the inside of the door, offer up the in-
ternal lock body and locate on the spindle.
Align so the lock sits straight. Hold the lock
firmly and then lift the handle fully to throw
the bolts/hooks/deadbolts. Remove the
lock body.
10MM COVER
CAP
STEP 8
Note that the new Slimline lock may not ful-
ly cover all of the existing holes in the door.
Use the included 10mm white cover caps.
Custom colour caps are available.
