7929 Lincoln Ave. Riverside, CA 92504
Phone: 951.689.ICON
Fax: 951.689.1016
COMPONENTS INCLUDED
(2) 194954P 09-UP F150 2/4WD | 04-08 F150
4WD REAR 2.5 VS PB SHOCK
HARDWARE INCLUDED
N/A
TOOLS REQUIRED
JACK
JACK STANDS
PRY BAR
TORQUE WRENCH
TECH NOTES
1. FAILURE TO INSTALL THE SUPPLIED (194017) BRACKET WILL LEAD TO FAILURE AND IS NOT
COVERED BY WARRANTY.
2. YOUR ICON SHOCK ASSEMBLIES COME FACTORY CHARGED TO 250 PSI. RELEASING NITROGEN
PRESSURE MAY LEAD TO SHOCK MALFUNCTION AND REDUCED RIDE QUALITY. FAILURE CAUSED BY
LOW NITROGEN PRESSURE IS NOT COVERED UNDER ICON'S WARRANTY POLICY.
3. IF SHOCK RESERVOIR IS NOT CLOCKED CORRECTLY, IT MAY RUB AGAINST THE EMERGENCY
BRAKE CABLE AND CAUSE PREMATURE WEAR ON THE STICKER.
INSTALLATION
1.
Using a properly rated jack, raise the rear of the vehicle and support the frame rails with jack stands. Ensure the jack stands are
secure and set properly before lowering the jack. NEVER WORK UNDER AN UNSUPPORTED VEHICLE.
2
. Remove the factory rear shocks using a 15mm and 18mm socket/wrench. (FIGURE 1)
3
. The passenger side upper shock mount needs to be sanded slightly in order for adequate top cap clearance throughout the travel.
Sand mount as shown. (FIGURE 2 AND 3)
FIG.2
PART #
97720P
(1) 194017 15+ F150 REAR E-BRAKE TAB
10MM SOCKET / WRENCH
15MM SOCKET / WRENCH
18MM SOCKET / WRENCH
FIG.1

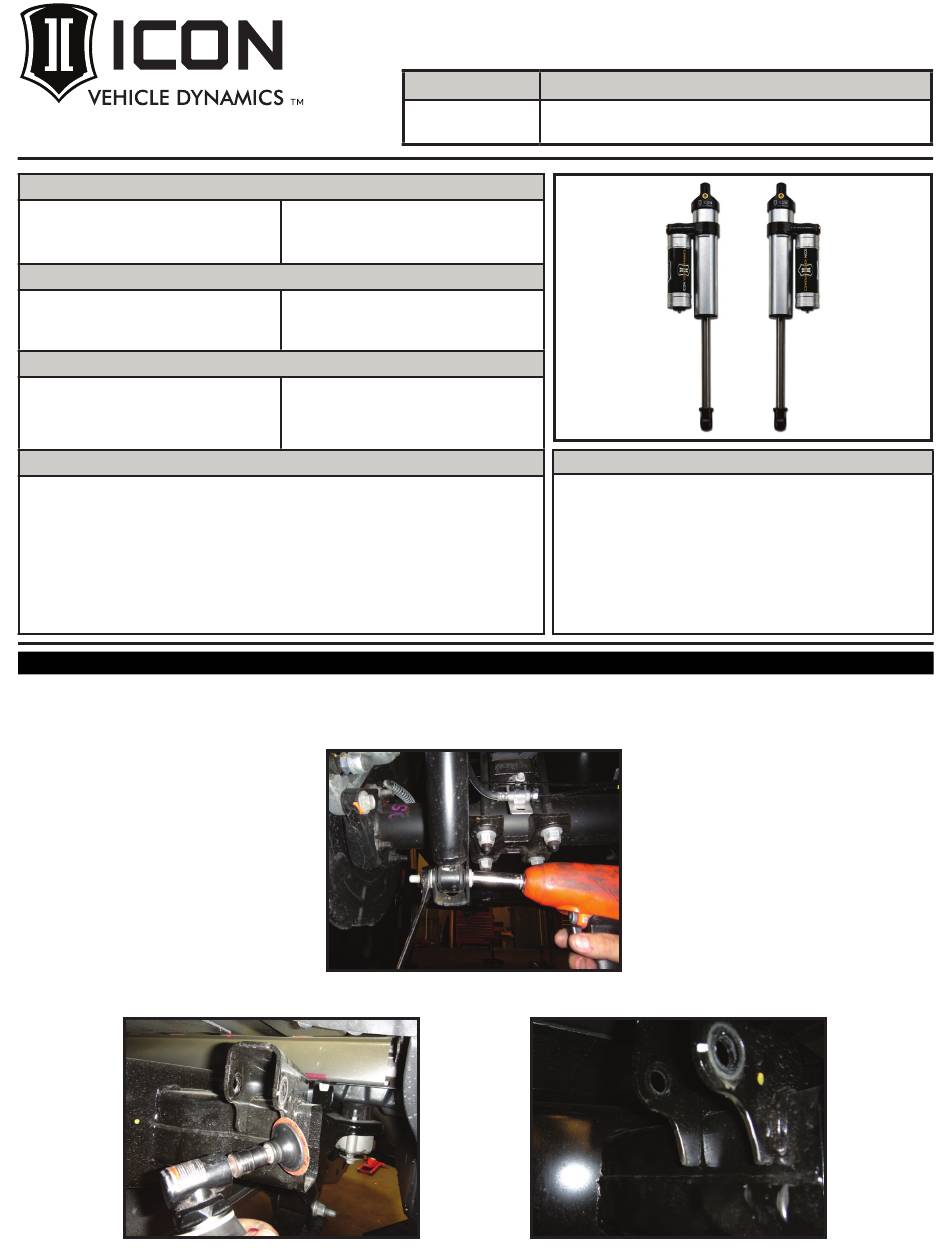

97720P INSTALLATION INSTRUCTIONS
DESCRIPTION
09-UP F150 2/4WD | 04-08 F150 4WD
REAR 2.5 VS PB PAIR
WARNING!
** READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH
BEFORE BEGINNING INSTALLATION! IF THESE INSTRUCTIONS ARE
NOT PROPERLY FOLLOWED SEVERE FRAME, SUSPENSION AND TIRE
DAMAGE MAY RESULT TO THE VEHICLE!
** ICON VEHICLE DYNAMICS RECOMMENDS THAT YOU EXERCISE
EXTREME CAUTION WHEN WORKING UNDER A VEHICLE THAT IS
SUPPORTED WITH JACK STANDS.
** ICON VEHICLE DYNAMICS RECOMMENDS ALL INSTALLATION TO
BE PERFORMED BY A PROFESSIONAL SHOP/SERVICE TECHNICIAN.
PRODUCT FAILURE CAUSED BY IMPROPER INSTALLATION WILL NOT BE
COVERED UNDER ICON'S WARRANTY POLICY.
1-18-2018 REV.B
FIG.3
1
Advertisement
Related Manuals for ICON 97720P
Summary of Contents for ICON 97720P
- Page 1 NOT PROPERLY FOLLOWED SEVERE FRAME, SUSPENSION AND TIRE COVERED BY WARRANTY. DAMAGE MAY RESULT TO THE VEHICLE! 2. YOUR ICON SHOCK ASSEMBLIES COME FACTORY CHARGED TO 250 PSI. RELEASING NITROGEN ** ICON VEHICLE DYNAMICS RECOMMENDS THAT YOU EXERCISE EXTREME CAUTION WHEN WORKING UNDER A VEHICLE THAT IS PRESSURE MAY LEAD TO SHOCK MALFUNCTION AND REDUCED RIDE QUALITY.
- Page 2 . Paint exposed metal to prevent rust. . Install the ICON rear shocks using a 15mm and an 18mm socket/wrench. Note that the reservoir points away from the axle. [Torque to factory spec] (FIGURE 4 AND 5) FIG.4 FIG.5 . Remove the factory parking brake cable bracket (if required) using a 10mm socket/wrench. Pry the bracket open, and remove it from the cable.
- Page 3 ICON VEHICLE DYNAMICS SHOCK ABSORBER WARRANTY This shock absorber has a 1 year warranty against any manufacturer’s defects. If a shock fails within the initial year of ownership, the shock must be shipped to ICON Vehicle Dynamics for inspection and service. If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides “normal wear and tear”, the owner of said shock is responsible for all service costs.
