7929 Lincoln Ave. Riverside, CA 92504
Phone: 951.689.ICON
Fax: 951.689.1016

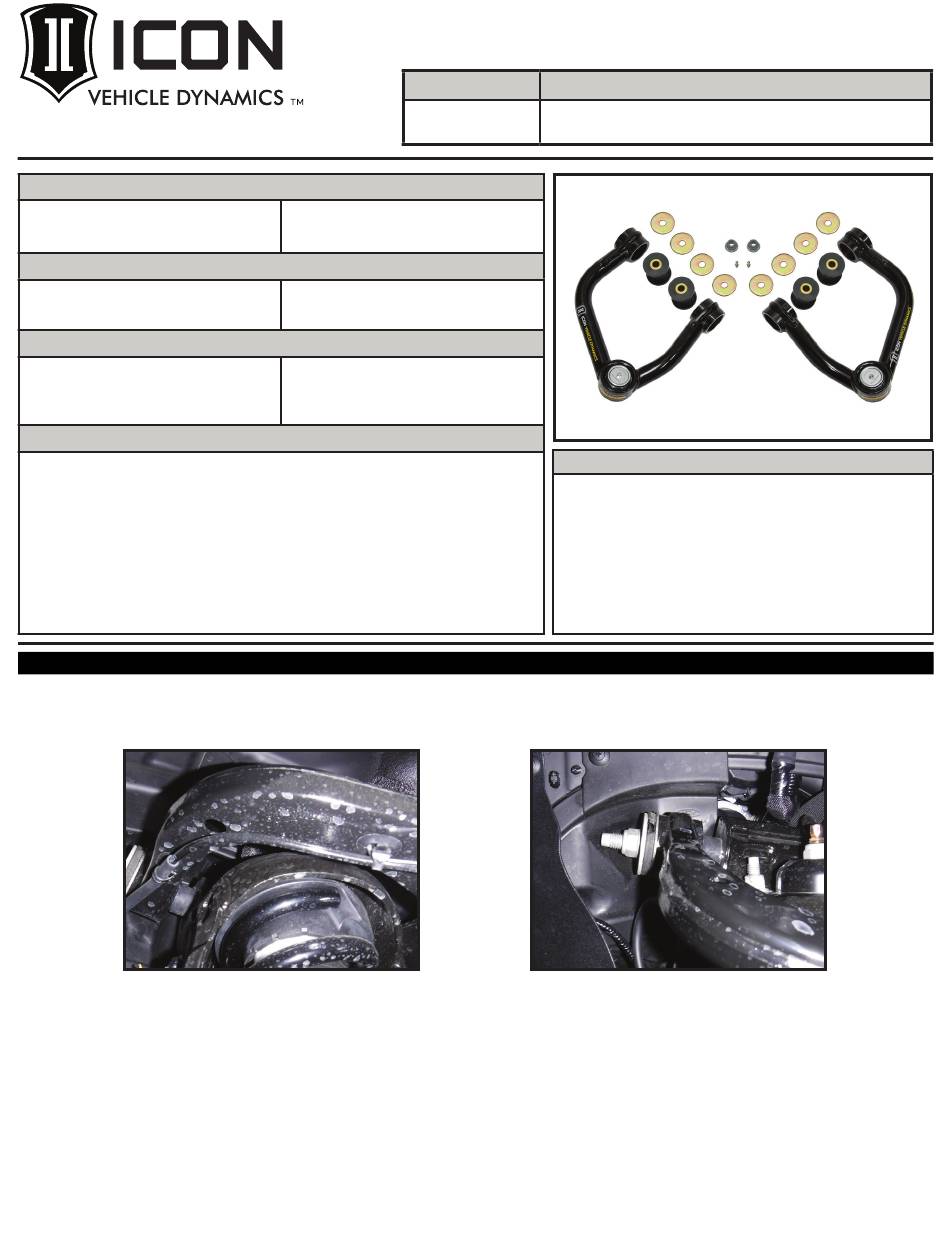

COMPONENTS INCLUDED
(1) 194604 19+ RANGER TUBULAR UCA (DRVR)
(1) 194605 19+ RANGER TUBULAR UCA (PASS)
HARDWARE INCLUDED
(2) 177200BJ DELTA JOINT
(4) 179106 SLEEVE 1.000 X .563 X 2.440
TOOLS REQUIRED
JACK
JACK STANDS
TORQUE WRENCH
FLATHEAD SCREWDRIVER
TECH NOTES
1. ICON RECOMMENDS OPTIONAL BILLET DUST COVER SET (191011) TO PREVENT DEBRIS FROM
PACKING UP AROUND THE ZERK FITTING.
2. ALL ICON UPPER CONTROL ARMS HAVE BEEN ENGINEERED TO ALLOW FOR THE MOST POSSIBLE
CASTER, WHILE STILL ALLOWING THE VEHICLE TO BE PROPERLY ALIGNED. NOTIFY YOUR
PROFESSIONAL ALIGNMENT SHOP OF THIS INFORMATION SO THAT MAXIMUM RIDE QUALITY CAN
BE ACHIEVED.
3. ICON DELTA JOINTS ARE PRE-GREASED FROM THE FACTORY. ICON RECOMMENDS GREASING
THE DELTA JOINT EVERY 3,000 MILES (OR EVERY OIL CHANGE). ADD NEW GREASE UNTIL ALL OF
THE OLD GREASE IS EXPELLED FROM THE BOTTOM OF THE DELTA JOINT ASSEMBLY, WIPE AWAY
EXCESS WITH A RAG OR SHOP TOWEL.
INSTALLATION
1.
Using a properly rated jack, raise the front of the vehicle and support the frame rails with jack stands. Ensure the jack stands are
secure and set properly before lowering the jack. NEVER WORK UNDER AN UNSUPPORTED VEHICLE. Remove the front wheels.
2
. Carefully pull the ABS wire retainers from the UCA. [FIGURE 1]
FIG.1
3
. Remove the nut from the frame bolt using an 18mm on the bolt head and 21mm on the nut. [FIGURE 2]
PART #
98510DJ
(2) 194606 19+ RANGER TUBULAR UCA BUCKET
BRACKET
(8) 297034 HAT BUSHING 1.625 X 1.000 X .850
(4) 297042 POLY RING 1.590 X 1.005 X .450
5/16" SOCKET / WRENCH
18MM SOCKET / WRENCH
21MM SOCKET / WRENCH
98510DJ INSTALLATION INSTRUCTIONS
DESCRIPTION
2019-UP FORD RANGER TUBULAR
UCA DJ KIT
WARNING!
** READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH
BEFORE BEGINNING INSTALLATION! IF THESE INSTRUCTIONS ARE
NOT PROPERLY FOLLOWED SEVERE FRAME, SUSPENSION AND TIRE
DAMAGE MAY RESULT TO THE VEHICLE!
** ICON VEHICLE DYNAMICS RECOMMENDS THAT YOU EXERCISE
EXTREME CAUTION WHEN WORKING UNDER A VEHICLE THAT IS
SUPPORTED WITH JACK STANDS.
** ICON VEHICLE DYNAMICS RECOMMENDS ALL INSTALLATION TO
BE PERFORMED BY A PROFESSIONAL SHOP/SERVICE TECHNICIAN.
PRODUCT FAILURE CAUSED BY IMPROPER INSTALLATION WILL NOT BE
COVERED UNDER ICON'S WARRANTY POLICY.
5-13-2019 REV.A
FIG.2
1
