BE QUIET! PURE BASE 600 Manual

Exceptionally Silent and Functional

Pure Base 600 Window is truly multi-talented, offering a great deal of functionality and features for an attractive price.

Highlights »

Highly versatile construction with repositionable HDD slots and a removable ODD cage
Optimized for liquid cooling with three specially designed areas of up to 360mm to add water cooling radiators
Adjustable top cover vent that can be closed for absolute silence, partially open for more air exhaust or fully open, with the added possibility to mount a radiator
High-quality, fully windowed side panel made of tinted and tempered glass
Whisper-quiet operation thanks to two pre-installed Pure Wings 2 fans featuring nine airflow-optimized fan blades that reduce turbulence while increasing the air pressure
Completely sound insulated with integrated dampening material on top, side and front
Professional cable management is adaptable with extensive cable routing options
3-year manufacturer's warranty
Product conception, design and quality control in Germany

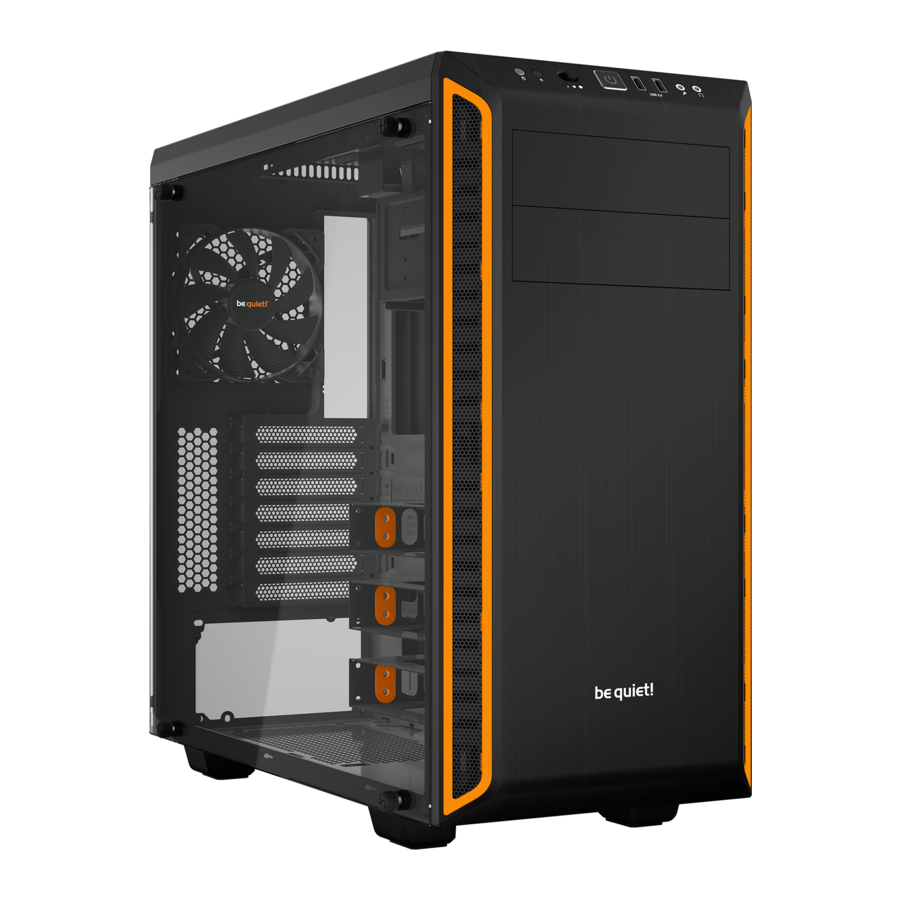

Pure Base 600 Window »
Smart usability features and whisper-quiet operation enable you to realize almost any system configuration you desire for your ATX or micro ATX PC. It is the perfect base for your system.

Features

Adjustable top cover vent can be closed for absolute silence, partly opened for more air exhaust or fully open, with the added possibility of mounting a water cooling radiator
One Pure Wings 2 140mm front intake fan and one Pure Wings 2 120mm rear exhaust fan for outstanding cooling performance
Airflow follows a clear path that quietly and efficiently lowers the system's temperatures. All exhaust air is directed to the rear, to further minimize any noise experienced
Sound-insulated side and front panels as well as top cover
Fully windowed side panel from tinted and tempered glass
Design permits the installation of up to four additional cooling fans. Integrated 3-step fan controller for up to three fans

Truly versatile, thanks to repositionable and removable HDD slots
Removable ODD tray for maximum flexibility of water cooling and drives
Chassis is optimized for liquid-cooling, with three specially designed areas to add radiators
Motherboard tray features large cutouts for the CPU cooler back plate, supporting all present and future CPU socket designs
Professional cable management is optimized by extensive cable routing options

Airflow

Dimensions (mm)

General Data Case

Motherboard compatibility	ATX, M-ATX, Mini-ITX
Form factor PSU	ATX PS/2
Case size (L x W x H in mm)	492 x 220 x 470
Material	0.8 - 1mm steel, ABS plastic, 4mm tempered glass window
Weight incl. package / without package (kg)	8.74 / 7.44
I/O Panel	2x USB 3.0, HD Audio (mic + headphone jacks)
Expansion slots (pcs.)	7

Drive Bay Capacity

5.25	2
3.5	3 (removable)
2.5	2 on motherboard tray 6 inside the HDD slots (removable)

Cooling System

Pre-installed Pure Wings 2 fans (mm / rpm)	Front: 1x 140 / 900 Rear: 1x 120 / 1,200
Optional fans (mm)	Top: 2x 140 / 3x 120 Front: 140 / up to 3x 120 (w/o pre-installed 140mm fan)*
Optional liquid cooling system (radiator in mm)	Top: 120, 240, 360* Front: 120, 140, 240, 280, 360 (w/o 5.25" cage) Rear*: 120
Cooling solutions	Air channels (front) Adjustable and removable top cover Manual 3-step fan controller (3x 3-pin)
