Introduction
If you do encounter installation problems, please don't hesitate to contact our customer services by mailing service@bequiet.com. Please note that be quiet! cannot accept liability for damage caused by compatibility problems.
SCOPE OF DELIVERY
| Part name | Quantity | |

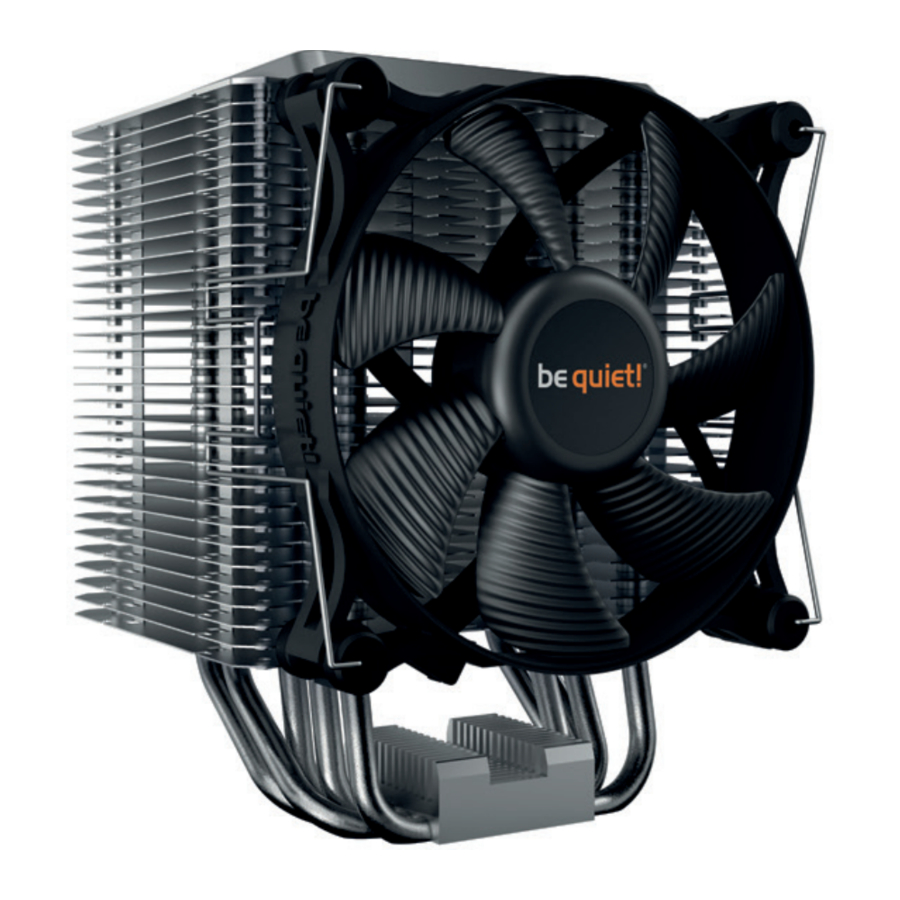

 | be quiet! Shadow Rock 3 CPU cooler | 1 |
 | 120mm fan | 1 |
 | Intel backplate | 1 |
 | Intel mounting brackets | 2 |
 | Intel mounting brackets LGA 1700 | 2 |
 | Long AMD mounting brackets | 2 |
 | Cooler mounting bridge | 1 |
 | Intel spacer nut A | 4 |
 | Intel spacer nut B | 4 |
 | AMD spacer nuts | 4 |
 | Mounting bracket fastening screws | 4 |
 | Mounting bridge fastening screws | 2 |
 | Intel backplate screws | 4 |
 | AMD backplate screws | 4 |
 | O-rings | 4 |
 | Fan clips | 4 |
 | Thermal paste | 1 |
 | Cross-tip screwdriver | 1 |
Intel: LGA 2011(-3) square ILM / LGA 2066 installation
The following parts are needed for this:
1x Shadow Rock 3 CPU cooler (1), 1x 120mm fan (2), 2x Intel mounting brackets (4), 1x cooler mounting bridge (7), 4x Intel spacer nut A (8), 4x mounting bracket fastening screws (11), 2x mounting bridge fastening screws (12), 2x fan clips (16), 1x thermal paste (17), 1x cross-tip screwdriver (18)
Assembly of the cooler mounting frame
First screw the Intel spacer nut A onto the threads of the socket frame. Place the Intel mounting brackets over the Intel spacer nut A and screw these tight with the mounting bracket fastening screws. You can use the cross-tip screwdriver for this.
Mounting the CPU cooler
First remove the protective foil from the underside of the cooler. Spread the thermal paste on the surface of the CPU. The amount supplied is sufficient for one or two applications.
The thermal paste supplied is not suitable for human consumption. If swallowed, drink lots of water and urgently seek medical attention. Keep it out of the reach of children. Avoid contact with skin and eyes.
Position the cooler mounting bridge centrally on the cooler. Next place the cooler unit onto the CPU. Insert the mounting bridge fastening screws from above into the cooler mounting bridge and then screw these alternately tight.
Fasten the 120mm fan onto the cooler unit using fan clips. Connect the fan to the motherboard's PWM signal.
When dismantling the fan, push the notches of the fan clips towards the CPU cooler and unhook them.
Intel: LGA 1700 / 1200 / 1150 / 1151 / 1155 installation
The following parts are needed for this:
1x Shadow Rock 3 CPU cooler (1), 1x 120mm fan (2), 1x Intel backplate (3), 2x Intel mounting brackets (4), 2x Intel mounting brackets LGA 1700 (5), 1x cooler mounting bridge (7), 4x Intel spacer nuts B (9), 4x mounting bracket fastening screws (11), 2x mounting bridge fastening screws (12), 4x Intel backplate screws (13), 4x O-rings (15), 2x fan clips (16), 1x thermal paste (17), 1x cross-tip screwdriver (18)
Mounting the backplate
Position the Intel backplate screws in the notches situated on the rear side of the Intel backplate. Pay attention in so doing to align with the holes drilled for each socket.
For fixing the backplate screws onto the Intel backplate use the O-rings. Once assembly of the Intel backplate for the respective Intel socket has been completed, position it under the motherboard. In so doing make sure that the backplate screws are precisely located within the motherboard holes.
Installation of the mounting brackets
Screw the Intel spacer nut B onto the previously positioned Intel backplate.
Then position, depending on your socket, the Intel mounting brackets or Intel mounting 1700 over the Intel spacer nut B and affix these with the mounting bracket fastening screws. You can use the crosstip screwdriver for this.
Mounting the CPU cooler
First remove the protective foil from the underside of the cooler. Spread the thermal paste on the surface of the CPU. The amount supplied is sufficient for one or two applications.
The thermal paste supplied is not suitable for human consumption. If swallowed, drink lots of water and urgently seek medical attention. Keep it out of the reach of children. Avoid contact with skin and eyes.
Position the cooler mounting bridge centrally on the cooler. Next place the cooler unit onto the CPU. Insert the mounting bridge fastening screws from above into the cooler mounting bridge and then screw these alternately tight. You can use the cross-tip screwdriver for this.
Fasten the 120mm fan onto the cooler unit using fan clips. Connect the fan to the motherboard's PWM signal.
When dismantling the fan, push the notches of the fan clips towards the CPU cooler and unhook them.
AMD: AM5 / AM4 installation
The following parts are needed for this:
1x Shadow Rock 3 CPU cooler (1), 1x 120mm fan (2), 2x long AMD mounting brackets (6), 1x cooler mounting bridge (7), 4x AMD spacer nuts (10), 2x mounting bridge fastening screws (12), 4x AMD backplate screws (14), 2x fan clips (16), 1x thermal paste (17), 1x cross-tip screwdriver (18)
Assembly of the cooler mounting frame
To permit mounting of the cooler please remove both the plastic retainers of the AMD retention module. The factory fitted backplate affixed to the rear side of the motherboard will be needed for sub-sequent installation of the cooler.
Place the four AMD spacer nuts onto the backplate bolts protruding through the front side and affix both long AMD mounting brackets with the AMD backplate screws.
Mounting the CPU cooler
First remove the protective foil from the underside of the cooler. Spread the thermal paste on the surface of the CPU. The amount supplied is sufficient for one or two applications.
The thermal paste supplied is not suitable for human consumption. If swallowed, drink lots of water and urgently seek medical attention. Keep it out of the reach of children. Avoid contact with skin and eyes.
Position the cooler mounting bridge centrally on the cooler. Next place the cooler unit onto the CPU. Insert the mounting bridge fastening screws from above into the cooler mounting bridge and then screw these alter-natively tight. You can use the cross-tip screwdriver for this.
Fasten the 120mm fan onto the cooler unit using fan clips. Connect the fan to the motherboard's PWM signal.
When dismantling the fan, push the notches of the fan clips towards the CPU cooler and unhook them.
Warranty
- 3-year manufacturer guarantee for consumers (original purchase from authorized be quiet! dealers only)
- Guarantee work can only be processed with a copy included of the purchase receipt from an authorized be quiet! dealer
- Manipulation and structural changes of any kind, including any damage caused by external mechanical force, will lead to a complete voiding of the guarantee
- Our General Warranty Conditions apply, which can be viewed on bequiet.com
Listan GmbH. Wilhelm-Bergner-Straße 11c. 21509 Glinde Germany
For further information contact us via e-mail: service@bequiet.com
We recommend preparatory mounting of the cooler outside the PC case for subsequent installation. The cooler should be removed prior to transportation as well.
