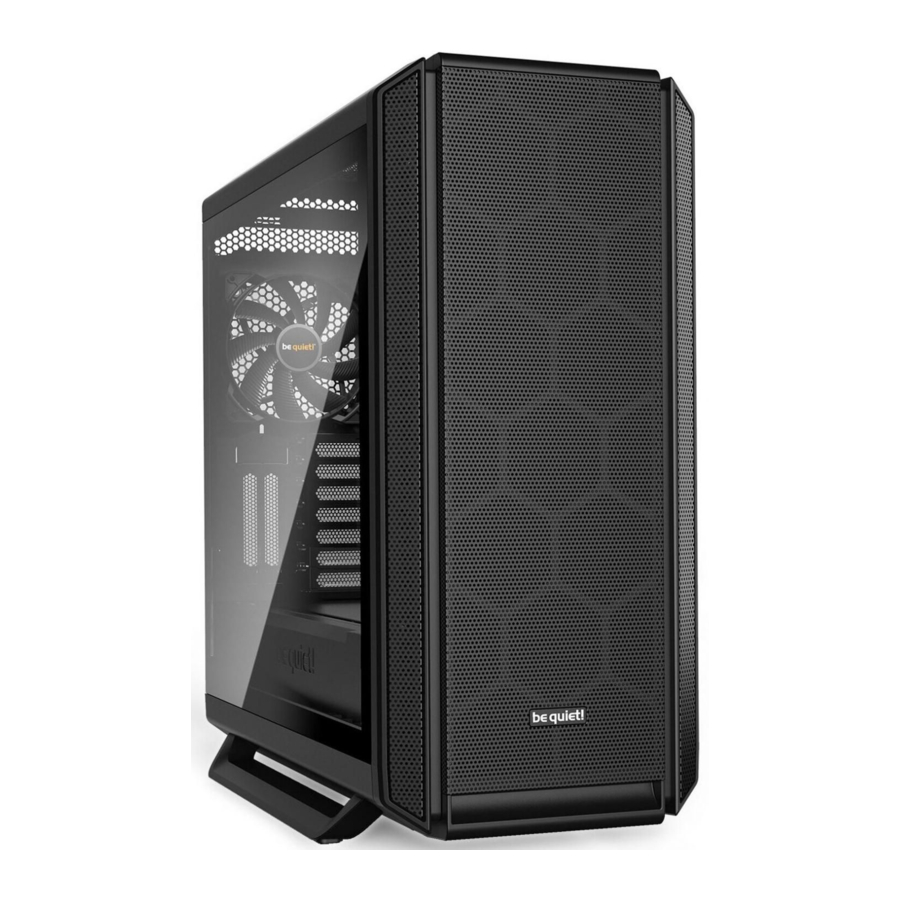

be quiet! Silent Base 802 - PC Cases Manual

SPECIFICATIONS

Motherboard compatibility	E-ATX (30.5x27.5), ATX, M-ATX,Mini-ATX
Case Type	Midi-Tower
PSU	PS2ATX (not included)
Dimensions (LxWxHinmm)	539x281x553
Material	Steel (SECC),ABSplastic
Weight (kg)	12.59 (net) / 13.34 (gross) 13.15 (net) / 14.9 (gross)*
I/O Panel	1xUSB3.2Gen.2TypeC, 2xUSB3.2Gen.1, HDAudio, Fan Switch Button
PCI Slots	7+2
Drive Bays	up to15x2.5(7 included) upto7x3.5(3 included)
Preinstalled fans (mm) / (rpm)	Front:2x PureWings 2140/1000 Rear:1x PureWings 2140/1000
Optional fans (mm)	Front:1x140/3x120 Top:3x140/3x120
Optional radiators (mm)	Front:120/140/240/280/360/420 Top: 120 / 240 / 360 Rear:120/140
Maximum Dimensions(mm)	CPU cooler: up to185 PSU:u p to288 GPU:432/287 (withHDDcage)
Special features	4-step fan controller (6x3-pin)withPWMHub

*Silent Base 802 Window

EXPLODED VIEW AND DESCRIPTION OF PARTS

A	Side panel	H	Detachable top bracket for fans and radiators
B	PureWings 2 fan	I	PSU bracket
C	Bottom dust filter	J	Interchangeable top covers
D	Interchangeable front panels	K	PSU shroud
E	Frontdust filter	L	Top cover of PSU shroud
F	Double HDD cage	M	HDD slot cover*
G	SSD bracket

*Silent Base 802 Window

FAN COMPATIBILITY

Position	Size(mm)
Top	3x140/120
Front	3x140/120
Rear	1x140/120
PSU Cover	1x140/120

RADIATOR COMPATIBILITY

REMOVING THE SIDE PANEL

REMOVAL AND INSTALLATION OF THE CASE FRONT

CHANGING THE TOP COVER

INSTALLATION OF DRIVES INTO THE HDD CAGE

INSTALLATION OF ADDITIONAL FAN INSIDE THE PSU SHROUD

INSTALLATION OF SSDs ON THE BRACKET

HANDLING OF HDD SLOT COVERS

REMOVING THE FRONT DUST FILTER

REMOVING THE BOTTOM DUST FILTER

INSTALLING THE MOTHERBOARD

INSTALLING THE PCIe CARDS

INSTALLING A GRAPHICS CARD VERTICALLY

INSTALLING FANS OR RADIATORS ON THE DETACHABLE TOP BRACKET

INVERTED LAYOUT
