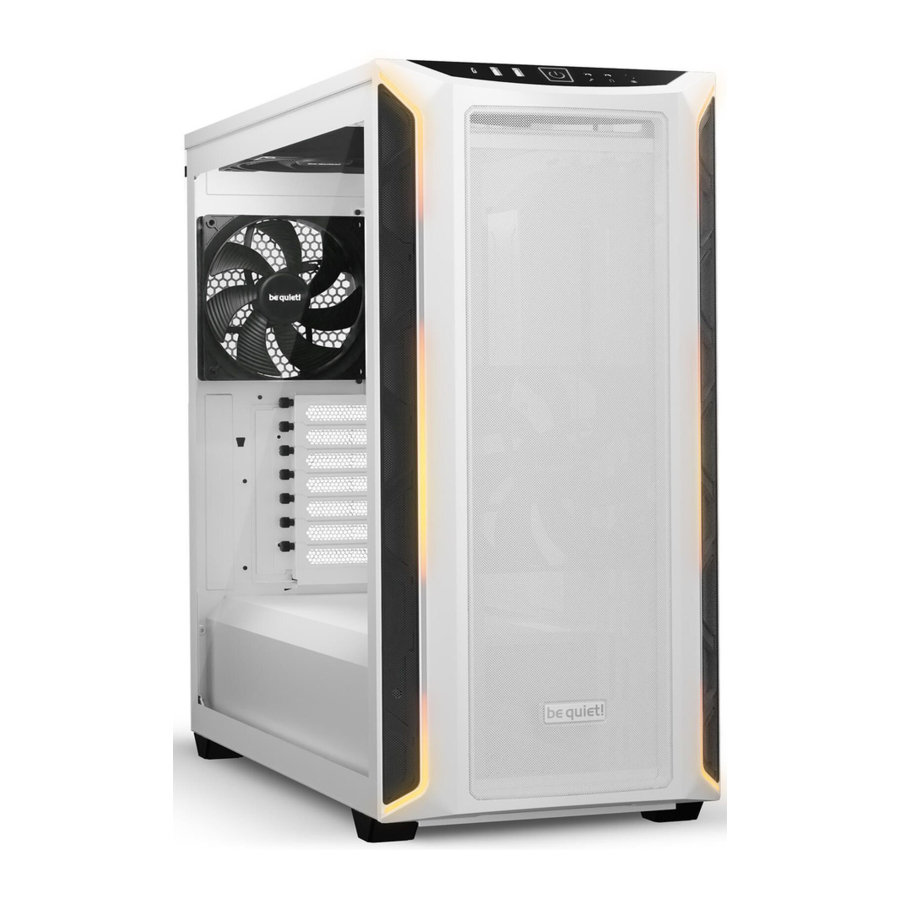

be quiet! Shadow Base 800 DX - PC Cases Manual

Also See for Shadow Base 800 DX:

User manual (40 pages)

Table of Contents

Contents

1 SPECIFICATIONS
2 CONTENTS
3 EXPLODED VIEW AND DESCRIPTION OF PARTS
4 RADIATOR CLEARANCE
5 REMOVING THE SIDE PANEL
6 REMOVING THE WINDOW PANEL
7 REMOVING THE TOP COVER
8 REMOVING THE FRONT DUST FILTER
9 REMOVING THE BOTTOM DUST FILTER
10 INSTALLATION OF ADDITIONAL BOTTOM FAN
11 INSTALLATION OF THE DOUBLE HDD BRACKET WHILE USING LARGER RADIATORS
12 INSTALLATION OF THE DOUBLE HDD BRACKET WHILE USING LARGER PSUs
13 INSTALLATION OF DRIVES INTO THE SINGLE HDD CAGE
14 INSTALLATION OF SSDs ON THE PANEL
15 INSTALLATION OF SSDs ON THE BRACKET
16 INSTALLATION OF HDDs ON THE BRACKET
17 INSTALLING THE ATX-MOTHERBOARD
18 INSTALLING THE E-ATX-MOTHERBOARD
19 INSTALLING A GRAPHICS CARD
20 INSTALLING A GRAPHICS CARD VERTICALLY
21 INSTALLING THE POWER SUPPLY
22 CABLE MANAGEMENT BAR
23 COMPLETE SYSTEM
24 ARGB MODES AND COLORS
25 SYNCHRONIZATION ARGB
26 Documents / Resources
- 26.1 References
- 26.2 Download manual

be quiet! Shadow Base 800 DX - PC Cases Manual

SPECIFICATIONS

Motherboard compatibility	E-ATX, ATX, M-ATX, Mini-ITX
Case Type	Midi-Tower
PSU	PS2 ATX (not included)
Dimensions (L x W x H in mm)	550 x 247 x 522
Material	Steel (SGCC), ABS
Weight (kg)	11.8 (net) / 13.2 (gross)
I/O Panel	1x USB 3.2 Gen. 2 Type C, 2 x USB 3.2, HD Audio (mic + audio), LED Control, I/O Button
PCI Slots	7
Drive Bays	up to 8x 2.5" (4 included) up to 4x 3.5" (2 included)
Preinstalled fans (mm) / (rpm)	Front: 1x Pure Wings 3 PWM 140 / 1200 Top: 1x Pure Wings 3 PWM 140 / 1200 Rear: 1x Pure Wings 3 PWM 140 / 1200
Maximum fans (mm)	Front: 3x 140 / 120 Top: 3x 140 / 120 Bottom: 1x 140 / 120 Rear: 1x 140 / 120
Optional radiators (mm)	Front: 120 / 140 / 240 / 280 / 360 / 420 Top: 120 / 140 / 240 / 280 / 360 / 420 Rear: 120
Maximum Dimensions (mm)	CPU cooler: up to 180 PSU: up to 250 GPU: up to 430
ARGB Connector	3-pin

EXPLODED VIEW AND DESCRIPTION OF PARTS

EXPLODED VIEW AND DESCRIPTION OF PARTS - Part 1

A	Window Side Panel	H	SSD Panel
B	Side Panel	I	Pure Wings 3 / 140mm
C	Front Panel	J	Airflow Cover PSU Shroud
D	Front Dust Filter	K	PCIe Bracket
E	Bottom Dust Filter	L	Double HDD Bracket
F	Mesh Panel Top	M	Cable Management Bar
G	PSU Shroud	N	SSD / HDD Bracket Rear

EXPLODED VIEW AND DESCRIPTION OF PARTS - Part 2

RADIATOR CLEARANCE

REMOVING THE SIDE PANEL

REMOVING THE WINDOW PANEL

REMOVING THE TOP COVER

REMOVING THE FRONT DUST FILTER

REMOVING THE BOTTOM DUST FILTER

INSTALLATION OF ADDITIONAL BOTTOM FAN

INSTALLATION OF THE DOUBLE HDD BRACKET WHILE USING LARGER RADIATORS

INSTALLATION OF THE DOUBLE HDD BRACKET WHILE USING LARGER PSUs

INSTALLATION OF DRIVES INTO THE SINGLE HDD CAGE

INSTALLATION OF SSDs ON THE PANEL

INSTALLATION OF SSDs ON THE BRACKET

INSTALLATION OF SSDs ON THE BRACKET - Step 1

INSTALLATION OF HDDs ON THE BRACKET

INSTALLATION OF HDDs ON THE BRACKET - Step 1

INSTALLING THE ATX-MOTHERBOARD

INSTALLING THE E-ATX-MOTHERBOARD

INSTALLING A GRAPHICS CARD

INSTALLING A GRAPHICS CARD VERTICALLY

INSTALLING A GRAPHICS CARD VERTICALLY - Step 1

INSTALLING THE POWER SUPPLY

CABLE MANAGEMENT BAR

COMPLETE SYSTEM

ARGB MODES AND COLORS

Color \ Mode	Regular	Breath	Comet	Trail
Orange	default	x1	x2	x3
Purple	x4	x5	x6	x7
Cyan	x8	x9	x10	x11
All colors	x12	x13	Rainbow \| x14	OFF \| x15
White	x16	x17	x18	x19
Red	x20	x21	x22	x23
Green	x24	x25	x26	x27
Blue	x28	x29	x30	x31

SYNCHRONIZATION ARGB
