Bissell Pet Hair Eraser, 33A1 Series Manual

Introduction

We're glad you purchased a BISSELL Pet Hair Eraser corded hand vacuum. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system.
Your BISSELL hand vacuum is well made, and we back it with a limited one year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you'll receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your BISSELL hand vacuum.

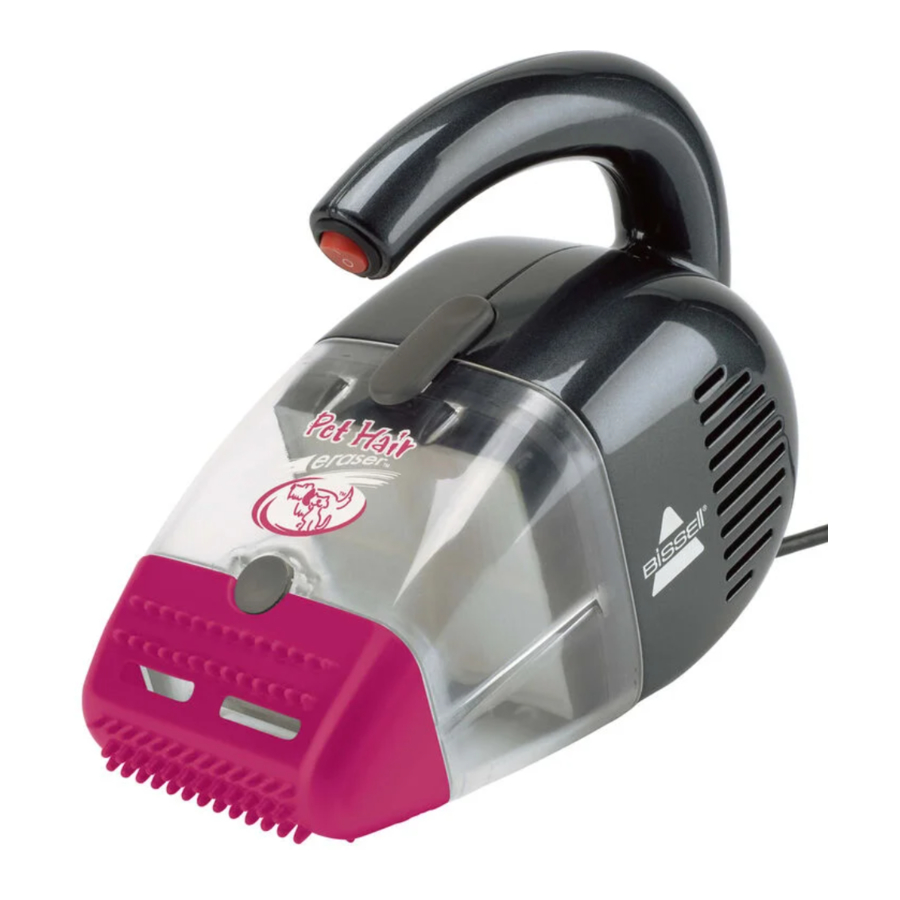

Product view

Assembly

Your unit will come assembled and will require no tools to put together.

Operations

Power switch
The power switch is located on the end of the curved handle.
To turn hand vacuum ON ( I ), press up.
To turn hand vacuum OFF ( 0 ), press down.

Cleaning with hard nozzle

1. Turn hand vacuum OFF.
2. Remove flexible rubber nozzle by pressing down on round nozzle release button.


Cleaning with hard nozzle continued

3. Replace with hard nozzle by lining up the bottom of nozzle to the bottom of the dirt container. Pivot upwards to snap into place.

4. Make sure the nozzle has snapped securely into place before using.

Cleaning with flexible rubber contour nozzle

1. Turn hand vacuum OFF.
2. Remove hard nozzle by pressing down on round nozzle release button.

3. Replace with flexible rubber contour nozzle by lining up the bottom of nozzle to the bottom of the dirt container. Pivot upwards until it snaps into place.

4. Make sure the nozzle has snapped securely into place before using

Maintenance and care

Cleaning the filter and screen

1. Turn hand vacuum OFF.
2. Unplug hand vacuum from electrical outlet.
3. Disconnect dirt container and filter assembly from the unit.
4. Remove filter by grasping tabs on both sides of filter frame and pulling away from the dirt container.

5. Separate filter assembly by grasping tabs on both sides of assembly and pull. For best results, periodically tap filter and screen against trash can to remove dirt that has collected.

6. Reconnect filter and screen by aligning rectangular tab on filter with insert on screen. Press together to ensure assembly is secure.

7. See to reattach dirt container.
   NOTE: Dirt container and screen may be rinsed with cold water. Ensure both are dry before reinserting. Do not rinse pleated filter.


Storage/Cord wrap system

1. To store the unit, turn hand vacuum OFF.
2. Unplug hand vacuum from electrical outlet.
3. Bundle cord, using wrap that is located on cord, to store.

Nozzle Maintenance

Keep nozzles clean and free of debris.

1. Wipe nozzles clean with damp cloth.

Troubleshooting

Hand vacuum won't run

Possible causes

1. Power cord not plugged in
2. Blown fuse/tripped breaker in home
3. Thermal protector is activated

Remedies

1. Check electrical plug
2. Check/replace fuse or reset breaker
3. Turn OFF and unplug the unit. Empty dirt container, clean filter and screen, and clear any clogs. Wait 30 minutes before turning the unit back ON.

Hand Vacuum won't pick up or low suction

Possible causes

1. Dirt container not installed properly
2. Dirt container is full
3. Filter or screen is dirty
4. Nozzles are clogged with debris

Remedies

1. Check assembly of dirt container making sure it is snapped in
2. Empty dirt container and reattach
3. See instructions above. Replace filter if needed
4. Wipe tools clean with damp cloth

BISSELL Consumer Services

For information about repairs or replacement parts, or questions about your warranty, call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday
8 a.m. — 10 p.m. ET
Saturday
9 a.m. — 8 p.m. ET
Or write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids MI 49501
ATTN: Consumer Services
Or visit the BISSELL website - www.bissell.com
When contacting BISSELL, have model number of cleaner available.
Please record your Model Number:
Please record your Purchase Date:
NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim. See Warranty for details.

Replacement parts - BISSELL vacuum

Item	Part No.	Part Name
1	97D5	HEPA Media Filter Assembly
2	203-1408	Flexible Rubber Contour Nozzle
3	203-1409	Hard Nozzle

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:
READ ALL INSTRUCTIONS BEFORE USING YOUR
HAND VACUUM.
Always connect to a polarized outlet (left slot is wider than right). Unplug from outlet when not in use and before conducting maintenance.

To reduce the risk of fire, electric shock, or injury:

• Do notmodify the polarized plug to fit a non-polarized outlet or extension cord.
• Do not leave hand vacuum cleaner unattended when it is plugged in.
• Unplug from outlet when not in use and before servicing.
• Unplug before attaching the nozzles.
• Do not use outdoors or on wet surfaces.
• Do not allow children to operate vacuum cleaner or use as a toy.
• Close attention is necessary when used by or near children.
• Do not use for any purpose other than described in this user's guide.
• Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle hand vacuum cleaner or plug with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before plugging or unplugging vacuum cleaner.
• Use extra care when cleaning stairs.
• Do not pick up flammable materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapors.
• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not use hand vacuum cleaner in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Use only on dry, indoor surfaces.
• Keep appliance on a level surface.

SAVE THESE INSTRUCTIONS FOR FUTURE USE
THIS APPLIANCE HAS A POLARIZED PLUG.
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not change the plug in any way.
This model is for household use only.
