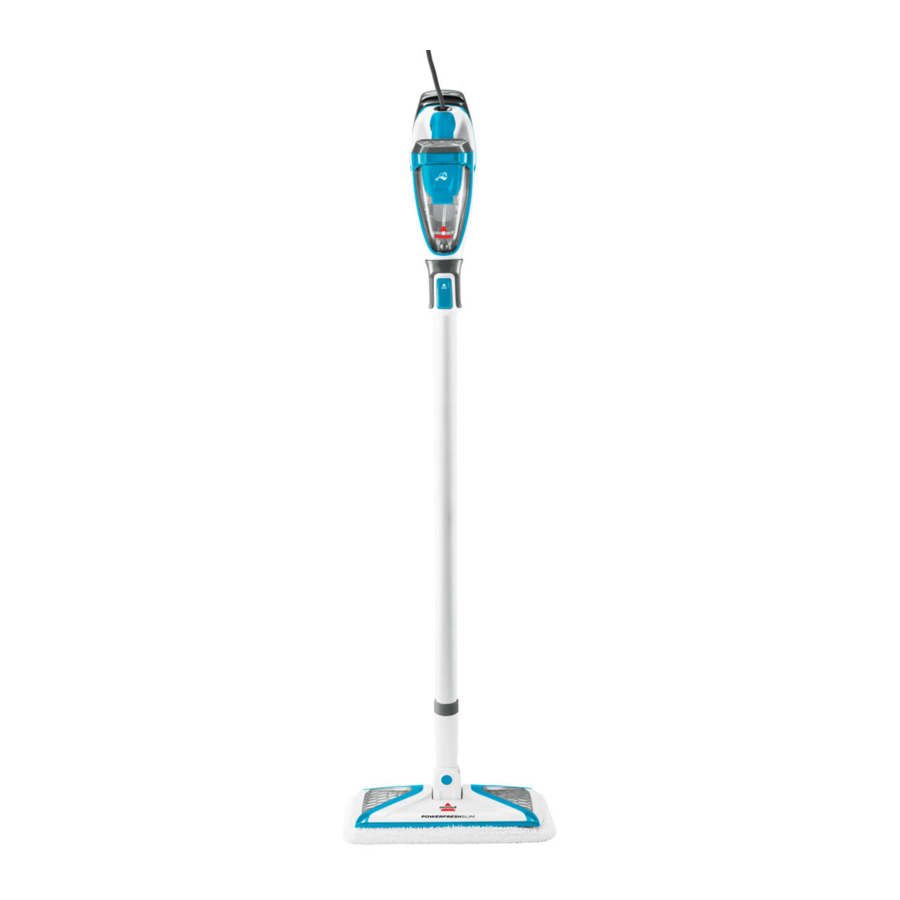

Bissell PowerFresh Slim 2075 Series Manual

1. Attach the Extension Wand to the Mop Pad Foot by snapping it into place.

2. Then, insert the Handheld Pod to the Extension Wand until it clicks into place.

3. Attach the tool box to the Handheld Pod by aligning the clip on the back side of the Tool Box to the opening on the bottom of the Handheld Pod and slide down into place.

4. Wrap the cord around the palm of your hand into a circle. Then, place the wrap strap around the cord and back onto itself to secure.


1. The clean water tank is located on the top of the Handheld Pod.

2. Pull the water tank cap straight up to open.

3. Use water cup provided and fill with distilled or demineralized water, recommended in place of tap water. Close the water tank cap after filling.


A few notes about filling the Water Tank:

• The Water Tank's capacity is 350 mL (12 oz).
  DO NOT USE CHEMICALS IN THE WATER TANK OF YOUR POWERFRESH® SLIM STEAM MOP.
• Other solutions may harm the machine and void the warranty.
  NOTE: Use of distilled water or demineralized water is recommended to prolong the life of your steam mop. To add a fresh scent as you clean, try BISSELL demineralized waters in various scents like Citrus, Eucalyptus Mint and Spring Breeze.

Attaching Microfiber Mop Pads

1. Your PowerFresh® Slim Steam Mop may have come with two different pads.
   The White Mop Pad is best for everyday use on delicate flooring like sealed hardwoods and laminate. The Scrubby Mop Pad is recommended for durable surfaces like tile.

2. To attach mop pad, wrap mop pad around the bottom of the foot, making sure the gray stitching is located on the front of the foot and the Quick Grip Release™ Tab is located on the back.


1. Plug machine into a properly grounded outlet.

2. When the unit is plugged in, the STEAM READY light will start to blink.

3. After 30 seconds, the STEAM READY light will turn to a solid light. This means the steam mop is heated and ready to use.

4. Now, select a desired steam level based on your cleaning needs.
   Push the HI STEAM button once to turn ON. Use HI STEAM when cleaning durable floors or sticky messes.

   Push the LOW STEAM button once to turn ON. Use LOW STEAM for delicate floors or for light, everyday cleaning.

5. To turn steam OFF, press the PAUSE button once.


NOTE: You must wait until the STEAM READY light is a solid color before selecting your desired steam level. Upon the first use of your steam mop or first use after refilling the water tank, the pump may make a "knocking" sound. This is normal and will diminish after a few seconds.

NOTE: Before you clean, thoroughly sweep or vacuum floor prior to cleaning with the PowerFresh® Slim Steam Mop.
YOUR STEAM MOP IS DESIGNED TO CLEAN HARD FLOORING SUCH AS CERAMIC TILE, LAMINATE, MARBLE, STONE AND SEALED HARDWOOD FLOORS. USE OF YOUR STEAM MOP ON WAXED OR SOME UNWAXED FLOORS MAY RESULT IN A DIMINISHED GLOSSINESS. THE STEAM MOP IS NOT FOR USE ON UNSEALED FLOORS. FOR BEST RESULTS, TEST IN AN INCONSPICUOUS AREA AND CHECK THE CARE INSTRUCTIONS FROM YOUR FLOORING MANUFACTURER.

1. Plug machine into a properly grounded outlet.

2. Make sure the STEAM READY light is solid before selecting the appropriate steam level based on your hard floor cleaning needs.

3. Step on the side of the foot to recline the body of the machine to begin cleaning.


NOTE: Your Steam Mop may have already come assembled with a mop pad on the foot. If not, refer to instructions in the "Attaching Microfiber Mop Pads" section to learn how to attach the mop pad.

4. Push the trigger underneath the handle of the Handheld Pod to release steam.

5. To easily maneuver and clean tight spaces such as baseboards, behind the toilet, and around furniture, take advantage of the swivel steering.

6. For best results to sanitize an area of your floor, use the microfiber cloth pads and slowly and evenly stroke your steam mop back and forth at least three times over the area using continuous steam. Remove the pad after use and wash.

7. When finished cleaning, turn off the machine by pressing the PAUSE button and unplugging the unit.


Your BISSELL PowerFresh® Slim Steam Mop has the ability to clean above floors or in tight spaces when using the Extension Wand. It also has the convenience of converting into a handheld steamer when removing the Extension Wand.

1. Before changing from mopping to the handheld feature or disconnecting a tool from the handheld pod or extension wand, make sure steam is no longer coming from the nozzle by releasing the trigger and pressing the PAUSE button.

2. To clean above floors using the Extension Wand, step down on the pedal located on the back of the steam mop and lift up to release the Extension Wand.

3. Be sure the desired steam setting is selected, then push the trigger located under the handle of the Handheld Pod to release steam.


4. Align arrow on tool to arrow on end of nozzle (on extension wand or handheld steamer) and twist tool into place.

5. Attach desired tool to end of Extension Wand to clean above floors and hard to reach areas such as ceilings, showers, baseboards, and sliding door tracks.

6. To convert the steam mop into a handheld steamer, push the release button on top of the Extension Wand and lift up to detach the Handheld Pod from the Extension Wand.

7. Cleaning Without Tools: Push the trigger located under the handle of the Handheld Pod to release steam from the end of the Handheld Pod.

8. Cleaning With Tools: Make sure steam is no longer coming from the nozzle by releasing the trigger and pressing the pause button. Then connect the desired tool.

9. Based on your cleaning needs, connect desired tool to the end of the Extension Wand or the Handheld Pod. Select cleaning tools are included with this model.
   Use the Flat Scraping Tool to steam and scrape off those sticky messes on floors, countertops, etc.

   Use the Grout Tool to remove dirt and grime from grout.

   Use the Mop Pad Foot to steam larger areas such as shower walls, countertops, stairs, etc.

   Use the Angle Concentrator Tool to steam clean hard-to-reach corners and crevices where dirt and grime build-up in the home, like sinks and faucets.

   Use the Green Bristle Brush to clean around stove tops, sinks, showers, etc.


1. Turn machine OFF and unplug from the grounded outlet.

2. Carefully remove mop pad using the Quick Grip Release Tab from the mop head. NOTE: Mop pad and lower assembly may be hot.

3. Mop pads can be machine washed in warm water. Use only non-bleach liquid detergents. Do not use fabric softeners or bleach. For best results, air dry.

4. Wrap the cord around the palm of your hand into a circle. Then, place the wrap strap around the cord and back onto itself to secure.

5. Store on the Wall Mount that is securely mounted to a wall in a protected, dry area. Store with dry pads as wet mop pads may damage wood and other delicate hard floors.


NOTE: Unit does not stand up on its own. If you are not using the Wall Mount, make sure your steam mop is stored in a safe place, in the upright position against a firm surface to prevent from falling over.

1. Place the wall mount against the wall in the area where you've determined you would like to store your machine.

2. Place each screw through the two holes in the wall mount. Use a screwdriver or drill to affix to the wall.

3. Find the clip on the back of the Tool Box and hook it into the right side of the Wall Mount.


OPTION 2:

1. Detach the Extension Wand from Handheld Pod.

2. Clip the extension wand into the holder.

3. Bend the Mop Pad Foot downward in a slanted position.

4. Find the opening on the back of the Handheld Pod and hook it onto the top lip of the Wall Mount.

5. Hang the power cord and tool bag on the leftside hook.


Please do not return this product to the store.
Other maintenance or service not included in the manual should be performed by an authorized service representative.
For any questions or concerns, BISSELL is happy to be of service.
Contact us directly at 1-800-237-7691.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR STEAM MOP.
When using an electrical appliance, basic precautions should be observed, including the following:
Always connect to a polarized outlet (left slot is wider than right). Unplug from outlet when not in use and before conducting maintenance.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• This appliance can be used by children 8 years old and above, and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• If the cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Use extra care when cleaning on stairs.
• Do not use with damaged cord or plug.
• Do not use outdoors.
• Always turn off this appliance before connecting or disconnecting the nozzle. Do not direct steam at people, animals, or at electrical outlets.
• Unplug from outlet when not in use and before conducting maintenance or troubleshooting.
• Do not leave steam cleaner unattended.
• Do not expose hair, loose clothing, fingers or body parts to openings or moving parts.
• Do not service steam cleaner when it is plugged in. - Do not handle steam cleaner with wet hands.
• Do not use steam cleaner if it has been dropped, damaged, left outdoors or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or expose cord to heated surfaces.
• Do not unplug by pulling on cord.
• Do not use appliance in an enclosed space filled with vapor given off by oil-base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not allow to be used as a toy.
• Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steamsensitive materials.
• Do not immerse in water or liquid.
• Not for space heating purposes.
• Do not use for any purpose other than described in this User's Guide.
• Use only manufacturer's recommended attachments – use of attachments not provided or sold by BISSELL may cause fire, electric shock or injury.
• Never put descaling, aromatic, alcoholic, detergent or vinegar products into the steam cleaner, as this may damage it or make it unsafe for use.
• Unplug by grasping the plug, not the cord.
• Close attention is necessary when used by or near children.
• Keep the appliance out of reach of children when it is energized or cooling down.
• The foot surfaces are liable to get hot during use.
• Do not open the aperture during use.

SAVE THESE INSTRUCTIONS FOR FUTURE USE
This model is for household use only. Commercial use of this unit voids the manufacturer's warranty.
