Bissell PowerFresh Deluxe Plus / Deluxe Plus Pet, 1806 Series Manual

Table of Contents

Contents

1 Product Overview
2 What's in the Box?
3 Assembly
4 Getting Ready to Clean
5 Steam Cleaning & Sanitizing
6 After-Cleaning Care
7 Troubleshooting
8 IMPORTANT SAFETY INSTRUCTIONS
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

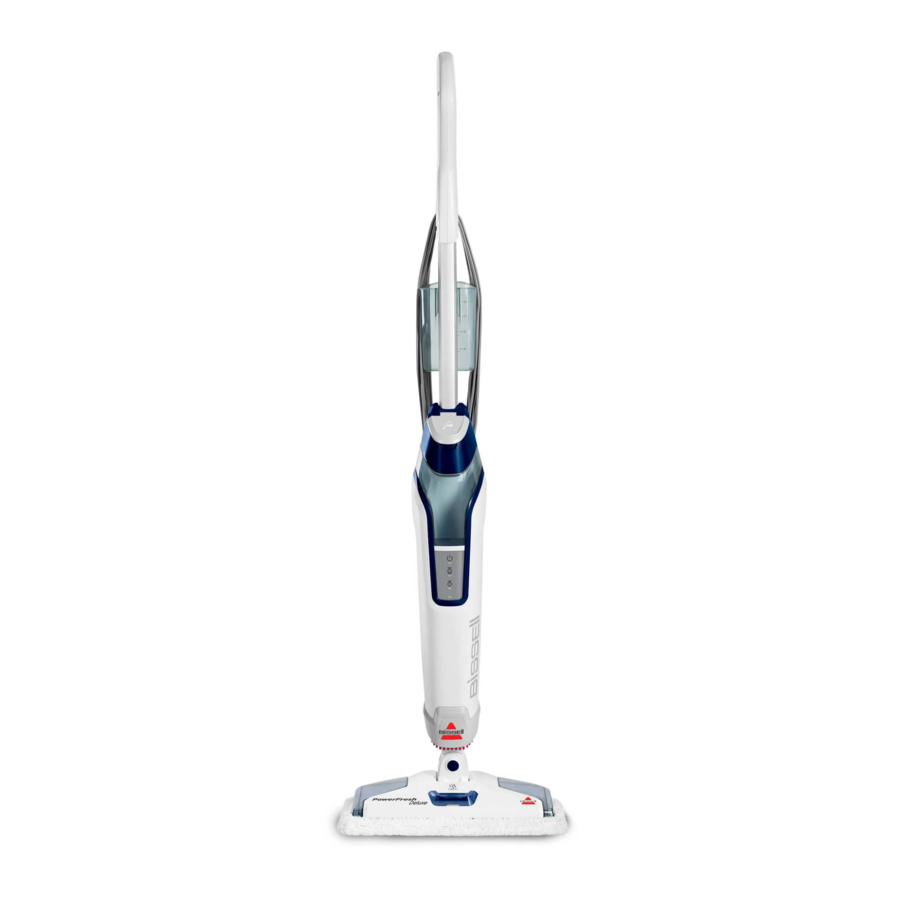

Product Overview

Handle
In-Use Cord Clip
Quick Release™ Cord Wrap
Water Tank
Smart Set Steam Control
SpotBoost™ Scrubbing Steam Brush

Mop Foot Release Lever
Scent Disc Tray
Removable Mop Foot
Microfiber Mop Pad

Meet your new BISSELL product!
Go to support. BISSELL.com for a comprehensive walkthrough of your new purchase, including videos, tips, support, and more. Want to get started right away? This guide has all the information you need to set up your new product. Let's take a look.

What's in the Box?

Standard accessories may vary by model. To identify what should be included with your purchase, please refer to the "Carton Contents" list located on the carton top flap.


Handle	Body	Mop Foot	Screw	Soft Mop Pad (may be attached to foot)	Scrubby Mop Pad(s) (may be attached to foot)	Scent Discs (varies by model)	Carpet Refresher Tray (select models only)

Assembly

Go to support. BISSELL.com for assembly videos.
Required for Assembly

Phillips-head Screwdriver

Attach lower body to mop foot by snapping into place.

Insert handle into body of unit and screw until tightened.

Wrap cord. To easily unwrap, turn the Quick Release Cord Wrap down.

Getting Ready to Clean

Note: Use of distilled water in place of tap water is recommended for optimal steam performance and to prolong the life of your steamer.
To add a fresh scent as you clean, try BISSELL® Demineralized Waters in scents like Citrus, Eucalyptus Mint and Spring Breeze. Do not use chemicals in the water tank of your machine. Other solutions may harm the machine.


Choose your mop pad. Soft Pad: Best for everyday use on delicate flooring like sealed hardwoods and laminate. Scrubby Pad: Best for more durable flooring like tile, scrubbing heavily soiled floors or cleaning tougher messes.	To attach mop pad, wrap mop pad around the bottom of the foot, making sure the gray stitching is located on the front of the foot and the Quick Grip Release^™ Tab is located on the back.	Optional: Add scent disc. Use a whole disc or cut in half. To insert scent discs, pull the tray on top of mop head. Load disc and reinstall tray.

Lift the water tank cap straight up to open.	Using measuring cup, slowly pour 560 mL (19 oz) of water into the water tank.	Close the water tank cap after filling.

Steam Cleaning & Sanitizing

Your handheld steam cleaner was tested by third-party laboratories under controlled conditions to ensure it sanitizes and kills 99.9% of germs, bacteria and viruses, including Coronavirus and Influenza viruses*. Please use as directed; your results may vary.

Cleaning Tips

Before using your steam mop to clean and sanitize*, thoroughly sweep or vacuum floor.
Your steam mop is designed to clean hard flooring such as ceramic tile, laminate, marble, stone, and sealed hardwood floors. Use of your steam mop on waxed or some unwaxed floors may result in a diminished glossiness. The steam mop is not for use on unsealed floors. For best results, test in an inconspicuous area and check the care instructions from your flooring manufacturer.


Plug the machine into a properly grounded outlet. The Steam Ready light will start to blink. Wait 30 seconds for machine to heat up until light turns solid. Note: During first use or after refilling the water tank, the pump may make a "knocking" sound. This is normal and will diminish after a few seconds.	Press the STEAM ON/OFF button to turn machine ON.	Press your desired steam level button. High Steam: For cleaning durable floors or tough, stuckon or sticky messes. Low Steam: For delicate floors or for light, everyday cleaning.

To begin cleaning, step on the back of the mop foot to recline the body of the machine. Note: Pedal on back of machine is to remove mop foot and is not a reclining lever.	To sanitize an area of your floor, use the microfiber mop pad and slowly and evenly move machine back and forth at least three times over the area using continuous steam. Remove the mop pad after use and wash.	When finished cleaning, turn the machine OFF by pressing the power button. Unplug the unit.

*Kills 99.9% of Human Coronavirus (Strain 229E), Influenza A Virus (H1N1), Staphylococcus aureus, Klebsiella aerogenes, and Aspergillus niger when used as directed. Testing conducted in a third-party laboratory under controlled conditions. Results may vary.

Using the SpotBoost™ Scrubbing Steam Brush for Tough Messes


Step on the pedal on the back of the machine, lifting up and away from the mop foot to expose the SpotBoost Brush.	Move back and forth to easily clean grout, crevices and scrub away stuck-on or sticky messes.	Tip: Turn off the machine before and after using SpotBoost Brush to prevent from coming into contact with steam.

Using Carpet Refresher Tray
Note: Always be sure a mop pad is in place before placing in carpet refresher tray. Only soft mop pads should be used with the carpet refresher. Do not use carpet refresher on spots or stains, or glide it over the same spot for longer than 20 seconds.
This product is not intended to be used as a carpet cleaner, only a carpet refresher. Never attempt to use steam mop on carpet or rugs without the carpet refresher tray in place. Move steam mop with carpet refresher tray attached in a continuous motion until you are finished. DO NOT leave mop in a stationary position.


Place mop head, with soft mop pad attached, in carpet refresher tray.	Refresh carpet or rugs by moving steam mop with carpet refresher tray attached in a continuous back and forth motion and gently glide over carpet or rug, releasing steam as you go. Note: The steam mop rests in the carpet refresher tray and may pull out. If this happens simply place the mop head back in to the tray.	When your finished refreshing your carpet or rugs, turn the power OFF, unplug the steam mop and remove from carpet or rug.

After-Cleaning Care


Turn OFF and unplug the machine from the grounded outlet.	Carefully remove mop pad using the Quick Grip Release Tab from the mop head. Note: Mop pad, mop foot and lower assembly may be hot.	Mop pads can be machine washed in warm water. Use only non-bleach liquid detergents. Do not use fabric softeners or bleach. For best results, air dry.

Remove the scent disc from the scent disc tray or replace as needed.	Wipe all surfaces of the machine with a soft cloth.	Store upright in a protected, dry area.

Troubleshooting

Below are some of the issues you may run into. If you don't see the issue you're experiencing below, visit support. BISSELL.com.

Problem	Possible Cause	Remedies
Reduced steam OR no steam	Water tank empty.	Refill tank.
	Steam level not selected.	Wait until Steam Ready light stops blinking and is solid, push the POWER ON/OFF button and then select the desired steam level button.
	Scented disc tray not installed properly.	Push the scented disc tray all the way into the unit until it's flush.
	ON/OFF button not pressed.	Wait until Steam Ready light stops blinking and is solid and then push the POWER ON/OFF button.
	Mineral deposits from hard water caused clog.	Contact BISSELL Consumer Care at support. BISSELL.com or call 1-800-237-7691
Streaking	Dirty mop pad.	Remove and wash pad per instructions before further use.
	Use on waxed or oiled floor.	If you have used floor polishes or wax on your floors, steam products may decrease glossiness. Refer to the wax or polish manufacturer. If you don't wax or polish your floors, check the floor care instructions from your flooring manufacturer.
Leaking	Mop pad is too wet.	Remove and replace with dry mop pad.
	Steam level is too high.	Lower the steam level.
	Crack in unit or water tank.	Check to see if there are any cracks on the unit or tank and check to make sure the rubber gasket on the tank is still attached and seated properly in the unit.

We're Waggin' Our Tails!
BISSELL proudly supports BISSELL Pet Foundation® and its mission to help save homeless pets. When you buy a BISSELL® product, you help save pets, too. We're proud to design products that help make pet messes, odors and pet homelessness disappear.
Visit BISSELLsavespets.com to learn more.

But wait, there's more!
Join us online for a complete guide to your new product, including troubleshooting, product registration, parts, and more. Go to support.BISSELL.com.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.
When using an electrical appliance, basic precautions should be observed, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

Children should be supervised to ensure that they do not play with the appliance.
If the cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Use extra care when cleaning on stairs.
Do not use with damaged cord or plug.
Do not use outdoors.
Always turn off this appliance before connecting or disconnecting the nozzle. Do not direct steam at people, animals or at electrical outlets.
Do not expose to rain.
Store indoors.
Unplug from outlet when not in use and before conducting maintenance or troubleshooting.
Do not leave steam cleaner unattended.
Do not expose hair, loose clothing, fingers, or body parts to openings or moving parts.
Do not service steam cleaner when it is plugged in.
Do not handle steam cleaner with wet hands.
Do not use steam cleaner if it has been dropped, damaged, left outdoors or dropped into water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or expose cord to heated surfaces.
Do not unplug by pulling on cord.
Do not use appliance in an enclosed space filled with vapor given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.
Do not allow to be used as a toy.
Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet, or other delicate, steam-sensitive materials.
Do not immerse in water or liquid.
Not for space heating purposes.
Do not use for any purpose other than described in this user guide.
Use only manufacturer's recommended attachments – use of attachments not provided or sold by BISSELL may cause fire, electric shock or injury.
Never put descaling, aromatic, alcoholic, detergent, or vinegar products into the steam cleaner, as this may damage it or make it unsafe for use.
Unplug by grasping the plug, not the cord.
Close attention is necessary when used by or near children.

SAVE THESE INSTRUCTIONS
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
COMMERCIAL USE OF THIS UNIT VOIDS THE MANUFACTURER'S WARRANTY.

THIS APPLIANCE HAS A POLARIZED PLUG
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not change the plug in any way.
