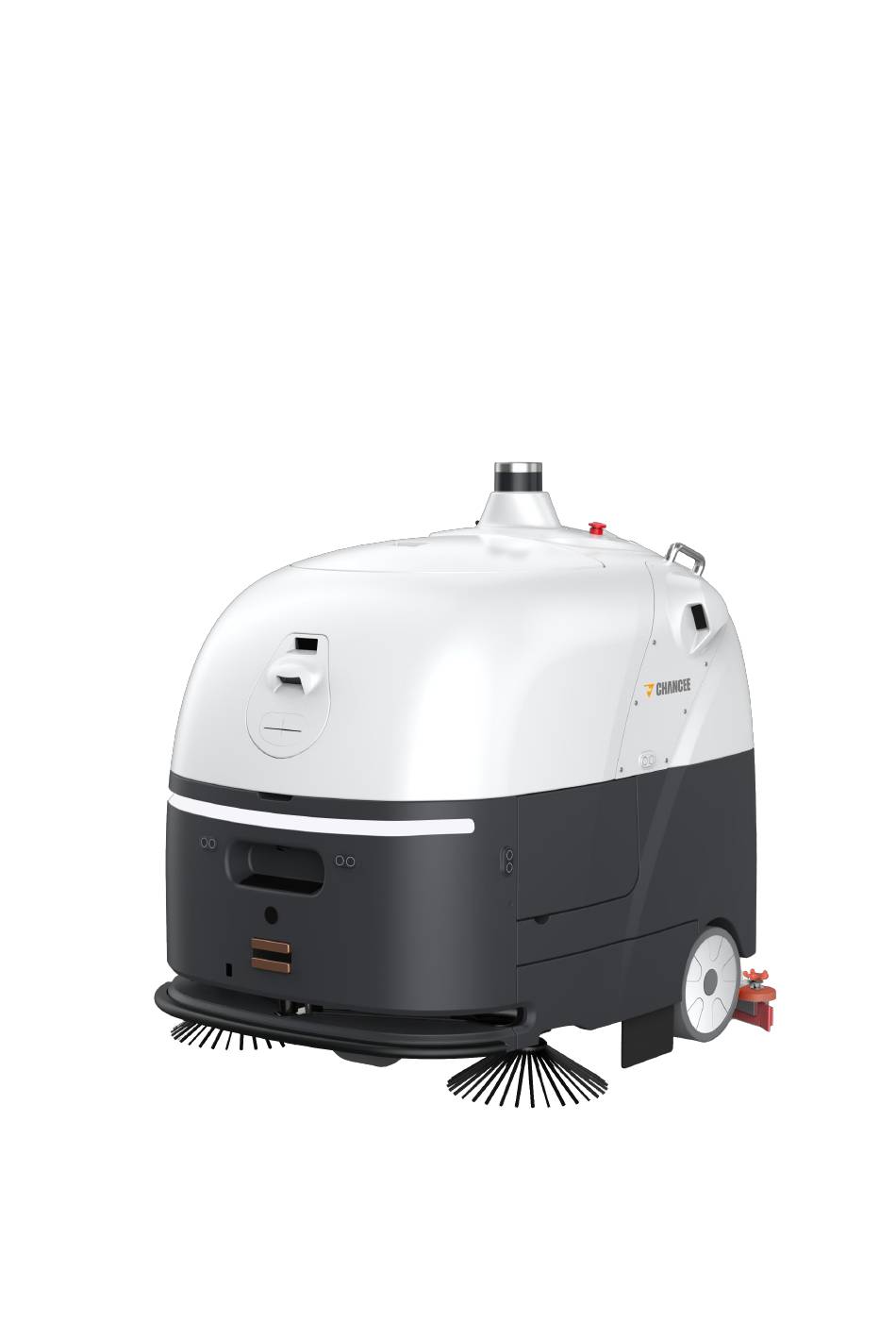

- Page 1 Autonomous Driving Floor Scrubber Chancee Series SC80P user Manual It is strictly prohibited to use this equipment without reading this manual.
- Page 2 Preface Sincerely thank you for purchasing the Chancee SC80P autonomous driving floor scrubber (hereinafter referred to as “the product ”).To achieve the best cleaning effect and prolong the service life of the floor scrubber, please read the instructions in this manual carefully before operating and maintaining the floor scrubber, and follow the instructions strictly.
-
Page 3: Table Of Contents
Contents 1. Safety Precautions ...........................- 1 - 1.1 Safety Guidelines ........................- 1 - 1.2 Precautions for use ......................... - 3 - 1.3 Maintenance Matters ......................- 3 - 1.4 Safety signs ..........................- 4 - 2. Product Overview ........................... - 5 - 2.1 Product Instruction ......................... -
Page 4: Safety Precautions
●If the floor scrubber has been installed with accessories or supplies that are not authorized by Chancee as errors may occur in the operation due to the use of such supplies or accessories; ● Do not use the floor scrubber in unsuitable environments, grounds or areas with possible falling objects. - Page 5 ● In emergencies where the floor scrubber needs to be stopped right away, press the red Emergency stop button immediately; ●On slopes ≤10。, to avoid danger, push the floor scrubber with at least two people; ●On floors that may cause slippage, to avoid danger, make sure that the floor scrubber moves at a slow speed;...
-
Page 6: Anti-Freeze Protection
1.2 Precautions for use 1.2.1 Chancee SC80P is only suitable for normal use in standard scenarios. please do not operate it on uneven and soft floors, nor use it in scenarios with poor floor conditions, such as places with a lot of garbage, pits, etc. -
Page 7: Safety Signs
For man-made damage, maintenance fee will be charged according to the standards of our company. please refer to the after-sales service policies of Chancee. 1.3.2 After the warranty period, you can choose to extend the warranty or pay for maintenance. -
Page 8: Product Overview
2. Product Overview 2.1 Product Instruction Chancee SC80P is a general -purpose smart floor scrubber , which integrates scrubbing, sweeping and mopping. It can autonomously perform multiple tasks such as sweeping, scrubbing, and mopping on various grounds in various. With functions such as accurate environmental sensing, automatic charging, automatic, water filling / draining, sewage filtration and recycling, ect., it can... -
Page 9: Product Parameters
● Automatic charging & automatic water filling and drainage ● Task Reports & Data Dashboards, Smart Voice & Minimal Interaction ● Scheduled shifts & Timed 0peration , Cloud 0peration & Butler Service 2.3 Product Parameters Chancee SC80P Product Core Specification Description Category Specification item Specific value... -
Page 10: Structure Description
anti-drop transmission Sensor, IMU, wheel speed meter Screen Screen size 10 inc Side brush speed 200 rpm specifications Battery Endurance time 4~6h Operating noise 70dB specifications Battery capacity 36V 200Ah Roller brush diameter 100mm 3. structure Description 3.1 component Names - 7 -... -
Page 11: Terminology Explanation
3.2 Terminology Explanation ● control Screen At the central part of the operation panel of the Chancee SC80P floor scrubber, there is a touch screen,which is automatically loaded with the floor scrubber APP after the floor scrubber is turned on. Through the APP, users can carry out operations such as mapping and creating tasks,and can have manual control over the floor scrubber through the APP. -
Page 12: Operation Introduction
Emergency stop button works normally. 4. Operation Introduction This chapter is mainly for the personnel who directly operate or manage the Chancee SC80P floor scrubber.Those who directly operate the floor scrubber need to know how to control the floor scrubber to move, execute cleaning tasks, fill the water tanks, drain the recovery tank, charge the... -
Page 13: Turn On And Move The Machine
4.1 Turn on and Move the Machine 4.1.1 The Chancee SC80P autonomous driving floor scrubber is too large to move when it is off, please turn it on with the key switch first. If it is still off, please check whether the main power switch has been turned on. -
Page 14: Automatic 0Peration
steering of the floor scrubber. Operation steps are as follows: (1)30 seconds after turning on the floor scrubber with the key, the floor scrubber will enter the vehicle APP; ⑵As shown in the picture below, the login interface will appear on the screen. select the corresponding user name among the login options, and then enter the corresponding password to enter the APP. - Page 15 completed, and set the desired cleaning mode cleaning times. After completing the settings, click the [start Task] button at the bottom right corner of the page. The floor scrubber will carry out the task automatically according to the selected task, the cleaning mode and the cleaning times.
-
Page 16: Stop The Machine
In the Task Information bar on the right side of the Automatic 0peration page, you can select the cleaning times of the task by clicking the "+", button. The floor scrubber will then execute the task you have selected repeatedly until the selected cleaning times have been met. (5) Select the cleaning Mode: In the Task Information bar on the right side of the Automatic 0peration page, you can select the cleaning... -
Page 17: Manual Drainage
⑶Turn the key inserted into the 0n/0ff keyhole on the control panel from 0n to 0ff to turn off the floor scrubber, so as to stop the floor scrubber from moving. 4.6 Manual Drainage During floor cleaning, if the APP indicates that the recovery tank is full, it means that the sewage in the recovery tank of the floor scrubber has reached its limit capacity. -
Page 18: Data Management
Turn the key from On to Off to shut down the power, and then charge the floor scrubber. （3）Please use the original charger of the Chancee. （4） After the floor scrubber is fully charged, perform proper operations in-strict accordance with the following order. -
Page 19: Map Editing
5.3 Map Editing (1)At the bottom left of the Map Management main interface: w click the [Rename] button to rename the map. ⑵Click the [stop Point] button to bind the map to the stop point. After the map is bound to the stop point, the floor scrubber will automatically return to the stop point if there is no operation for a long time after the automatic operation is completed. - Page 20 .Add speed bumps to the map.In automatic driving, before the floor scrubber passes the speed bumps, it will lift its roller speed Bump brushes, side brushes and squeegee in advance and stop watering to prevent the speed bumps from damaging the cleaning equipment.
-
Page 21: Task Management
⑶In terms of adding zones/ line segments, select [Add], drag the map, and draw a line segment. click [Add] again, and draw another line segment to delineate different shapes on the map. click the [Finish] button after delineating the desired zones/line segments. (4)I n terms of adding function points, drag the map to the location to be marked. -
Page 22: Combo Task
Later when the floor scrubber executes its task, it will carry out the cleaning along the path that it has traveled in the teaching. (2)Teaching Auto-fill: If you select the type "Teaching Auto-fill" for the task, after entering the name of the completed task, you,ll enter the Teaching Fill Recording page. -
Page 23: Path Planning Considerations
6. Maintenance suggestions 6.1 Daily Maintenance when using the Chancee SC80P floor scrubber, the operator needs to carry out simple maintenance on the floor scrubber before and after each use, periodically carry out the necessary inspection and maintenance, and regularly replace the consumables to ensure the best performance of the floor scrubber and maximize the service life. -
Page 24: Daily Maintenance And Care
Daily Maintenance and care (1) Drain the water in the solution tank and the recovery tank, and clean the water tanks with a hose or a spray gun. Make sure that the water tanks are clean inside out, prevent the accumulated dirt from blocking the recovery tank, and at the same time, avoid spilling water elsewhere. -
Page 25: Description Of Consumables
(6) If the roller brushes have worn down to the red bristles, please replace them. 6.2 Description of consumables The main consumables of the Chancee SC80P include the absorbent strip, roller brushes, water stopper,wire filter, etc.Their replacement cycles vary according to the floor materials of the use scenarios. -
Page 26: Recovery Tank Waste Container Maintenance
recommended to flush the wire filter everyday after operation to avoid poor drainage; Maintenance method: remove the wire filter from the recovery tank and brush it under the faucet or flush it with a high-pressure water gun. see the picture below. 6.5 Recovery Tank waste container Maintenance Material: LDPE Maintenance standard: Everyday after operation... -
Page 27: Water Tank Maintenance
See the following chart. 6.8 Water Tank Maintenance Each time after the cleaning task is finished, carry out necessary maintenance on the water tank: empty the sewage in the recovery tank, and rinse the water tank with clean water; take out the wire filter of the recovery tank and rinse it, and remove the waste container of recovery tank and clean it with a brush. -
Page 28: Troubleshooting
7. Troubleshooting The floor scrubber may not work as you expected. we have summarized the most common problems based on the data feedback from technical support, and provided effective ways to troubleshoot and solve the problems. You can refer to the following chart to troubleshoot the problems immediately when they occur. - Page 29 The red Emergency stop button on the control Please turn the red Emergency stop button panel has been pressed,which has triggered clockwise to restore the motion function of the emergency braking of the floor scrubber floor scrubber. and caused it unable to move. In the cleaning mode on the control panel, the Go to the cleaning Mode settings on the APP pressure of the roller brushes is in a lifted state.
- Page 30 If it is, the charging is normal. if it is off or charge charging. flashing, the charger is working abnormally. Please contact Chancee technical support for repair. If the charger works normally,but the percentage The batteries are damaged and cannot be of battery power does ot increase with the charged properly.
- Page 31 If you have tried all the solutions to the above problems, but the problems still exist, or if you encounter a problem that is not listed above, please contact Chancee after-sales service in time for further assistance. Thank you for your support.
-
Page 32: Warranty Card
Warranty Card Client Name Telephone Mail address Bill No. Machine Purchase time Code Product model Date Replace accessories Faults description - 29 -...
