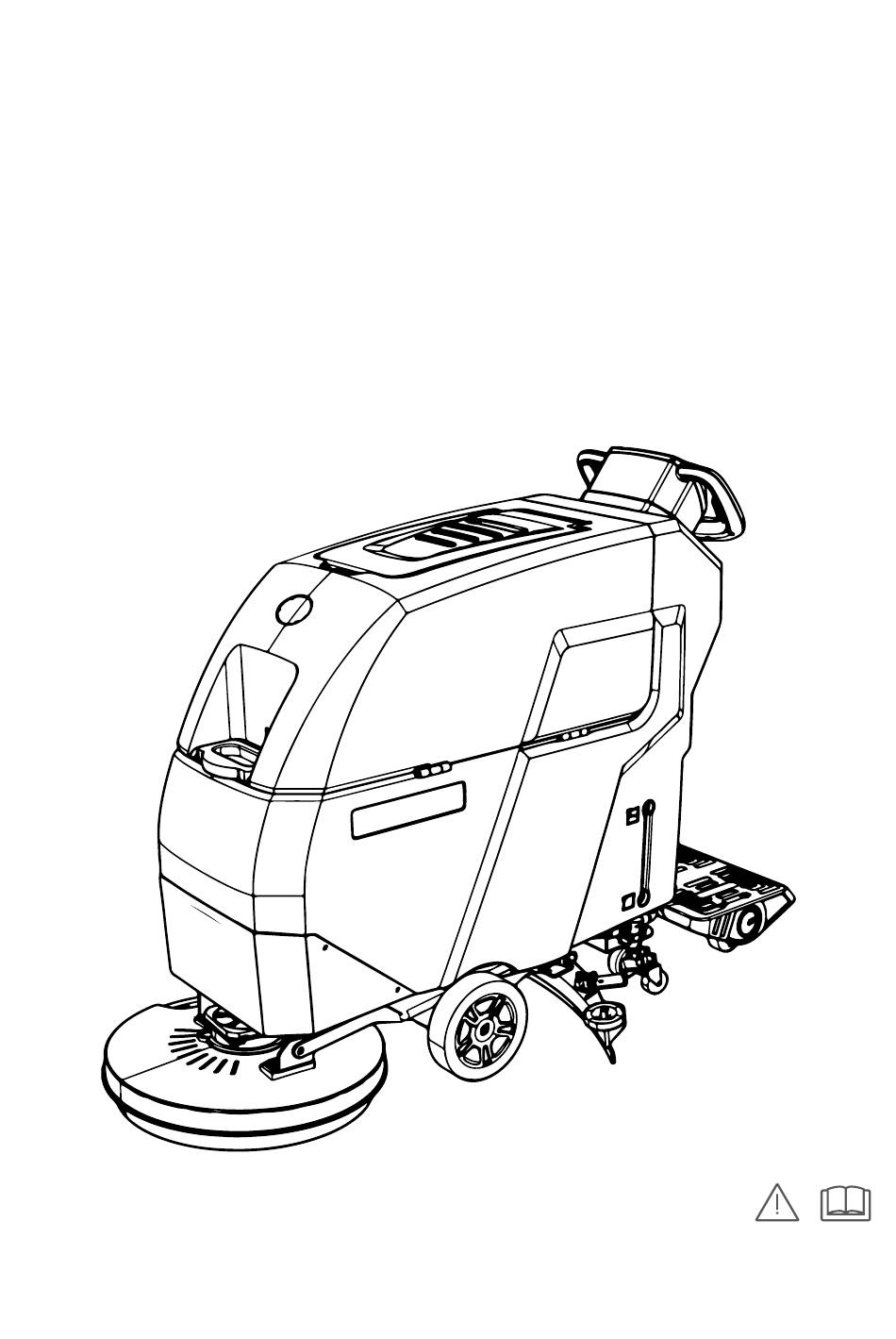

- Page 1 XMD46-45W STAND Stand-on Floor scrubber Operation Instructions 01/2024 Do not use this device without reading this manual.
-
Page 3: Safety Precautions
Preface Thank you for choosing our cleaning equipment. We are confident to provide you with this equipment, which is produced through the latest technology and strict quality control. This manual is designed to help you understand the equipment operation and maintenance, so you can have a more comfortable and efficient product experience. -
Page 4: Table Of Contents
Contents Chapter 1 Product Introduction ......................................1 1.1 Applicable scenarios ......................................1 1.2 Equipment Overview ......................................1 1.3 Controlling panel and buttons....................................2 1.4 List of accessories ........................................2 1.5 Consumables and optional accessories ................................. 2 Chapter 2 Installation .......................................... 3 2.1Installing the squeegee ...................................... -
Page 5: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Applicable scenarios This equipment can be used in a variety of scenarios, including commercial and industrial places, such as hotels, schools, hospitals, industrial offices, supermarkets, office buildings, etc.; for epoxy floors, PVC floors, terrazzo, wear-resistant floors, tiles and cement floors, wooden floors, rubber floors, different floors can be cleaned with brush plates made of different materials. -
Page 6: Controlling Panel And Buttons
1.3 Controlling panel and buttons. Name Function ① Fault indicator When the driving axle fails, this light will be on ② Voltage display meter Display the battery level and real-time voltage of the device Push the lever forward and the machine will move forward; push the lever backward and the ③... -
Page 7: Chapter 2 Installation
Chapter 2 Installation 2.1Installing the squeegee Warning Please carefully disassemble the outer package to avoid damage to the machine shell. It is recommended to keep the packaging boxes after receiving the goods so that the machine can be repackaged during later product transportation or return or exchange. -
Page 8: Chapter 3 Inspection And Adjustment Before Use
Chapter 3 Inspection and adjustment before use 3.1 Inspection 3.1.1Check clean water level Caution Please ensure that there is sufficient water and avoid using the suction motor when there is no water. Otherwise, the motor may take in dust. In severe cases, the noise of the suction motor will become louder, or the suction power will be insufficient. -
Page 9: Adjustment
3.2 Adjustment 3.2.1 Adjustment of the squeegee Adjustment of the squeegee: Turn the nuts on the universal wheel of the squeegee to raise and lower the squeegee slightly. The wheels on both sides need to be adjusted to the same height of that of the squeegee, and the rubber strips must fully touch the ground. -
Page 10: Discharging Sewage
Step 5: Turn on the brush plate switch to let it rotate. Step 6: Turn on the air suction function switch, the suction motor will start to work. Hold the handle and push the machine forward, then you can start cleaning. -
Page 11: Chapter 5 Cleaning And Maintenance
Chapter 5 Cleaning and maintenance Proper cleaning and maintenance will increase the service life of your machine, so please check and clean the machine regularly！ 5.1 Cleaning Check and clean the wheel set and remove entangled objects. Clean the sewage tank and sewage tubes regularly and use water to flush the dirt in the tank and blockages in the tubes. Clean the dirt under the rubber strips regularly and wipe the strips with a cotton rag. -
Page 12: Replacement And Installation Of Rubber Strips
Install the brush plate clockwise and Turn off the power. Raise the brush plate. remove the brush plate counterclockwise. The cleaning pad must be soaked in clean water before using it for the first time for 10-15 minutes. A dry scouring pad will damage the floor. 5.2.2 Replacement and installation of rubber strips Park the machine on a flat ground, turn off the key switch, and ensure that the machine is in a power-off state. -
Page 13: Chapter 6 Transportation And Storage
Chapter 6 Transportation and Storage 6.1 Transportation If the machine and corresponding accessories need to be lifted, it is recommended that you put them on a pallet and then lift them up with a forklift. Clean water and sewage must be drained when transporting the machine. During transportation, to prevent various situations from slipping and damage caused by collisions, it is necessary to ensure that the binding is firm, the center of gravity is stable, and the driving safety is ensured. -
Page 14: Chapter 7 Common Problems
Chapter 7 Common Problems Problem Phenomenon/Part Troubleshooting method Solution If the charger is not connected to the machine, see whether the green light will be on. If the machine is Charging failure Replace the charger plugged in, the red light is on, and the built-in fan of the Charging failure charger does not run Charging interface... -
Page 15: Chapter 8 Technical Parameters
Chapter 8 Technical parameters Category Wired Wireless Cleaning width 500mm 500 mm Squeegee width 825mm 825 mm Continuous working time 2-3h 2800 ㎡/h 3300 ㎡/h Theoretical working efficiency Battery capacity 24V/100Ah Suction motor power 600W 400W Brush plate motor power 550W 550W Driving motor power...
