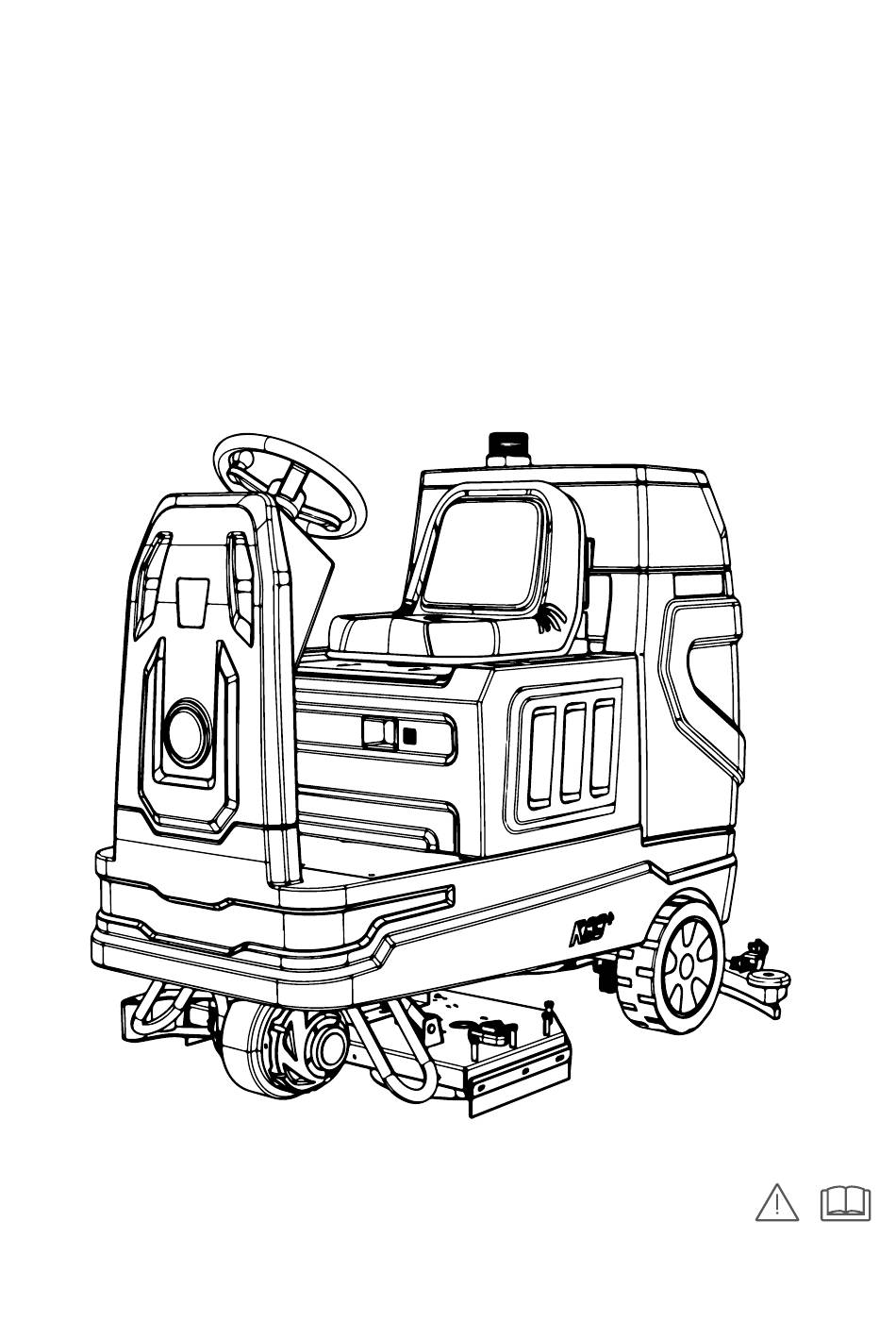

- Page 1 K88+ Ride on Floor Scrubber Operation Instructions 11/2023 Do not use this device without reading this manual.
- Page 3 Preface Thank you for choosing our cleaning equipment. We are confident to provide you with this equipment, which is produced through the latest technology and strict quality control. This manual is designed to help you understand the equipment operation and maintenance, so you can have a more comfortable and efficient product experience.
-
Page 4: Table Of Contents
Contents Chapter 1 Product Introduction ......................................1 1.1 Applicable scenarios ......................................1 1.2 Equipment Overview ......................................1 1.3 Controlling panel/Buttons..................................... 2 1.4 Accessories List ........................................2 1.5 Consumables and Optional Accessories ................................3 Chapter 2 Unloading and assembling the machine................................3 2.1Installing the squeegee ...................................... -
Page 5: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Applicable scenarios This equipment can be used in a variety of scenarios, including commercial and industrial places , such as hotels, schools, hospitals, industrial offices, supermarkets, office buildings, etc.; for epoxy floors, PVC floors, terrazzo, wear-resistant floors, tiles and cement floors , wooden floors, rubber floors, different floors can be cleaned with brush plates made of different materials. -
Page 6: Controlling Panel/Buttons
1.3 Controlling panel/Buttons. Name Function ① Forward and backward switch Control the machine to move forward/ backward ② Scrubbing switch Start and stop floor scrubbing ③ Sewage suction switch Start and stop sewage suction ④ Horn switch For whistling ⑤ ECO switch Economic mode ⑥... -
Page 7: Consumables And Optional Accessories
1.5 Consumables and Optional Accessories The consumables of this equipment are listed in the table below. When any of them is worn, you need to purchase or replace it. This equipment can cope with different scenarios through different optional accessories, which you can purchase through suppliers or manufacturers. Consumables Optional Accessories Pad holder... -
Page 8: Chapter 3 Inspection And Adjustment Before Use
Chapter 3 Inspection and adjustment before use 3.1 Check the battery. After turning on the power key switch, the battery meter will display the current voltage of the battery. When the voltage is about 21V, please charge it in time. Caution During the use of the battery, deep discharge will cause the battery capacity to decrease and its life to be shortened. -
Page 9: Chapter 4. Operation Instructions
Chapter 4. Operation instructions 4.1 Driving Step 1: Turn on the main power key switch of the machine. Step 2: Press and hold the lever switch to move the machine forward and backward； Step 3: When you need the machine to stop, release the lever until the machine comes to a complete stop. Caution When the machine needs to be moved backwards or changed places, the brush plate and squeegee should be raised off the ground to avoid wear of the brush plate and deformation of the rubber strips or squeegee sheet metal parts. -
Page 10: Discharging Sewage
4.3 Discharging sewage Step 1: Drive the machine to a site that meets the sewage discharge standards, stop the machine, and turn off the power. Step 2: Remove the sewage tube from the clamp at the rear of the machine, place it downwards, open the tube cover, and discharge the water. The inner wall of the tank can be appropriately rinsed with clean water. -
Page 11: Chapter 5 Cleaning And Maintenance
lower than 32V, it means that the power is insufficient and needs to be charged in time. When maintaining the battery, please wear protective gloves to avoid contact with acidic substances of the battery. Check whether the battery connection wire is worn and whether the contacts are loose and replace it if necessary; the battery terminals should be kept clean and dry, without debris and dust covering them, otherwise it will be extremely detrimental to the battery, and in serious cases, it will burn the battery. -
Page 12: Replacement And Installation Of Rubber Strips
Then the magnetic iron ring will attract the brush plate to complete the installation. Caution There are two types of cleaning pads with different hardness. Choose the more suitable one according to the site. Replacing the pad holder: The pad holder can be purchased through our company's platform. The specific replacement is to place the cleaning pad at the bottom of the pad holder and make them fit firmly. -
Page 13: Adjustment Of The Rubber Strips
5.2.4 Adjustment of the rubber strips Step 1: Lower the squeegee assembly to observe whether the strips can touch the ground. Step 2 Push the machine to check whether the rubber strips are slightly bent. Step 3: If there is a gap between the rubber strips and the ground, you can adjust the component upward through the squeegee universal wheel. Step 4: If the rubber strips are too close to the ground, you can adjust the component downward through the universal wheel. -
Page 14: Chapter 7 Common Problems
Chapter 7 Common Problems Problem Phenomenon/Part Troubleshooting method Solution If the charger is not connected to the machine, see whether the green light will be on. If the machine is Charging failure Replace the charger plugged in, the red light is on, and the built-in fan of the Charging failure charger does not run Charging interface... -
Page 15: Chapter 8 Technical Parameters
Chapter 8 Technical parameters Category Numerical value Cleaning width 850mm Squeegee width 1200mm Continuous working time 4-4.5h 6200 ㎡/h Theoretical working efficiency Battery capacity 24V/200Ah Suction motor power 650w Brush plate motor power 450W*2 Driving motor power 850W Clean water capacity 130L Sewage capacity 150L...
