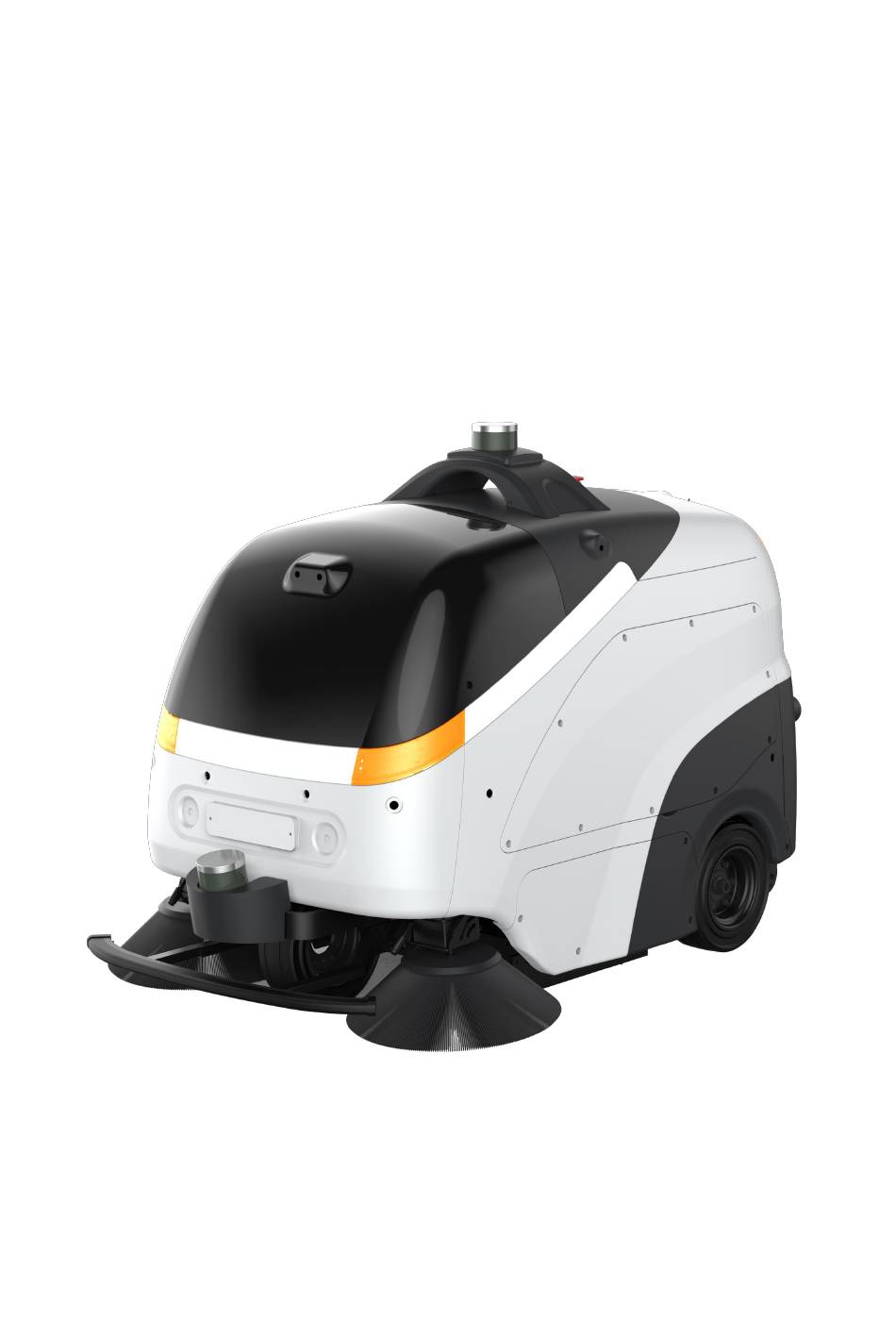

- Page 1 Autonomous Driving Floor Scrubber Chancee Series S100-N user Manual It is strictly prohibited to use this equipment without reading this manual.
- Page 2 Preface Sincerely thank you for purchasing the Chancee S100-N autonomous driving floor scrubber (hereinafter referred to as “the product ”).To achieve the best cleaning effect and prolong the service life of the floor scrubber, please read the instructions in this manual carefully before operating and maintaining the floor scrubber, and follow the instructions strictly.
- Page 3 Caution read the instructions before using the machine. This machine is not intended for use by persons (including children) with reduced physical. This appliance contains batteries that are non-replaceable. Machines left unattended shall be secured against unintentional movement. WARNING Operators shall be adequately instructed on the use of these machines. WARNING Always ensure that safety support is installed before working beneath hopper.
-
Page 4: Table Of Contents
目录 1.Instructions for use ..........................4 1.1 Sweeping Restrictions ......................- 1 - 1.2 Use Requirements ........................- 1 - 1.3Safety ............................- 2 - 2.Product Introduction ........................- 3 - 2.1 Packaging List ........................- 3 - 2.2 product Dimension ......................... - 3 - 2.3 Component Names ......................... -
Page 5: Instructions For Use
1.1 Sweeping Restrictions 1.1.1.The product shall only be used as a sweeping tool. If it is used for any purpose beyond the functions specified in this instruction manual, Chancee shall not be liable for any damage caused therefrom. 1.1.2.The product can sweep common garbage, but not ropes, ribbons, toxic and harmful substances, or very hot materials. -
Page 6: Safety
1.3.5. For safety, ensure that the vehicle is charged in waterproof conditions. 1.3.6. It is strictly forbidden for any third-party other than Chancee to disassemble the vehicle, unless they have been authorized by Chancee. The user shall be responsible for any consequences arising from unauthorized disassembly. -
Page 7: Product Introduction
2.Product Introduction 2.1 Packaging List 2.2 product Dimension Length*Width*Height: 1706 mm* 927 mm * 1199 mm (excluding protruding part of the side brushes)* width * Height: 1706 mm*927 mm*1199 mm (excluding protruding part of the side brushes) - 3 -... -
Page 8: Component Names
2.3 Component Names If the [Emergency stop] button on the matching vehicle is pressed, the remote control will not be able to control the horizontal and vertical directions of the vehicle; that is, it will not be able to make the vehicle advance, retreat, or turn. If the remote control is not used for a long time (2 minutes), the remote control will enter sleep mode. - Page 9 4. Once successfully matched, press the [Mode] button of the remote controller. When the two red lights of the remote controller [LED] are on at the same time, the remote control is ready. Component Name Button Functions Button Function - 5 -...
-
Page 10: Product Parameters
2.4 Product Parameters Rated Power 1000W 395Kg Sweeping Width Operating Hopper Volume Max speed 5Km/h Voltage Capacity Charging Main Brush Max slope -15°~10° D300*W590mm Time Dimension Sweeping Efficiency Runtime 5h-8h Working noise 73dB Max 5000m²/h Peak Battery Solid rubber 200Ah Vehicle wheel Overall3000m²/h Capacity... -
Page 11: Pre-Use Preparations
3.2Pre-use preparations Before the product is formally used, a series of preparation and verification processes need to be carried out. 1. After the product unpacking and basic examination,please prepare the following information: a. Areas you need to sweep. b. Specific location of function areas. Function areas include vehicle parking positions, charging positions, garbage dumping positions, and water injection positions. -
Page 12: Charge
1.If no physical or financial losses have occurred at the scene, and the vehicle is normal, release the emergency stop button to allow the product to continue to executing the commands on the control panel. 2.If there is a need for on-site communication, please call our customer service number and ask our staff for the necessary services. -
Page 13: Inspection And Maintenance
Steps to add water 1.Insert one end of the water injection pipe provided with the vehicle into the water filling nozzle at the bottom of the engine, and connect the other end to a faucet, as shown on the right. 2. -
Page 14: Regular Maintenance
Check the diameter of the main brush. Check the sweeping effect of the main brush. Inspection cycle 1 week 1 week 1 week 1 month 1 month Maintenance methods If installation is abnormal, please contact the after-sales. If installation is abnormal, please contact the after-sales. If installation is abnormal, please contact the after-sales. - Page 15 Inspection cycle 2 Weeks 2 Weeks Maintenance methods When the diameters of side brush is ≤300mm， replace the side brush. Adjust the side brush tilt angle and mounting angle. If the conveyor belt is loose, it needs to be tightened again, if the conveyor belt is broken, it needs to be replaced.
- Page 16 Methods to replace main brush conveyor belt 1. Remove the right skirt board of the vehicle. 2. Loosen the compression bolts of the cantilever of the conveyor belt,s tightening pulley so that the tightening pulley no longer presses the conveyor belt. 3.
-
Page 17: Inspect Vehicle Braking Function
4. Remove the bolts that secure the filter element on the right-side board, and then take off the filter element. 5. Replace with a new filter element. 6. Re-install the right-side board. 7. Re-install the repair board on the right side of the vehicle. Methods to replace dust shield 1.Loosen the set bolts and take off the worn or damaged dust shield. -
Page 18: After-Sale Services
4.4 After-sale Services Software services If the environment in which the product is used changes, especially if the road environment changes so that the autonomous driving function of the product is affected, please contact our customer service staff. Hardware services If the product fails, please contact our customer service. -
Page 19: Warranty Card
4. Damages caused by inappropriate operation in violation of the instruction manual or use beyond the specification capacity. 5. Damages caused by force majeure. 5.3.2The following conditions will not be considered damages and are excluded from the warranty services. Phenomena caused by wear and tear or long-term use. Warranty Card Name Tell... - Page 20 - 16 -...
