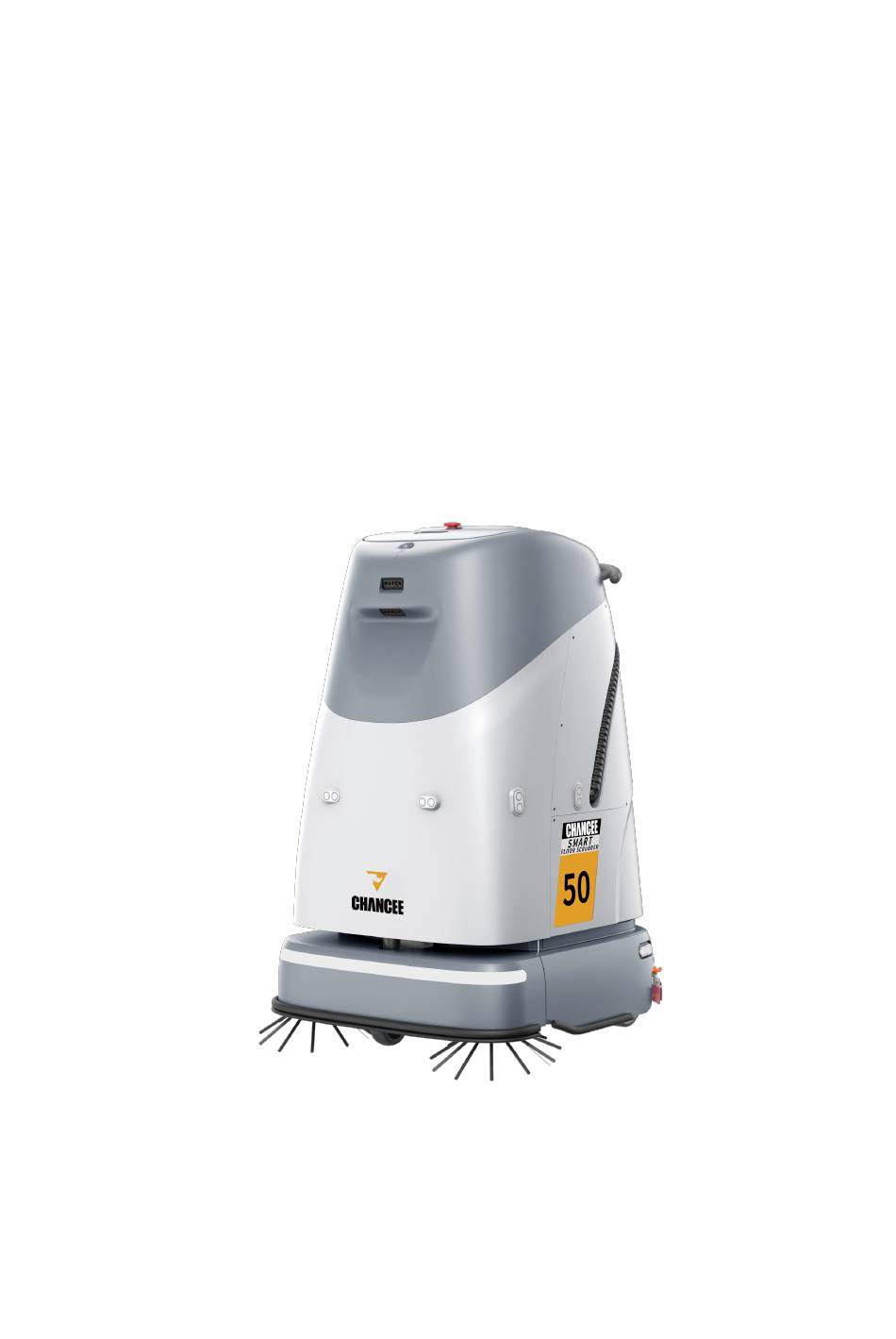

- Page 1 Autonomous Driving Floor Scrubber CHANCEE Series SC50 User Manual It is strictly prohibited to use this equipment without reading this manual.
- Page 2 Preface Sincerely thank you for purchasing the CHANCEE SC50 autonomous driving floor scrubber (hereinafter referred to as “the product ”). To achieve the best cleaning effect and prolong the service life of the floor scrubber, please read the instructions in...
-
Page 3: Table Of Contents
Content 1. Product Overview ........................- 1 - 1.1 Product Instruction ......................... - 1 - 1.2 Product Features ........................- 1 - 1.3 Introduction of Product Application ..................- 2 - 1.4 Introduction of Components of the Floor Scrubber ............... - 3 - 2. -
Page 4: Product Overview
1. Product Overview 1.1 Product Instruction CHANCEE SC50 is a general-purpose smart floor scrubber launched by CHANCEE Technology , which integrates scrubbing, sweeping and mopping. It can autonomously perform multiple tasks such as sweeping, scrubbing, and mopping on various grounds in various. -
Page 5: Introduction Of Product Application
6. A variety of efficient cleaning methods such as coverage cleaning, cleaning of missed areas, and break point resuming. · Stable and Safe Autonomous Driving 1.360-degree blind spot-free perception, first-class fusion perception and fusion positioning technology; 2.Extremely fast, automatic and efficient mapping, supporting map expansion and automatic update;... -
Page 6: Introduction Of Components Of The Floor Scrubber
components include solution tank, recovery tank,trash can, rolling brushes, side brushes, squeegee, etc. The main components of the floor scrubber are shown in the pictures below. 1.4 Introduction of Components of the Floor Scrubber ·Control Screen At the central part of the operation panel of the SC50 floor scrubber, there is a touch screen, through which the users can have human-computer interaction. - Page 7 ·Main Power Switch The main power switch of the floor scrubber is the direct switch for battery external output. When the floor scrubber is not used for a long time, the main power switch should be turned off. ·Forced Manual Button Open the battery compartment cover of the SC50 floor scrubber, you will see a forced manual button.
- Page 8 Note: Press the Emergency Stop button with care. Press the Emergency Stop button to stop the floor scrubber immediately only in emergencies.In manual mode and automatic mode, the Emergency Stop button works normally. ·Side Brush Side brushes are mainly used for floor cleaning. By gathering the garbage on both sides to the middle of the floor scrubber, the side brushes can expand the cleaning area, especially the cleaning edges, which can be cleaned effectively through the side brushes during edge cleaning.
- Page 9 The trash can collects the garbage on the floor during cleaning.The trash can should be cleaned regularly to avoid the overflowing garbage blocking the squeegee as the trash can is too full. Open the side panel of the floor scrubber to remove and install the trash can.
- Page 10 ·Manual Sewage Hose The manual sewage hose is a pipeline used in manual sewage discharge. ·Light Strip There is a light strip at the bottom of the floor scrubber that indicates the vehicle status and gives prompts of human-computer interaction during normal or abnormal operation. The display and prompts of the light strip are as follows: Light display Vehicle status...
-
Page 11: Data Management
The USB port,the Ethernet port and the CAN port are the debugging ports. Except for copying data with USB, other functions should be carried out by professional debugging and after-sales personnel. 2. Data Management In [Settings], the data of the floor scrubber can be managed in a unified way.Data management is mainly aimed at the building,editing and management of maps and tasks in the process of actual task execution. - Page 12 You can drive the floor scrubber around manually in the environment,during which time the laser sensor will detect the surroundings and create a high-precision map based on the collected environment data. 2.After the mapping process is finished, please click [Save Map];if you are not satisfied with the map currently built, click the [Back] button in the upper left corner to cancel the saving.
- Page 13 automatically return to the stop point if there is no operation for a long time after the automatic operation is completed. 3.Click the [Edit] button to edit the current map. In the newly opened Map Editing interface, you can add various map elements to the map. ①Function points Types of function points Description...
- Page 14 ③Function zones Map Elements Description Add carpeted zone to the map In automatic driving, before the floor scrubber passes the speed bumps, it will lift its roller brushes, side brushes and Carpeted Zone squeegee in advance before the carpeted zones, and stop watering to avoid damaging the carpets.
-
Page 15: Task Management
② In the [Map Elements] of the right Edit bar, select the elements to be edited. ③In terms of adding z ones/ line segments, select [Add],drag the map, and draw a line segment. Click [Add] again, and draw another line segment to delineate different shapes on the map. - Page 16 ①Teaching: If you select the type "Teaching" for the task, after entering the name of the completed task, you will enter the Teaching page. Manually drive the floor scrubber around, during which time the floor scrubber will record its own traveling path in real time.
- Page 17 ③Hand-drawn Auto-fill: If you select the type "Hand-drawn Auto-fill" for the task, after entering the name of the completed task, you'll enter the Hand-drawn Task Recording page. Select multiple points in the map to form a closed-loop z one, and confirm to complete the zone. It will automatically work out the path in the closed-loop zone to fill the entire z one, so that the floor scrubber's path can automatically cover the zone.
-
Page 18: Operation Guide And Description
Added Tasks whether the added tasks meet the requirements, and click the [Save] button to save the added tasks to the List of Combo Tasks. Note: Only the combo tasks can be selected and executed in [Automatic Operation]. Path Planning Considerations No overly pronounced grooves or bumps in the path lines (especially sharp-edged ·... -
Page 19: Add Water/Discharge Water
support manual driving even though it is not performing tasks . Do not push the floor scrubber by force, otherwise it may cause damage to the motor. ②Manual and automatic mode switching : There are two ways to switch between manual and automatic modes. -
Page 20: Sewage Filtration System
3.3 Sewage Filtration System To ensure that the machine can operate uninterruptedly for a longer period of time and to maximize water saving, the SC50 has been developed with large water tanks and added with a sewage filtration recycling function, which allows for the recycling of sewage. - Page 21 corresponding user name among the login options, and then enter the corresponding password to enter the APP. ③ After logging in successfully, a reminder of the floor scrubber's status will pop up as below, which will display the current water tank status, remaining service life of consumables and other information.
-
Page 22: Automatic Operation
3.5 Automatic Operation First, move the floor scrubber to the location where the operation should be carried out. In the APP main interface, click the [Automatic Operation] button to enter the Automatic Operation interface shown as below. In this interface, you can choose to add in advance the task to be completed, and set the desired cleaning mode and cleaning times. - Page 23 ②Select Task: On the left side of the Start Automatic Operation page, you can view the executable tasks in the current map. By switching to different tasks, the covered cleaning areas of the selected task will be displayed in the map synchronously. Select the task you need to execute by the task name, and then click the [Start Task] button.
- Page 24 ④ Set t he Cleaning Times: In the Task Information bar on the right side of the Automatic Operation page, you select the cleaning times of the task by clicking the "+", button. The floor scrubber will then execute the task you have selected repeatedly until the selected cleaning times have been met.
-
Page 25: Stop The Machine
3.6 Stop the Machine There are multiple ways to stop the machine. ①In case of emergencies, directly press the red Emergency Stop button on the control panel to immediately stop the floor scrubber. At this point, the machine will not be powered off but will stop the operation. -
Page 26: Charging
back to normal again. At this time, put the drainage hose back to its proper place, and then drive the floor scrubber to the area to be cleaned and start the operation. ④If you want to discharge the water in the solution tank altogether, you can pull out the rubber plug at the bottom of the solution tank, the water in the solution tank will be discharged automatically. -
Page 27: Maintenance Suggestions
4. Maintenance suggestions When using the CHANCEE SC50 floor scrubber, the operator needs to carry out simple maintenance on the floor scrubber before and after each use, periodically carry out the necessary inspection and maintenance, and regularly replace the consumables to ensure the best performance of the floor scrubber and maximize the service life. - Page 28 effect. Keep the surface clean, so as to reduce wear and tear and prolong its service life. ⑤Trash can cleaning: After daily operation, dump out the garbage in the trash can on the front side of the roller brushes to prevent odor; ⑥...
-
Page 29: Description Of Consumables
④Check whether there is strange sound in the whole structure that affects the normal use. ⑤Apply grease to squeegee pulleys and other frequently rotating or rubbing areas. ⑥If the roller brushes have worn down to the red bristles, please replace them. 4.2 Description of consumables The main consumables of SC50 include the absorbent strip, roller brushes, water stopper, filter element, etc. -
Page 30: Recovery Tank Waste Container Maintenance
Maintenance standard: Everyday after operation (if the sewage filtration function is not activated or the filter element is not installed, maintenance and cleaning is not necessary); Maintenance method: Rinse away the sewage in the filter element tank, and flush the filter element with clean water to wash away the dirt on the surface. -
Page 31: Water Tank Maintenance
4.9 Water Tank Maintenance Each time after the cleaning task is finished, carry out necessary maintenance on the water tank: empty the sewage in the recovery tank, and rinse the water tank with clean water; take out the wire filter of the recovery tank and rinse it, and remove the waste container of the recovery tank and clean it with a brush. - Page 32 ⑧In the event of long-term storage, make sure to charge and discharge the batteries every 30 days. ⑨Please use the matching or recommended professional lithium battery charger. ⑩ Please stop using the batteries if there are noticeable abnormalities such as abnormal smell, discoloration, noise, liquid leakage, or serious deformation.
-
Page 33: Troubleshooting
5. Troubleshooting The floor scrubber may not work as you expected. We have summarized the most common problems based on the data feedback from technical support, and provided effective ways to troubleshoot and solve the problems. You can refer to the following chart to troubleshoot the problems immediately when they occur. - Page 34 to move. It is on automatic mode. Need to switch to manual mode manually. The red Emergency Stop button on the control Please turn the red Emergency Stop button panel has been pressed, which has triggered clockwise to restore the motion function of the emergency braking of the floor scrubber and floor scrubber.
- Page 35 The water suction pipe is in poor connection or Check whether the suction pipe is normally it has been blocked by unknown objects. connected to the front part of the absorbent strip and the recovery tank, and whether there is any blockage.
-
Page 36: Safety Precautions
CHANCEERPLUS, as errors may occur in the operation due to the use of such supplies or accessories; ⑥do not use the floor scrubber in unsuitable environments, grounds or areas with possible falling objects. If you have any questions, please contact the CHANCEE after-sales service . 2.Before turning on the floor scrubber: ①Check whether there is enough power to complete the task;... - Page 37 ④Check whether there is enough water in the solution tank to complete the task; ⑤Check whether the water level of the recovery tank is close to or reaches the high limit; ⑥Check whether the Emergency Stop button is working properly. 3.Precautions for manual operation: ①In non-manual cleaning, please lift the brush assembly and squeegee of the floor scrubber;...
-
Page 38: Precautions For Use
③ Please do not modify the floor scrubber, change its original design or configuration without permission. Any modification to the machine requires the authorization from the manufacturer； 6. In transporting the floor scrubber: ①The power must be cut off during the transportation of the floor scrubber. Do not touch the laser and other sensors directly, otherwise it will directly affect the operation of the floor scrubber;... -
Page 39: Maintenance Matters
2. If there is a lot of glass or other transparent materials and obstacles around the use environment, it will cause malfunction of the sensors. It is not recommended to use the floor scrubber in such environment; 3.If there are places or objects less than 5cm above the floor in the working environment, please move the objects away or draw virtual walls to separate the objects or places from the working environment;... -
Page 40: Safety Signs
6.4 Safety Signs Instructions and safety signs of CHANCEE SC50 have been indicated below.Please refer to and follow the safety regulations to avoid danger . If the user fails to operate the floor scrubber safely in accordance with the chart below , the loss and risk to the company or individual shall be borne by the user. -
Page 41: Product Parameters
7. product parameters CHANCEE SC50 product core specification Description category specification item specific value Dimension 800(L)X700(WW)X1200(H) mm vehicle weight 180 kg Total weight 200 kg Rated Power 720 W Maximum travelspeed 1 m/s vehicle specification verticalheightofsurmountab 1.5 cm le obstacle... - Page 42 Solution tank capacity Recovery tank capacity Cleaning Width of edge cleaning 5 cm specifications Trash can size 1.5L Air-suction volume 2.08m3/min Vacuum degree 18.18 kpa Roller brush speed 800/900/1000 rpm Roller brush overrun Side brush speed 800/900/1000 rpm Operating noise 70dB Roller brush diameter 100mm...
- Page 43 - 40 -...
- Page 44 - 41 -...
