Summary of Contents for Prolitec AIRQ AQ310

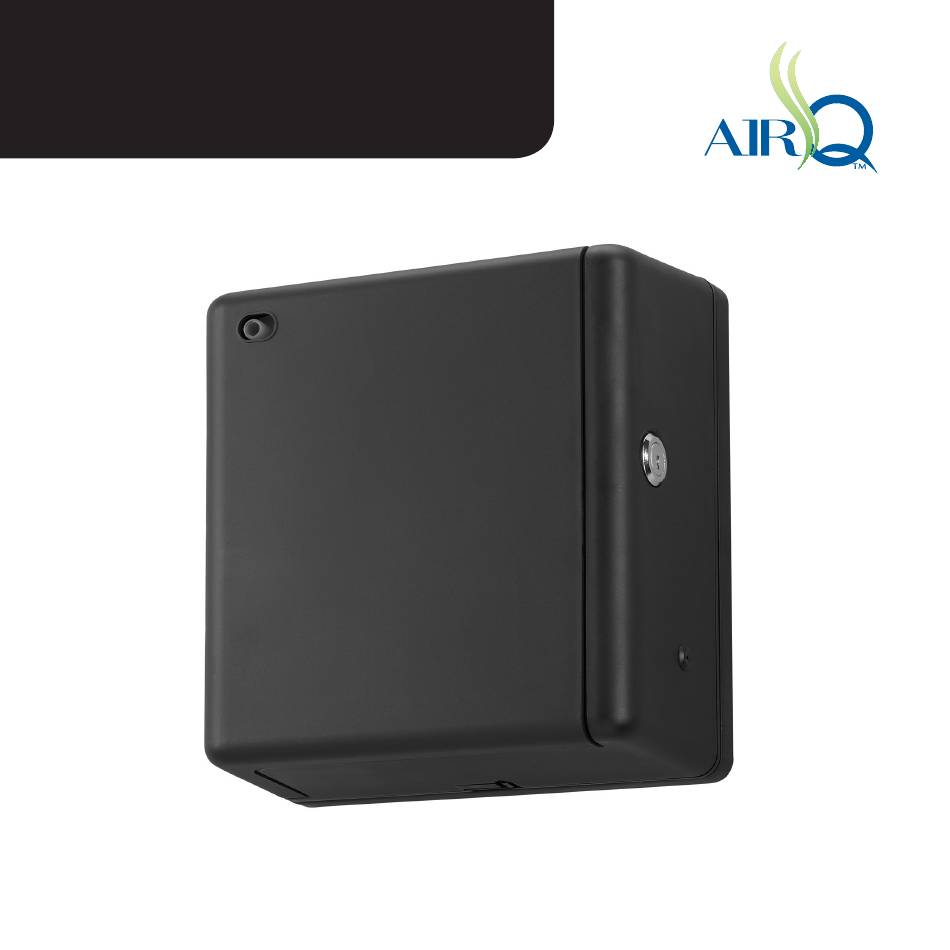

- Page 1 AQ310 User Guide by Prolitec Original Instructions Revised Feb. 03, 2015...
- Page 2 ©2015 Prolitec, Inc.
-
Page 3: Table Of Contents
Table of Contents About AQ310 ........................2 Unpacking ........................... 3 MOVING AND STORAGE INSTRUCTIONS ................. 5 INSTALLATION ........................5 General..........................5 Estimating Cartridge Life ....................6 Room-Size Table ......................7 Appliance Location ......................7 Wall-Mounting AQ310 ..................... 8 OPERATING INSTRUCTIONS ................... 15 Features and Controls .................... -
Page 4: About Aq310
About AQ310 Welcome to a whole new world of air treatment from Prolitec, the technology leader in air care with scent. The AQ310 appliance is the most advanced commercial air-treatment system on the market today. It is the world’s first fully adjustable commercial air-treatment system engineered to serve indoor spaces ranging in size from 200 to 30,000 cubic feet (10 to 850 cubic meters). -
Page 5: Unpacking
This is not an accident. The scientists and engineers at Prolitec are committed to the highest ecological and human safety standards. - Page 6 Unpacking...
-
Page 7: Moving And Storage Instructions
MOVING AND STORAGE INSTRUCTIONS 1. Remove the cartridge. 2. Unscrew and remove the long round-head screws in the lower corners. 3. Lift the appliance upward, off the mounting posts. 4. Unplug the appliance 5. Unscrew the mounting plate. 6. Store at -4°F (-20°C) to 158°F (70°C), 5% to 95% humidity INSTALLATION General 1. -
Page 8: Estimating Cartridge Life
INSTALLATION Estimating Cartridge Life Estimating how long a cartridge will last and the number of days between services is critical to performing an installation that can be serviced efficiently. This includes determining the number of AQ310s needed for a space. Here is the formula and table for making this determination. -
Page 9: Room-Size Table
2. Air currents in a room are determined by using a SMOKE TEST KIT available from Prolitec or any source of smoke or vapor, such as a candle or match. 3. To conduct a smoke test, stand at the entrance of the room in front of the door and observe the direction of the smoke or vapor. -
Page 10: Wall-Mounting Aq310
INSTALLATION See Figure 1. If the smoke drifts out of the room,the AQ310 appliance should be placed on the wall furthest from the door. See Figure 2. If there is no clear direction that the smoke travels or it travels upward into the air-conditioning return grill, find a position near the air-conditioning supply grill. - Page 11 INSTALLATION In some locations local codes or rules require that the main power source be located beside the appliance. This will require an AQ310 hardwiring kit. If the appliance is PERMANENTLY CONNECTED in this way, a readily accessible disconnect device must be used. Consult with your electrician. If it makes sense to plug the appliance into an outlet that is near but not behind the appliance, a rectangular, plastic wire-concealment conduit should be used.
- Page 12 INSTALLATION Step 3 – Position the Mounting Bracket Place the mounting bracket directly over the power outlet (if hardwired or plugged elsewhere, position the mounting bracket to the side of the power source). Use the level to make sure the mounting bracket is horizontal. While holding the bracket level, use a pointy tool, screw or screwdriver to mark the location of the top two wall anchors.
- Page 13 INSTALLATION Step 4 – Installing the Top Anchors Set the mounting bracket aside. Use an electric drill to make a " hole at the exact location you marked. This will serve as a guide for the anchors. Use a hammer to tap the anchors in far enough so they stay well in position.
- Page 14 INSTALLATION Step 6 – Drilling the Bottom Anchor Holes Drill a " hole as the guide for the anchors at the exact spot you have marked. Hammer the anchors in just enough to set them in place, then screw them in straight.
- Page 15 INSTALLATION NOTE: Remember that the standard installation is to position the appliance right over the power source, storing the power-supply block and the power cord in the recess in the back of the appliance (US version only). To make this easy, do not untie the power cord and take just enough wire to make the connection.
- Page 16 INSTALLATION Step 10 – Mounting the Appliance in Place Now unlock and open the door and insert the long round-head screws into the holes in the lower corners and into the anchors. Tighten the screws firmly.
-
Page 17: Operating Instructions
OPERATING INSTRUCTIONS Features and Controls Output Ports Lock Air Stem Fragrance Cartridge Programming Panel... -
Page 18: Setting Up The Cartridge
OPERATING INSTRUCTIONS Setting Up the Cartridge 1. Use the key to unlock and open the door. 2. Prepare the cartridge. • Remove the big plug from the air-intake port (a) on the flat surface (back side) of the top of the cartridge. •... - Page 19 OPERATING INSTRUCTIONS 3. Insert the cartridge into the recess so that the air-intake port fits over the white air stem. 4. After inserting the cartridge, insert the 1-inch plastic tube into the cartridge through the port on the top of the appliance. (Remove tube when changing cartridge.)
-
Page 20: Programming The Appliance
OPERATING INSTRUCTIONS 5. If the appliance has been previously programmed (see Programming the Appliance below), simply press the power button, close and lock the door. Programming the Appliance 1. Unlock and open the door. 2. Turn on the power by pressing the ON/OFF button in the upper left corner of the control panel. -
Page 21: Setting Scent Intensity
OPERATING INSTRUCTIONS 2. Consult the Room-Size Table on page 7 to give you a level (1 to 50). THIS IS ONLY A STARTING POINT. 3. Press the power button on. Turn the dial to Program and set the intensity level with the + /–... -
Page 22: User Maintenance
USER MAINTENANCE Cartridge Change When the reservoir is empty the cartridge needs to be changed. As noted in the Installation section, it is best to install the number of AQ310s so that, at the setting they need to run to adequately treat the space, the cartridge will last for the number of days between planned services. -
Page 23: Cartridge Change Maintenance Checklist Items
USER MAINTENANCE 5. Inspect the o-rings on the air stem for breakage or deterioration. Replace as needed. 6. Remove the large plug and the plug from the Output Port you wish to use (top or front), insert the new cartridge and replace the top blue tube or the front output shroud if you are using them. -
Page 24: General Care
USER MAINTENANCE 3. Keeping the appliance flush with the wall, slide it up to unlock the top holders and remove the appliance. Leave the mounting bracket in place. 4. Install a new appliance by reversing Step 3. General Care • AQ31 is an electronic appliance. -
Page 25: Applications
There are four basic applications for AQ310: ambient scenting, scent media, odor control and aromatherapy. These applications are different in terms of their objectives, but they all employ the same combination of Prolitec’s proprietary air-treatment chemistry and AQ310 computer-controlled delivery system. -
Page 26: Scent Media
• Clubs and Bars Scent Media Scent Media is Prolitec’s name for the use of scent as a medium of communi- cation in advertising and promotion of certain products for which scent is a primary element or feature. Presenting the scent of a scented product to customers at the point of sale is the most powerful way to sell any product with a scent including fine fragrances;... -
Page 27: Odor Control
This means both employees and customers. AQ310 and Prolitec’s proprietary odor-remediation chemistry are capable of blocking the human ability to detect most malodors and replacing these odors with pleasant scents. -
Page 28: Aromatherapy And Performance Scenting
AQ310 and Prolitec aromatherapy chemistry can help make a workspace a more comfortable and appealing place to be. As examples of the positive effect of aromatherapy on the workplace, below are results of several relevant studies: •... -
Page 29: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS Appliance Precautions: 1. WARNING – When using electric products, basic precautions should always be followed, including the following: • Read all the instructions before using the product. • To reduce the risk of injury, close supervision is necessary when a product is used near children or pets. - Page 30 GFCI outlet on a regular basis. Fragrance Cartridge Precautions • Use only AirQ by Prolitec fragrance cartridges. • Read the Consumer Product Safety Information Sheet and the Material Safety Data Sheet provided with each shipment of Cartridges. Insure that these infor- mation sheets are available for review by employees.
-
Page 31: Frequently Asked Questions (Faqs)
Frequently Asked Questions (FAQs) How does AQ310 work? AQ310 uses a recently patented technology to convert liquid fragrance compounds into tiny droplets less than the diameter of a human hair. By comparison, an 100th aerosol droplet is 100 times bigger and 1,000,000 times heavier. AQ310 droplets present 100 times more surface area to the air being treated, which means much less fragrance is used to create the scent effect. - Page 32 Frequently Asked Questions (FAQs) How do I adjust AQ310? With the power cord plugged in you can adjust AQ310 up and down using the + /– buttons just to the right of the LCD screen. You can see the setting levels (1 to 50) on the right side of the LCD.
- Page 33 Frequently Asked Questions (FAQs) Is AQ310 eco-friendly? Yes, AQ310 is the most eco-friendly air freshener on the market. Unlike aerosols, AQ310 uses no propellants and produces no harmful volatile organic compounds, or VOCs. Unlike many air fresheners, AQ310 uses no ethanol or simi- lar solvents to enhance the evaporation of fragrance chemicals.
- Page 34 Frequently Asked Questions (FAQs) Will AQ310 fragrances stain surfaces or fabric? Yes, all air-care fragrances will stain wood and stone and all fabrics if spilled. The best solution is avoidance by replacing the caps on cartridges after removing them and keeping the caps on all cartridges when not in use. How do I clean up a drip? If there is a drip, blot it as quickly as possible and then clean with soap and water.
-
Page 35: Specifications
Specifications Dimensions: AQ310 Appliance 8 ” x 8 ” x 3 ” (21.9 cm x 22.2 cm x 9.8 cm) Weight: 4.7 lbs (2.2 kg) with full cartridge Power Supply: Input — 100 – 240 VAC at 0.6A Frequency — 50/60 Hz Protection —... - Page 36 Part No. 8530 Prolitec, Incorporated 1235 Canal Street Milwaukee, WI 53223-1667 1-866-387-4333 www.prolitec.com...
