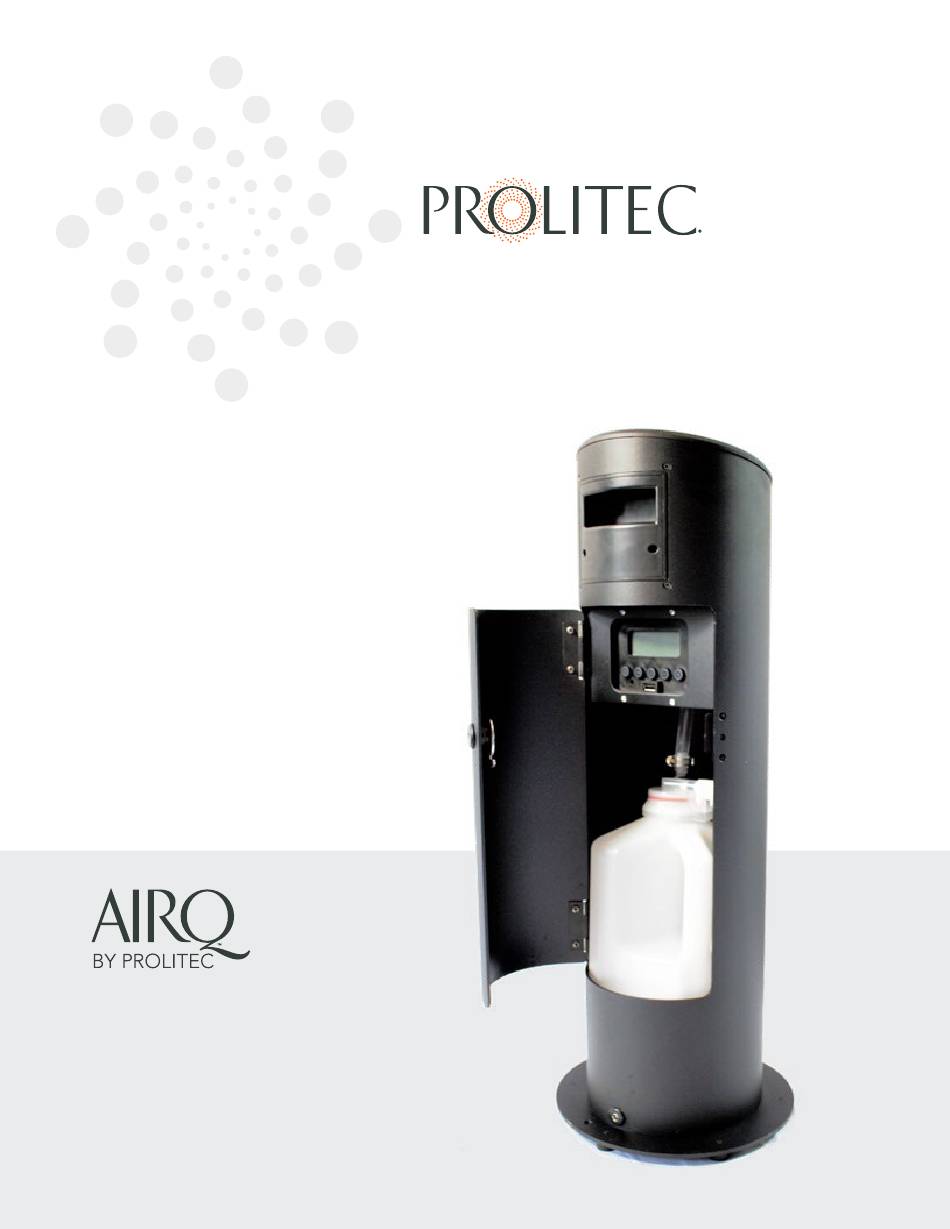

- Page 1 P ERFEC T LY S C E N TE D E N V IR O NM E N TS AirQ 890 Original Instructions Rev. 2022-11-11...
-
Page 2: Table Of Contents
Appliance Precautions Cartridge Change Maintenance Checklist Fragrance Cartridge Precautions General Care FCC Statement – Class B Digital Device Chapter 9: Applications Chapter 2: About AirQ 890 Ambient Scenting Chapter 3: Unpacking Product Marketing Chapter 4: MOVING AND STORAGE Odor Control... -
Page 3: Chapter 1: Important Safety Instructions
If there is any doubt as to whether an outlet box is properly grounded, a qualified electrician should be consulted. • It is recommended that the user remove the appliance from the wall to test and reset the GFCI outlet on a regular basis. AirQ 890 IMPORTANT SAFETY INSTRUCTIONS... -
Page 4: Fragrance Cartridge Precautions
Fragrance Cartridge Precautions • Use only AirQ by Prolitec fragrance cartridges. • Read the Consumer Product Safety Information Sheet and the Material Safety Data Sheet provided with each shipment of Cartridges. Insure that these information sheets are available for review by employees. -
Page 5: Chapter 2: About Airq 890
About AirQ 890 Welcome to a whole new world of air treatment from Prolitec, the technology leader in air care with scent. The AQ890 is the most advanced commercial air-treatment system on the market today. It is the world’s first fully adjustable commercial air-treatment system engineered to serve indoor spaces. - Page 6 This user guide is easy to read. It is also important to read. AQ890 is a high-performance appliance that, installed and used correctly, will meet the most demanding requirements. Table 1. Prolitec AirQ Technology vs. Aerosol Spray Can Technology Parameter...
-
Page 7: Chapter 3: Unpacking
Unpacking Remove the appliance from the container. The following items should be included: 1. AQ890 Appliance 2. Power Supply 3. Key AirQ 890 Unpacking... -
Page 8: Chapter 4: Moving And Storage Instructions
MOVING AND STORAGE INSTRUCTIONS 1. Remove the cartridge. 2. Unplug the appliance. 3. Store at -4°F (-20°C) to 158°F (70°C), 5% to 95% humidity AirQ 890 MOVING AND STORAGE INSTRUCTIONS... -
Page 9: Chapter 5: Installation
The service area range of AQ890 is from 200 to 30,000 cubic (10 to 850 cubic meters). Of course this can vary significantly depending on airflow, number of fresh air changes per hour, temperature, humidity and desired service interval. The AQ890 can be adjusted from 1 to 50 to accommodate these variations. AirQ 890 Installation... -
Page 10: Estimating Cartridge Life
These settings are suggested as a starting point. Start on the lower end of the range and adjust after one hour. Fragrance type, room size, number of fresh air changes per hour, temperature, humidity and user preference will determine the final setting. Best practice is to use AirQ’s ‘S4 Tool’ at ProlitecCSPTools.com. AirQ 890 Installation... -
Page 11: Appliance Location
AQ890 can use, rather than fight, the natural air currents in a room. 2. Air currents in a room are determined by using a SMOKE TEST KIT available from Prolitec or any source of smoke or vapor, such as a candle or match. -
Page 12: Chapter 6: Scenxus Installation
5. Make sure you see both a “ScenXus…” network and the network that will provide internet access to your ScenXus device. 6. Select the network named “ScenXus…” Note: on Android phones, you may need to select “Stay connected,” since the ScenXus device doesn’t have internet access yet. AirQ 890 ScenXus Installation... - Page 13 “manage router” or open a web browser and enter the IP address 10.231.227.81 to see the list of networks. 8. Connect to the network that will provide your ScenXus device with internet access. AirQ 890 ScenXus Installation...
-
Page 14: Accessing The Portal
WiFi signal strength indicator should appear. Accessing the ScenXus Portal 1. Request an account from your admin. 2. Check your email for a confirmation code from admin@scenxus.com. Be sure to check your junk and spam folders. AirQ 890 ScenXus Installation... - Page 15 5. Reset the temporary password you received from your admin using the “forgot password” link. Adding Device to ScenXus Portal 1. Sign in using your email and password. 2. From the “devices” page, click the “add device” button in the upper right. AirQ 890 ScenXus Installation...
- Page 16 Enter location and time zone details of the device. Note: do not use “Detect Location” unless the computer you are using is near the device being added. 4. Click “Add Device” and confirm it was added successfully. AirQ 890 ScenXus Installation...
-
Page 17: Adjusting Settings And Schedules
Adjusting Settings & Schedules 1. From the “devices” page, search for the appliance. 2. Click anywhere on the row to bring up the device details page. 3. Adjust the settings and options by clicking the edit icon. AirQ 890 ScenXus Installation... - Page 18 4. Add schedules using the “edit schedules” icon. Edit each desired schedule individually. Be sure to select “enable” to turn on each schedule. 5. Add connectivity and fragrance alerts using the “add notification” icon. AirQ 890 ScenXus Installation...
-
Page 19: Chapter 7: Operating Instructions
OPERATING INSTRUCTIONS Features and Controls Output Port Lock Air Stem Programming Panel Fragrance Cartridge AirQ 890 OPERATING INSTRUCTIONS... -
Page 20: Setting Up The Cartridge
Place and tighten the plume kit tightly on the cartridge outlet port. If the appliance has been previously programmed, activate preferred setting. If not (see Programming Appliance), press so the backlight turns on, close and lock the door. AirQ 890 OPERATING INSTRUCTIONS... -
Page 21: Programming The Appliance
F”) using • Adjust the status between on (“ ”) and “off” (“ • Press to set the status and the intensity will blink. • Adjust the intensity up or down using AirQ 890 OPERATING INSTRUCTIONS... -
Page 22: Using The Online Usb Programming Tool
Each program set can contain 21 unique programs, which can be turned on or off within the set. • Programs, identified by number 1-21, include a day or days, on/off times, and intensity settings. • The tool will warn the user of overlapping programs. • Programs sets need to be saved. AirQ 890 OPERATING INSTRUCTIONS... - Page 23 Loading or exporting firmware or schedules with a USB stick To load or export firmware or schedules, follow the flow chart below. Note: if there are multiple firmware files, the newest version will be loaded. Exported schedules will overwrite existing schedules on USB. AirQ 890 OPERATING INSTRUCTIONS...
-
Page 24: Setting Scent Intensity
The Last Step 1. Set the appliance to either 24/7 or RUN PROGRAM. 2. Make sure the power is on. 3. Close and lock the door, storing the key in a known place. AirQ 890 OPERATING INSTRUCTIONS... -
Page 25: Chapter 8: User Maintenance
If no plume, set it back to Run Program and change the cartridge. • • If still no plume, try another cartridge just to make sure. If no plume, replace the appliance. • Wipe the unit clean inside and out. AirQ 890 USER MAINTENANCE... -
Page 26: General Care
When shipping, pack in the original box and place it in an outer cardboard box. • Always keep the plugs in cartridges when not in use. Always remove the cartridge from the appliance before moving it anywhere. Otherwise leakage can occur, destroy the unit and the warranty is voided. AirQ 890 USER MAINTENANCE... -
Page 27: Chapter 9: Applications
There are four basic applications for AQ890: ambient scenting, product marketing, odor control and aromatherapy. These applications are different in terms of their objectives, but they all employ the same combination of Prolitec’s proprietary air-treatment chemistry and AQ890 computer-controlled delivery system. -
Page 28: Product Marketing
AQ890 and Prolitec’s proprietary odor-remediation chemistry are capable of blocking the human ability to detect most malodors and replacing these odors with pleasant scents. Prolitec’s proprietary air-treatment chemistry and the accompanying computer-controlled delivery system are rapidly becoming the standard solution for difficult odor issues in several industry sectors. -
Page 29: Aromatherapy And Performance Scenting
The benefits include reduced errors in routine functions, increased employee sense of well being, higher morale, improved customer service and overall improved productivity. AQ890 and Prolitec aromatherapy chemistry can help make a workspace a more comfortable and appealing place to be. As examples of the positive effect of aromatherapy on the workplace, below are results of several relevant studies: •... -
Page 30: Chapter 10: Frequently Asked Questions
How about safety? Is AQ890 safe to use with children and pets? When used as directed, AQ890 is the safest air freshener available. Of course, it is important to read the Material Safety Data Sheets enclosed with each cartridge, which should be stored in a secure, visible location. AirQ 890 FAQs... - Page 31 How do I clean up a drip? If there is a drip, blot it as quickly as possible and then clean with soap and water. AirQ 890 FAQs...
-
Page 32: Chapter 11: Specifications
85% or less Liquid Capacity 1250 mL cartridges 2500 mL cartridges Service Area Up to 30,000 cu. ft. (850 m3) served Prolitec Inc 6750 W Washington St Milwaukee, WI 53214 1-844-247-7599 www.prolitec.com All contents © 2022 Prolitec, Inc. AirQ 890 Specifications...
