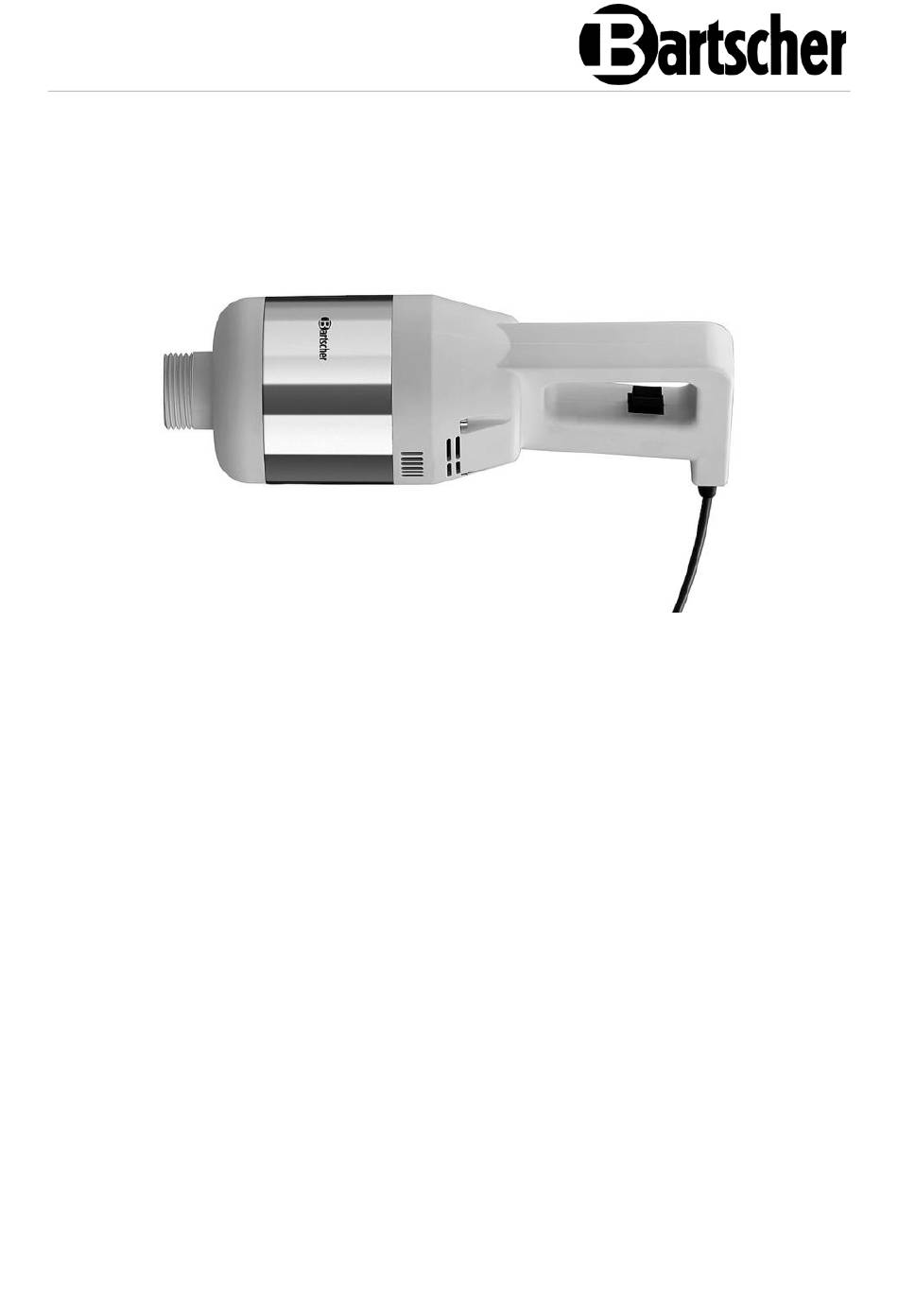

- Page 1 STM3 350 - STM3 450 - STM3 650 130130 - 130131 - 130132...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 3.0 Date of preparation: 2025-04-02...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Residual Risks Stemming from Removal of Fixed Covers, Intervention with Damaged / Worn Parts • Under no circumstances may the user attempt to open or remove the fixed cover or modify the safety elements. • During refilling, maintenance and cleaning, as well as during all other manual activities with the appliance, during which hands or other body parts are introduced into hazardous areas of the appliance, there is a residual risk mainly consisting of:...
- Page 8 Safety • Provide instruction and regular staff training. Pay special attention to and observe the section concerning safety and any safety hints. • Provide suitable personal protective equipment (PPE) • Observe the intervals of maintenance and cleaning. • Document training/instructions, replacement of components. Operating Personnel •...
-
Page 9: Intended Use
Safety Intended Use This appliance is only intended for use described in the operating instructions, with the supplied and approved components. Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator. -
Page 10: General Information
General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Designed for mixing, pureeing and chopping • Control: electronic, knob • Speed control: turbo, 9 levels • ON/OFF switch Name: Stick mixer STM3 350 130130 Art. No.: Material: stainless steel, plastic Maximum rotational speed, in RPMs: 11000 Speed levels: Cord length, in m:... - Page 13 Technical Data Name: Stick mixer STM3 450 130131 Art. No.: Material: stainless steel, plastic Maximum rotational speed, in RPMs: 15000 Speed levels: Cord length, in m: Connected load: 0,45 kW | 230 V | 50-60 Hz Dimensions (W x D x H), in mm: 130 x 190 x 380 Weight, in kg: Name:...
-
Page 14: List Of Components Of The Appliance
Freely selectable combination possibilities: – Motor blocks 130130, 130131, 130132 of different power – Mixing bars 130133, 130134, 130135, 130136 of different lengths (optionally) – 1 whisk 130137 (fits STM3 350) (optionally) Motor blocks 130130, 130131, 130132 Fig. 1 2. Quick coupling 1. - Page 15 Technical Data Mixing bars, whisks (optional equipment) 9. Mixing bar base with blade 10. Mixing bar 11. Immersion mark 12. Mixing bar interlocking ring Fig. 2 13. Whisk 14. Whisk interlocking ring Fig. 3 130130 13 / 30...
- Page 16 Technical Data Optional Equipment for Art. No. 130130, 130131, 130132 Mixing Bar STM3 300 Mixing Bar STM3 400 Material: nickel-chromium steel 18/10 Material: nickel-chromium steel 18/10 Mixing bar length: 300 mm Mixing bar length: 400 mm Blade: Ø60 mm Blade: Ø60 mm, 3 cutters Max.
- Page 17 Technical Data Whisk STM3 245 Wall Holder STM3 WH1 Material: chrome-nickel steel 18/10 Material: chrome-nickel steel 18/10 Whisk length: 245 mm Whisk length: 245 mm Dimensions: W 100 x D 125 x H Dimensions: 140 x D 135 x H 90 mm 365 mm Weight: 0.17 kg Weight: 1.1 kg...
- Page 18 Technical Data 3. switch the appliance off, and after approx. 10 seconds remove it from a container and place on an appropriate surface. Properties of the device allow for the following processing of food products: 1. touching the bottom of a container (with the mixing bar), but the immersion level mark may not, however, be exceeded, 2.
-
Page 19: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing packaging materials, for instance: plastic bags and EPS elements. •... -
Page 20: Assembly And Disassembly
Installation and operation • The power cord should be laid in a way preventing anyone from threading on it or tripping against it. Assembly and Disassembly CAUTION! Any assembly and disassembly of any part of the appliance may be executed only with the motor switched off and the mains plug disconnected. -
Page 21: Operation
Installation and operation The disassembly shall be performed according to the above description, but in reverse order. Wall Holder Practical wall holder allows for motor block storage in easily accessible place while saving space. 1. Fix the wall holder in an accessible location, using suitable studs and screws (the assembly materials are not part of the scope of the supply). - Page 22 Installation and operation – learn about protective and safety devices of the appliance, as well as their location and method of operation. Verifications and Tests Prior to Switching On Verification / Test Procedure Make sure that: Visual inspection is aimed at verification if there are no foreign objects in a pot, such as tools, towels etc., –...
- Page 23 Installation and operation Display / Control Elements Display/But Description Standby display Rotational speed level display, 1–9 Rotational speed level display, Turbo ON/OFF switch (marking on the motor block) Mixing bar Turbo button (maximum rotational speed) Rotational speed increase button Rotational speed decrease button WARNING! Cut wounds hazard! Keep hands and other body parts away from the area, where there is the...
- Page 24 Installation and operation Switching On / Food Processing 1. Clean the appliance and accessories thoroughly before the first use according to instructions provided in section 6 'Cleaning'. 2. Switch the appliance on while observing the following instructions: – positive inspection result with respect to power supply; –...
- Page 25 Installation and operation That setting allows the appliance to operate at full rotational speed, the external display segments illuminate alternately (in turns). 9. Switch the appliance in the order specified below, as soon as the processed products reach the required texture. –...
-
Page 26: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance The operator must ensure that the device and its safety components are kept in good condition. Control and safety systems should be checked for their effectiveness. Maintenance, cleaning and repairs must only be carried out by suitably trained and specialised personnel. -
Page 27: Cleaning
Cleaning and Maintenance Cleaning DANGER! Electric shock hazard! Never put nor place the appliance directly in a sink or under a water tap. Make sure that no water gets into the device. WARNING! Cut wounds hazard! Blade of the mixing rod is very sharp! Never touch the blade of the mixing rod with bare hands! Always use gloves resistant to cutting during cleaning of the appliance. -
Page 28: Maintenance
Cleaning and Maintenance 8. Wipe the appliance body with motor block with a soft, slightly moistened cloth (not soaked) only. 9. Dry the cleaned elements thoroughly with a soft lint-free cloth. 10. To disinfect all surfaces that come in contact with food and areas that might be spattered during operation, use commercially available, food grade cleaning and disinfecting agent. -
Page 29: Possible Malfunctions
Possible Malfunctions 1. Inspect the rubber seal (a) under the blade regularly (Fig. to the right). If the rubber seal (a) is damaged or worn, it must be replaced. Contact the service company. Fig. 8 Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. -
Page 30: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
