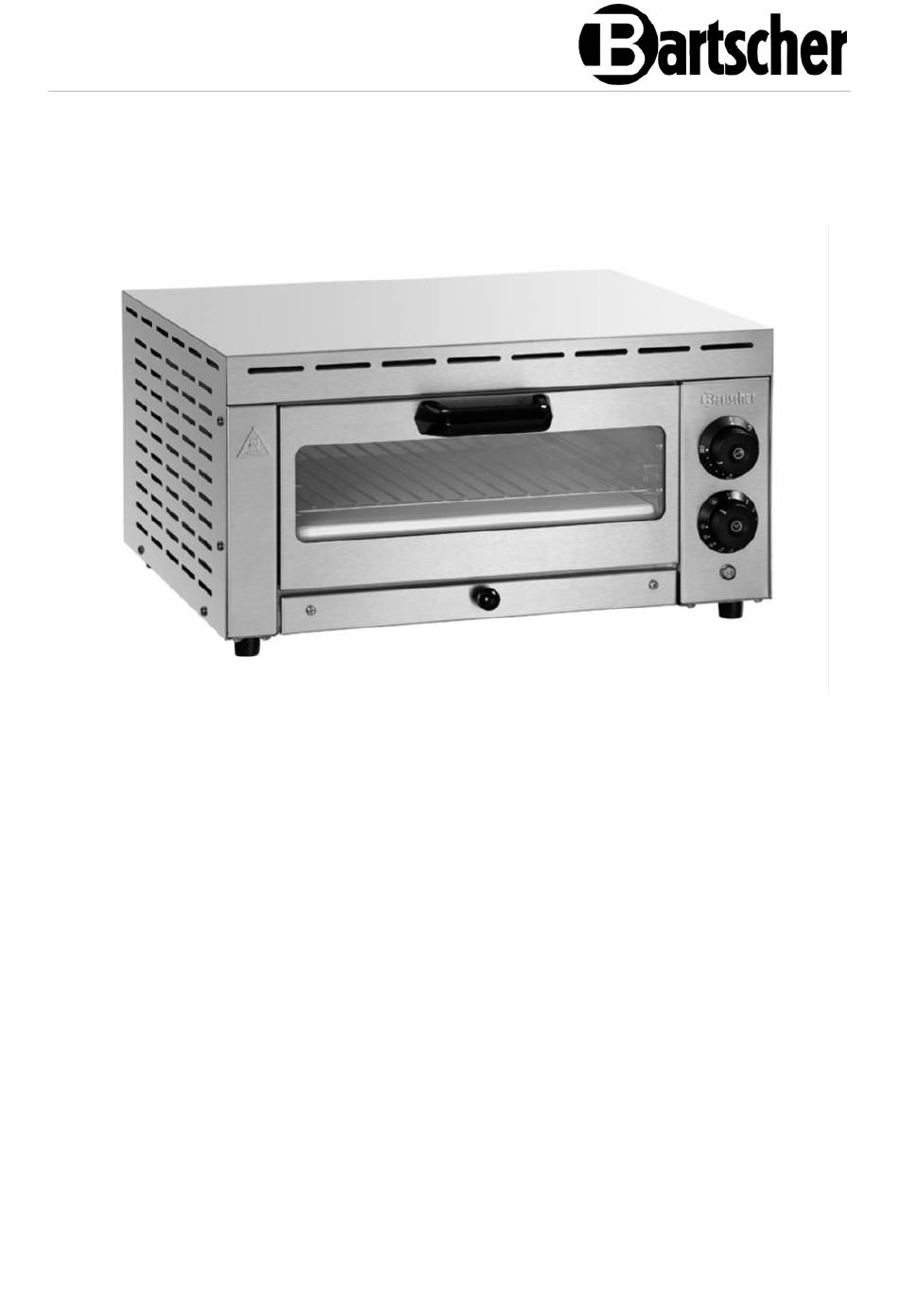

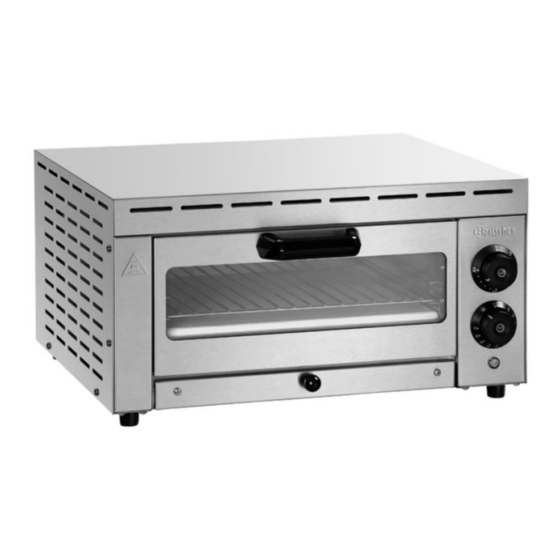

- Page 1 ST340 A201113...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-03-29...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Health Hazard Due to Burnt Food Products • Acrylamides that are present in burnt food products are hazardous to health and may cause cancer. • Remove burnt pieces. • Do not bake products to get them excessively over-done. Operating personnel •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Baking pizza and similar products. The appliance is not designed for continuous operation in industrial applications. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Pizza oven ST340 A201113 Art. No.: Material: stainless steel Baking chamber material: steel, galvanised Number of baking chambers: Internal dimensions (W x D x H), in mm: 342 x 345 x 70 Pizza size, number / max. Ø, in cm: 1 / 33,5 Temperature range, min.–max., in °C:... -
Page 12: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Housing 2. Ventilation openings 3. Temperature controller 4. Timer 5. Heating-up indicator lamp (orange) 6. Door with sight glass 7. Crumb drawer 8. Door handle 9. Pizza rack holder 10. -
Page 13: Functions Of The Appliance
Installation and operation Functions of the Appliance The pizza oven may be used for baking crispy pizza with the diameter of up to 33.5 cm on a pizza rack or firebrick. The temperature and time may be set with suitable controllers. The sight glass window makes it possible to control the baking process. - Page 14 Installation and operation • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Leave at least 20 cm clearance from flammable walls and items. Connection — electrical power • Check if technical specifications of the appliance (see rating plate) correspond to local electrical grid specifications.
-
Page 15: Operation
Installation and operation Operation WARNING! Risk of burns! The external surface of the appliance is very hot during its operation. Do not touch hot surfaces of the appliance. Use only the intended rotary controllers and switches to operate the appliance. The baking chamber heats up considerably during operation. - Page 16 Installation and operation As soon as the set temperature has been reached, the heating-up indicator light goes off. When the temperature in the baking chamber drops, the heating-up indicator light goes on again and the appliance heats up again to the set temperature. 4.
-
Page 17: Cleaning
Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. - Page 18 Cleaning 4. Remove the crumb drawer, and empty and clean it. Fig. 3 5. Clean external surfaces and door with the sight glass with use of a damp, soft cloth. Use a mild cleaning agent if required. 6. Wipe with a clean cloth. 7.
-
Page 19: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. -
Page 20: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
