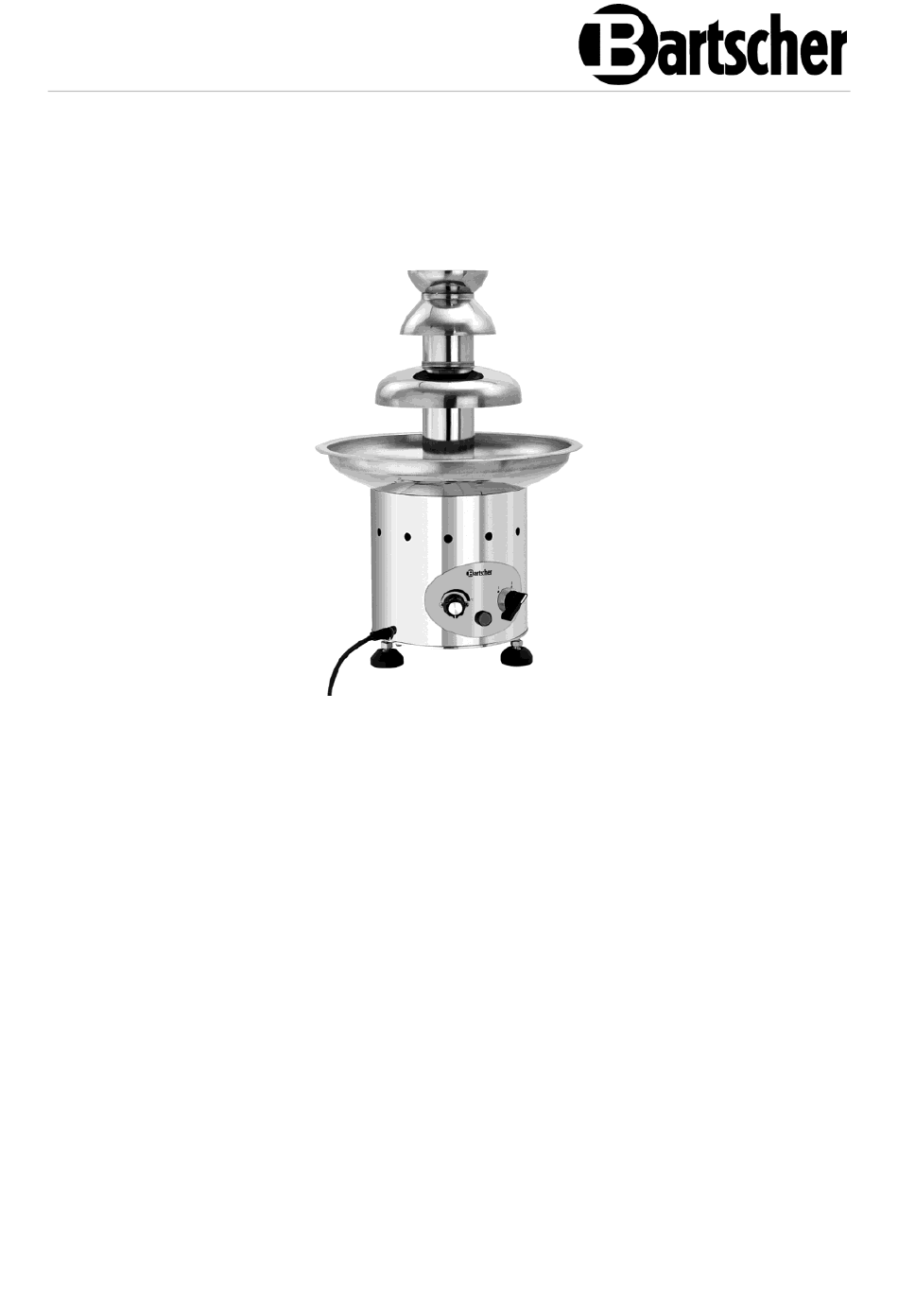

  • Page 1 SB 325-1 900007...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-11-05...
  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............
  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.
  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Any repairs or housing opening may be carried out by professionals and relevant workshops only. • Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges.
  • Page 7 Safety Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – melting and transporting melted chocolate. This appliance is intended for use in households and similar places, e.g.: –...
  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.
  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.
  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Chocolate fountain SB 325-1 900007 Art. No.: Material: stainless steel Volume: Connected load: 0,325 kW | 220-240 V | 50/60 Hz Dimensions (W x D x H), in mm: 340 x T 340 x H 480 Weight, in kg: We reserve the right to implement technical modifications.
  • Page 12: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 1 1. Fountain's top plate with crown 2. Screw 3. Fountain's bottom plate 4. Bowl 5. Control panel 6. Feet (3 pcs) 7. Power cord 8. Motor block 9. Column 10 / 20 900007...
  • Page 13: Installation And Operation

    Installation and operation Control Elements Fig. 2 A. Temperature controller B. Appliance operation indicator light C. Function switch Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS.
  • Page 14 Installation and operation • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • The appliance should be placed on surfaces that are: – even, with sufficient bearing capacity, resistant to water, dry and resistant to high temperatures;...
  • Page 15: Operation

    Installation and operation Operation wwwwf Appliance Preparation / Assembly 1. Before use, clean the appliance and removable elements observing instructions in section 6 'Cleaning'. 2. Dry all washed elements and surfaces thoroughly. 3. Assemble the screw with the motor drive. 4.
  • Page 16 Installation and operation NOTE! Chocolate mass must be liquid. Initial Chocolate Melting In order to shorten the chocolate melting time, you may use a pre-melted chocolate. When melting the chocolate, follow the instructions: Melting in a microwave 1. Crush the chocolate to chunks. 2.
  • Page 17 Installation and operation NOTE! The appliance is ready for operation after installation and heating-up, when chocolate in the bowl is fully liquid. 1. In order to activate the screw, rotate the function switch to 'I' position. The chocolate mixture is sucked up under the column and exits at the tip end of the column, through the crown.
  • Page 18: Cleaning

    Cleaning The screw is switched off, and the chocolate flows down into the bowl. 2. To switch the heater off, rotate the temperature controller to the limit, counter- clockwise. 3. Disconnect the appliance from the mains socket (pull the plug out) and wait for it to cool down.
  • Page 19 Cleaning 9. Pour warm water with a mild cleaning agent into the emptied bowl and wait for it to soak up. 10. Then remove the chocolate residues with a sponge or dish-washing brush. 11. Empty the bowl and wipe it with a soft cloth. 12.
  • Page 20: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
