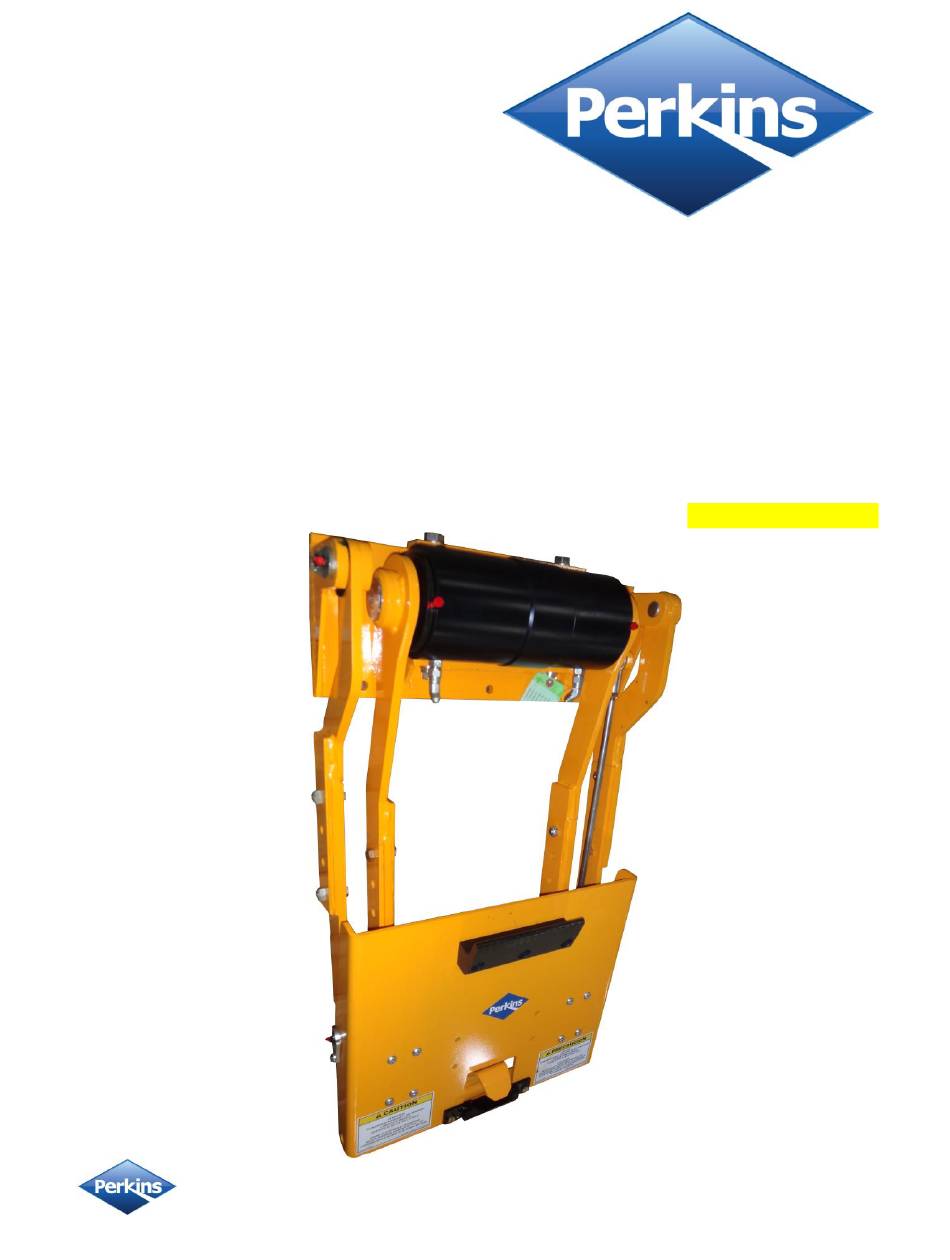

Installation & Operational Manual
Model D6071-57-THIN
Hydraulic Cart Lifter
Protected by US Patents 6,921,239 & 7,273,340
Perkins Manufacturing Company
800-882-5292
Revised:02/15/2021
Creators of the TuckAway
Cart Lifter
®
www.perkinsmfg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D6071-57-THIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perkins D6071-57-THIN

Summary of Contents for Perkins D6071-57-THIN

  • Page 1 Installation & Operational Manual Model D6071-57-THIN Hydraulic Cart Lifter Protected by US Patents 6,921,239 & 7,273,340 Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter ® www.perkinsmfg.com...
  • Page 2 Warranty 2-years *** Perkins regularly makes product improvements. Specifications are subject to change without notice. * Actual pressure required to lift a load can vary. ** Do not lift more than the recommended amount printed on the cart by the cart manufacturer or damage or injury may result.
  • Page 3 A NOTE ABOUT WEIGHT CAPACITY Please note that the advertised weight capacity of our Perkins lifters is typically 400 lbs, which includes our standard lifters equipped with our standard 27k rotary actuator. That figure of 400 lbs exceeds the marked capacity of the bin.
  • Page 4 D6071-57-THIN Overall Dimensions Perkins regularly makes product improvements. Dimensions are subject to change without notice. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 2 ® www.perkinsmfg.com...
  • Page 5 D6071-57-THIN Overall Dimensions Perkins regularly makes product improvements. Dimensions are subject to change without notice. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 3 ® www.perkinsmfg.com...

  • Page 6: Glossary Of Terms

    Control Valves are sold separately or as part of a tap-in kit. The valves are shown for reference / identification purposes only. Your specific installation may require other equipment not shown. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway...

  • Page 7: Installation Safety

    Do not paint over caution and warning labels.  If there are any questions about the proper installation or use of the cart lifter not covered in the manual, it is recommended to call Perkins at 800-882-5292. Installation Tips Do not mount the lifter to a refuse body which is not already mounted to a chassis.
  • Page 9 A good mounting height will make latching carts Upper hook mounting height effortless with no lifting or holding the cart in place. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway...
  • Page 10 Dimensions shown above are an example only and will vary from truck to truck Perkins recommends adding steel structural tube across the entire length of the load sill. This tube becomes the new load sill.
  • Page 11 Side Loader Aplication Installation The D6071-57-THIN can be used on rear and sideloader aplications. Truck Components Involved Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 8 ® www.perkinsmfg.com...
  • Page 12 Centering The Lifter Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 9 ® www.perkinsmfg.com...
  • Page 13 Mounting Height Based on the mounting specs of the lifter you are installing, provided at the beginning of this manual, tack weld the mounting plate on the truck’s frame at level and perpendicular with the ground. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 14 Attach The Lifter Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 11 ® www.perkinsmfg.com...
  • Page 15 Support Mounting Plate Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 12 ® www.perkinsmfg.com...
  • Page 16 Other Mounting Options Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 13 ® www.perkinsmfg.com...
  • Page 17 Procede with the Hydraulic Components Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 14 ® www.perkinsmfg.com...
  • Page 18 Double check the hook height to the ground. If everything appears satisfactory, the lifter’s mounting plate and supports may be welded fully. The mechanical portion of the installation is complete. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 19 Note: Be careful not to cut into the original load sill or else the structural integrity of the tailgate can be compromised. It may be necessary to add custom structure reinforcements where the lifter is to be mounted. Perkins Manufacturing Company 800-882-5292...
  • Page 20 That is normal. Note: The size and shape of the bumper extension can vary depending on your fabrication preferences. Perkins does offer pre- made bumper extension kits, sold separately: CA1084 – single lifter, offset to the right CA1085 –...
  • Page 21 Double check that a commerical container cannot make contact with the lifter. If everything is satisfactory, weld fully. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 18 ®...
  • Page 22 Note the Bumper Extension fully protects the cart lifter from contact with the commercial container. The elephant ears and container locks have been shifted back and material added. The reverse lights have been relocated in this installation so they would not be obscured by the lifter placement. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 23 The maximum amount of weight that can be lifted is limited by the pressure relief valve. The settings must be determined with a pressure gauge. The D6071-57-THIN requires 1650 psi to lift a 400 lb load. Place a pressure gauge after the hand valve and run the actuator until it stops, continue activating the handle and note the pressure on the gauge.
  • Page 24 (typically about 48” high) so that repeated ergonomics is easy to use and safe. The Perkins hand valve assembly comes with a mounting bracket which may be welded directly to the side of the truck. Typically, the hand valve’s handle will point to the...
  • Page 25 With the system off and depressurized, find the pressure line that feeds the packer valve and disconnect it. Connect this pressure line to the “IN” port of the Perkins diverter valve. Connect the “OUT” port of the diverter valve back to the packer control valve where the pressure line originally was.
  • Page 26 The Perkins Diverter Valve Ordinarily, the diverter valve’s port “P” will feed the lifter. But, if you have two lifters, then you will use the Perkins Double Diverter Valve. It’s the same valve, except port “P” is plugged, and a 50/50 splitter valve is mounted on top.
  • Page 27 Tapping into the Tank Line There are two ways to run the oil back to tank. Perkins does not suggest allowing the return oil to get pushed back into the packer control valve, because this generates back pressure and heat.
  • Page 28 Adjusting the Perkins Hydraulics Adjusting the Speed Single Diverter: D63237s Double Diverter: D63411s This valve’s adjustment controls the flow going to the lifter. The flow controls the speed of the lifter. A typical 27k rotary lifter requires 3.5 gpm to achieve a 6-8 second cycle time.
  • Page 29 Raise the lifter until it stops and continue to pull the handle. Note the pressure on the gauge and adjust the screw accordingly. Note: The setting for the D6071-57-THIN is approximately When the pressure is correct, 1700 psi to lift 400 lbs. retighten the locking nut.
  • Page 30 If the lifter comes down too quickly, try turning this valve in clockwise ¼ turn at a time until the down direction is smooth and under control. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway...
  • Page 32 #4 bleed ports located atop it. Cracking the plug loose slightly will allow trapped air to escape. Perkins recommends this be performed only as necessary. Lifter motion that is very erratic is usually a sign of trapped air. The lifter...
  • Page 33 Perkins Single Lifter Hydraulics Schematic This is only a suggested hydraulic circuit. Only the actuator and flow control valve is part of the lifter. The rest of the components are part of the “sold separately” hydraulic kit or part of the truck’s hydraulic system.
  • Page 34 Perkins Double Lifter Hydraulics Schematic This is only a suggested hydraulic circuit. Only the actuator and flow control valve is part of the lifter. The rest of the components are part of the “sold separately” hydraulic kit or part of the truck’s hydraulic system.
  • Page 35 Step 4: Lower the cart by reversing the hand valve handle (pushing down), until the cart is safely returned to the ground and the lifter has disengaged the cart. Step 5: Remove the empty cart and repeat the process as needed. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 36 If the truck is equipped to dump commercial containers, the lifter must be stored all the way down prior to engaging the commercial container or the cart lifter may be crushed by the container. This damage is not covered by warranty. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 37 Adjusting the Lifter Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 34 ® www.perkinsmfg.com...
  • Page 38 If you experience any difficulties with the cart type you have, please call Perkins at 800-882-5292 to discuss the problem and Perkins will advise the best solution to meet your needs.
  • Page 39 1-3/8” +/- 1/16. Each tooth offers separation of 12.8 degrees, so if you use the wrong tooth, it should be readily obvious and easily correctible. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...

  • Page 40: Troubleshooting Guide

    If the pressure falls, you may have internal leakage and the actuator should be repaired/rebuilt with new seals. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway...
  • Page 41 On new installations, this is the result of having the pressure and tank lines reversed. Check and make sure that the pressure line goes to the “IN” port and the tank line goes to the “OUT” port. Perkins Manufacturing Company 800-882-5292...
  • Page 42 Adjust the speed of the lifter to bring the cycle time to 6-8 seconds. Make sure the pressure is set no higher than 1950 psi. Make sure the lifter is not damaged. Bent or broken lifter parts can contribute to cart damage. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 43 In this case, the lifter is most likely being operated too fast, or the carts are overweight. Excessively hard shaking of the carts by the operators can also lead to cart damage. Train your operators to operate the lifters properly. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...

  • Page 44: Making A Warranty Claim

    At right is an example of the serial number plate. It will be stamped with a model number and serial number. Once you have the number, please call Perkins Manufacturing at 800-882-5292 for additional instructions. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 45 D6071-57-THIN Exploded Parts View Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 42 ® www.perkinsmfg.com...
  • Page 46 D6071-57-THIN Exploded Parts View Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021 Creators of the TuckAway Cart Lifter Page 43 ® www.perkinsmfg.com...
  • Page 47 D6071-57-THIN Parts List Item Description D62001 LOCKNUT 5/8-11 Distorted Thread, Grade 8, Zinc- plated CC3300 BOLT HHCS 1/2-13 X 1 1/2 GRADE L9 L D62004 USS FLATWASHER 3/8 X 1 OD ZINC PLATED D62006 BOLT FHCS 1/2-13 X 1 1/4 GR8; Zinc Plated D62008 SAE FLATWASHER 1/2 X 1.06 OD ZINC PLATED...
  • Page 48 D6071-57-THIN Parts List Cont. D74325 LUG WELDMENT ADJUSTABLE (Short / Shallow) - D74336 MTG PLATE WELD -26K Rev A D74420 REAR MTG PLATE D74431 DRIVER PLATE LOWER D74433 LOWER IDLER PLATE D74435 LH DRIVER ARM WELD D74436 RH DRIVER ARM WELD...
  • Page 50 Sometimes a lifter is damaged by collision, although the actuator and mounting parts are usually not damaged in this type of accident. Perkins offers a kit for the easy ordering of the necessary parts to quickly restore the lifter to good operation.
  • Page 51 Protective Safety Labeling Perkins provides each finished cart lifter with ANSI-specified caution labels. They are clearly placed directly on the machine for easy viewing by the operators. Should the cart lifter ever be re-painted, or if the labels are damaged beyond recognition, it is advised to replace the labels immediately to help keep your crew safe.
  • Page 53 If any issues occur, please contact service immediately. Perkins Manufacturing Company 800-882-5292 Revised:02/15/2021...
  • Page 54 Safety Labeling and Training Requirements Perkins provides safety labeling on all outgoing product per ANSI regulations, seen below. It is the responsibility of owner of this product to maintain the safety labels, keep them clear & visible to all users, and replace the safety labels when they become worn or missing.
  • Page 55 If Perkins shipped the wrong item(s), the incorrect item(s) may be returned within 30 days of receipt of the item by contacting Perkins for a return authorization (RGA#). The item(s) must be shipped within 2 weeks of the return authorization. Perkins will pay the return freight and waive the restocking fee.
  • Page 56 If you believe your Perkins lifter has suffered from a failure that could be covered by warranty, immediately lock out any equipment that has failed per OHSA guidelines.
  • Page 57 PERKINS warrants any service parts it may sell for a period of ninety (90) day from the date of delivery for replacement only. The item being replaced must be returned to PERKINS for evaluation upon its request.
