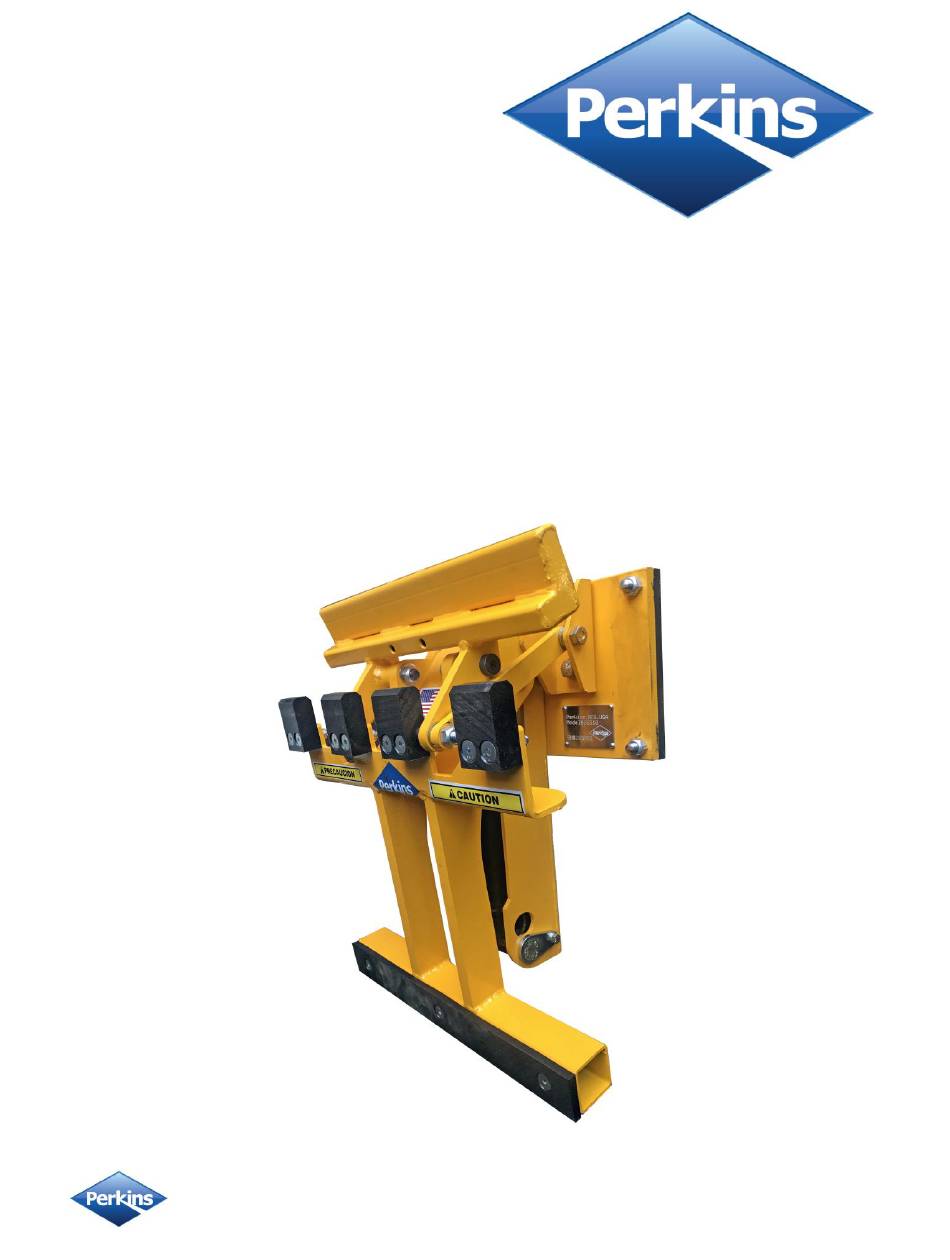

- Page 1 Installation & Operational Manual Model D6510 Hydraulic Cart Lifter Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com ®...
- Page 2 Warranty 1-year *** Perkins regularly makes product improvements. Specifications are subject to change without notice. * Actual pressure required to lift a load can vary. ** Do not lift more than the recommended amount printed on the cart by the cart manufacturer or damage or injury may result.
- Page 3 D6510 Overall Dimensions Perkins regularly makes product improvements. Dimensions are subject to change without notice. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com Page 2 ®...
-
Page 4: Glossary Of Terms
Control Valves are sold separately or as part of a tap-in kit. The valves are shown for reference / identification purposes only. Your specific installation may require other equipment not shown. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com... -
Page 5: Installation Safety
Do not paint over caution and warning labels. If there are any questions about the proper installation or use of the cart lifter not covered in the manual, it is recommended to call Perkins at 800-882-5292. Perkins Manufacturing Company... - Page 7 Note: Be careful not to cut into the original load sill or else the structural integrity of the tailgate can be compromised. It may be necessary to add custom structure reinforcements where the lifter is to be mounted. Perkins Manufacturing Company 800-882-5292...
- Page 8 You can mount a single lifter to the center or offset to the side, like shown above. Or double-mount the lifters, 35” apart, center to center. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com Page 6...
- Page 9 Make sure the height of the lifter allows easy engagement of all cart sizes you plan to use before welding the mounting plate fully to the truck. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
- Page 10 * The mounting plate may be positioned as low as 39 ½” and as high as 42”, as needed. The mounting plate itself should be vertical and level. All carts should be checked for good engagement before welding the plate fully. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
- Page 11 Dimensions shown above are an example only and will vary from truck to truck Perkins recommends adding steel structural tube across the entire length of the load sill. This tube becomes the new load sill.
- Page 12 Double check the tooth height to the ground. If everything appears satisfactory, the lifter’s mounting plate and supports may be welded fully. The mechanical portion of the installation is complete. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
- Page 13 Note: Be careful not to cut into the original load sill or else the structural integrity of the tailgate can be compromised. It may be necessary to add custom structure reinforcements where the lifter is to be mounted. Perkins Manufacturing Company 800-882-5292...
- Page 14 That is normal. Note: The size and shape of the bumper extension can vary depending on your fabrication preferences. Perkins does offer pre-made bumper extension kits, sold separately: CA1084 – single lifter, offset to the right CA1085 –...
- Page 15 Customized pieces of steel are used thoughtout this step and are not provided by Perkins. Prior to fully welding, make sure a commerical container will properly lock up to the container locks in their new position.
- Page 16 Note the Bumper Extension fully protects the cart lifter from contact with the commercial container. The elephant ears and container locks have been shifted back and material added. The reverse lights have been relocated in this installation so they would not be obscured by the lifter placement. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
- Page 17 The maximum amount of weight that can be lifted is limited by the pressure relief valve. The settings must be determined with a pressure gauge. The D6510 requires 1550 psi to lift a 400 lb load. Place a pressure gauge after the hand valve and run the actuator until it stops, continue activating the handle and note the pressure on the gauge.
- Page 18 (typically about 48” high) so that repeated ergonomics is easy to use and safe. The Perkins hand valve assembly comes with a mounting bracket which may be welded directly to the side of the truck. Typically, the hand valve’s handle will point to the back of the truck...
- Page 19 With the system off and depressurized, find the pressure line that feeds the packer valve and disconnect it. Connect this pressure line to the “IN” port of the Perkins diverter valve. Connect the “OUT” port of the diverter valve back to the packer control valve where the pressure line originally was.
- Page 20 The Perkins Diverter Valve Ordinarily, the diverter valve’s port “P” will feed the lifter. But, if you have two lifters, then you will use the Perkins Double Diverter Valve. It’s the same valve, except port “P” is plugged, and a 50/50 splitter valve is mounted on top.
- Page 21 Tapping into the Tank Line There are two ways to run the oil back to tank. Perkins does not suggest allowing the return oil to get pushed back into the packer control valve, because this generates back pressure and heat.
- Page 22 Adjusting the Perkins Hydraulics Adjusting the Speed Single Diverter: D63237s Double Diverter: D63411s This valve’s adjustment controls the flow going to the lifter. The flow controls the speed of the lifter. A typical lifter requires 3.5 gpm to achieve a 6-8 second cycle time.
- Page 23 Note the pressure on the gauge and adjust the screw accordingly. When the pressure is correct, retighten the locking nut. Note: The setting for the D6510-27k is approximately 1650 psi to lift 400 lbs. Replacement Parts: D63127 – Seal Kit D63192 –...
- Page 24 If the lifter comes down too quickly, try turning this valve in clockwise ¼ turn at a time until the down direction is smooth and under control. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com...
- Page 25 Perkins Single Lifter Hydraulics Schematic Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com Page 23 ®...
- Page 26 Perkins Double Lifter Hydraulics Schematic Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com Page 24 ®...
- Page 27 Step 4: Lower the cart by reversing the hand valve handle (pushing down), until the cart is safely returned to the ground and the lifter has disengaged the cart. Step 5: Remove the empty cart and repeat the process as needed. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
- Page 28 They risk causing damage to the lifter or breaking carts, or dropping carts. Use of the lifter is to be straight up, and then straight down in a single motion, no shaking. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
- Page 29 If you experience any difficulties with the cart type you have, please call Perkins at 800-882-5292 to discuss the problem and Perkins will advise the best solution to meet your needs.
-
Page 30: Troubleshooting Guide
If the pressure falls, you may have internal leakage and the actuator should be repaired/rebuilt with new seals. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21... - Page 31 On new installations, this is the result of having the pressure and tank lines reversed. Check and make sure that the pressure line goes to the “IN” port and the tank line goes to the “OUT” port. Perkins Manufacturing Company 800-882-5292...
- Page 32 Try ¼ turn adjustments until the lifter returns to ground level smoothly. Perkins Manufacturing Company 800-882-5292...
- Page 33 In this case, the lifter is most likely being operated too fast, or the carts are overweight. Excessively hard shaking of the carts by the operators can also lead to cart damage. Train your operators to operate the lifters properly. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
-
Page 34: Making A Warranty Claim
At right is an example of the serial number plate. It will be stamped with a model number and serial number. Once you have the number, please call Perkins Manufacturing at 800-882-5292 for additional instructions. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21... - Page 35 D6510 Exploded Parts View Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com Page 33 ®...
- Page 36 D6510 Exploded Parts View Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21 Creators of the TuckAway Cart Lifter www.perkinsmfg.com Page 34 ®...
- Page 37 D6510 Exploded Parts Key Item Description D43518 PLASTIC TOOTH D43519 PLASTIC BUMPER D44501 CENTER CHANNEL rev B D44502 LH OUTER LUG D44503 RH OUTER LUG D44506 CLAMP WELDMENT REV B D44511 FACEPLATE WELD REV B D62008 SAE FLATWASHER 1/2 X 1.06 OD ZINC PLATED...
- Page 38 D6510 Exploded Parts Key D72113 LABEL - PERKINS LOGO, diamond cut, 4'' long x 2 1/2'' high, solid color (not a gradient) D72589 LABEL - ''CAUTION'' FOR D6220-TYPE MODELS D72590 LABEL - ''CAUTION'' FOR D6220-TYPE MODELS - SPANISH D72217 BOLT FHCS 3/8-16 X 1 3/4 GR8 ZINC PLATED...
- Page 39 Protective Safety Labeling Perkins provides each finished cart lifter with ANSI-specified caution labels. They are clearly placed directly on the machine for easy viewing by the operators. Should the cart lifter ever be re-painted, or if the labels are damaged beyond recognition, it is advised to replace the labels immediately to help keep your crew safe.
- Page 41 If any issues occur, please contact service immediately. Perkins Manufacturing Company 800-882-5292 Revised: 2/25/21...
- Page 42 Safety Labeling and Training Requirements Perkins provides safety labeling on all outgoing product per ANSI regulations, seen below. It is the responsibility of owner of this product to maintain the safety labels, keep them clear & visible to all users, and replace the safety labels when they become worn or missing.
- Page 43 If you believe your Perkins lifter has suffered from a failure that could be covered by warranty, immediately lock out any equipment that has failed per OHSA guidelines.
- Page 44 If Perkins shipped the wrong item(s), the incorrect item(s) may be returned within 30 days of receipt of the item by contacting Perkins for a return authorization (RGA#). The item(s) must be shipped within 2 weeks of the return authorization. Perkins will pay the return freight and waive the restocking fee.
- Page 45 PERKINS warrants any service parts it may sell for a period of ninety (90) day from the date of delivery for replacement only. The item being replaced must be returned to PERKINS for evaluation upon its request.
