Summary of Contents for GreenWorks CAF806

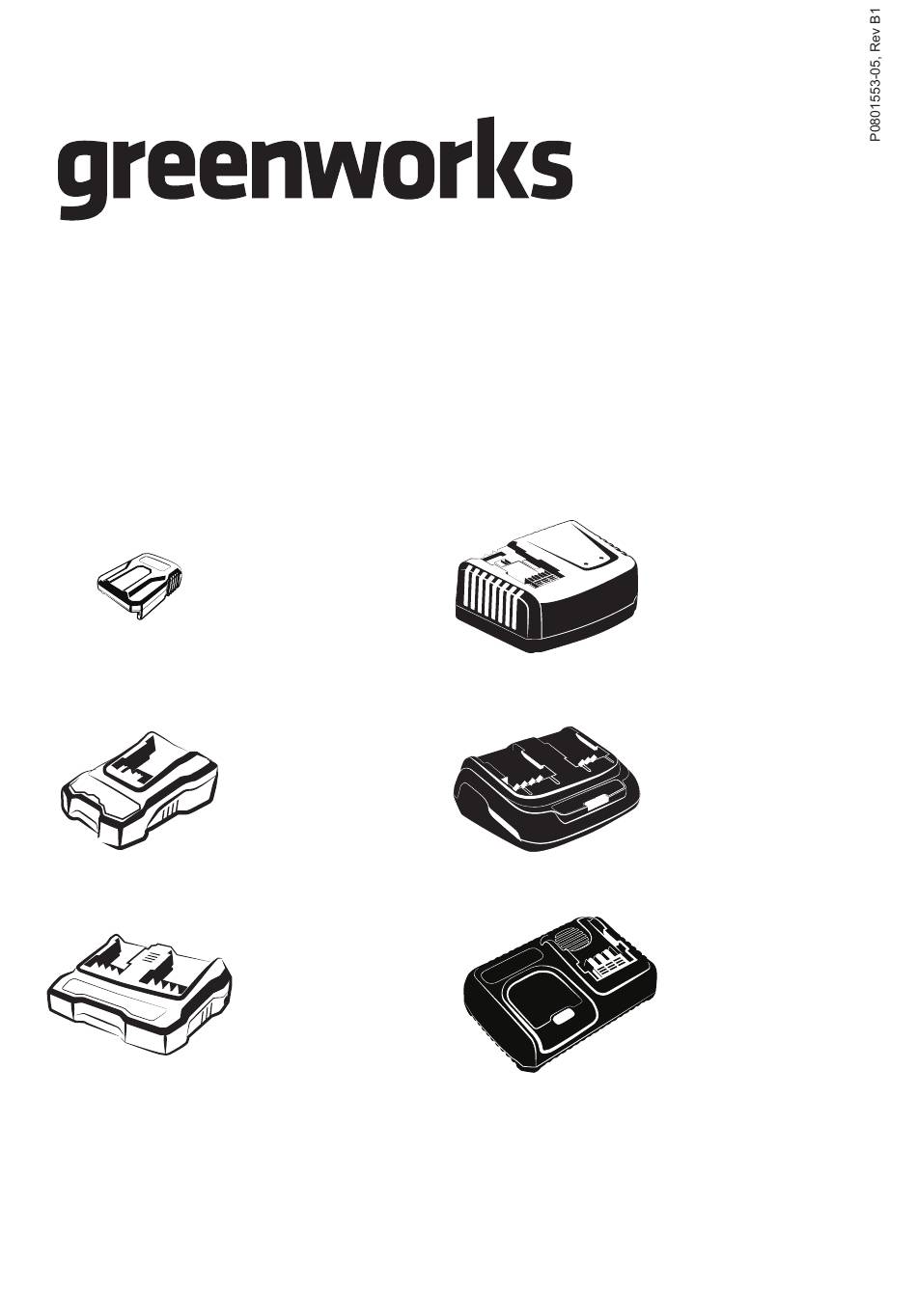

- Page 1 CHARGER OPERATOR MANUAL CHARGEUR MANUEL D’OPÉRATEUR CARGADOR MANUAL DEL OPERADOR 2900802 29492 29482 / CAF806 CAF826 / CAF822 CAF814 CAF820 www.greenworkstools.com...
-
Page 2: Table Of Contents
English Mount the charger..........7 Important Safety Instructions..4 Maintenance........7 Special rules for charger....4 Clean the machine..........7 Proposition 65........5 Stow the machine..........8 Symbols on the machine....5 Troubleshooting......... 8 Risk levels...........5 Technical data (Battery Charger)..8 Operation........... 5 10 Technical data (Battery pack)..8 Charge procedure..........5 11 Limited warranty...... -
Page 3: Important Safety Instructions
Model 2900802/29482/CAF806/CAF814/29492/ interference to radio or television reception. The reception CAF826/CAF822/CAF820. can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one •... -
Page 4: Proposition 65
Symbol Explanation For indoor use only Before charging, read the instructions Fuse For charger: 29482/CAF806 RISK LEVELS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYM- SIGNAL... - Page 5 English • If the status LED blinks RED, remove the battery pack from the charger for 1 minute. 2. Put the battery pack into the charger again. • If the status LED blinks GREEN, the battery pack is good. • If the status LED stays blinking RED, remove the battery pack and disconnect the charger.
-
Page 6: Examine The Charger
2. Use 2 wood screws to attach the charger on the wood studs. 3. For charger 29482/CAF806: Drill two holes 5.0 in. (127mm) on center ensuring they are level. For charger 29492: Drill two holes 5 3/4” (145mm) on center ensuring they are level. -
Page 7: Stow The Machine
2.5AH, 90Wh, 40V MAX Input 100-240V AC 50/60Hz, 0.54A Max Cell number Output 40V DC 0.5A Model BAF724/ 29472 Model 29482/CAF806 Battery 4.0AH, 144Wh, 40V MAX Voltage 40 V Cell number Input 120V AC 50/60Hz, 2.5A Max Output 40V DC 2A... -
Page 8: Limited Warranty
(3) years against defects in materials, parts or workmanship. Greenworks, at its own discretion, will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer.
