Summary of Contents for GreenWorks CAM811

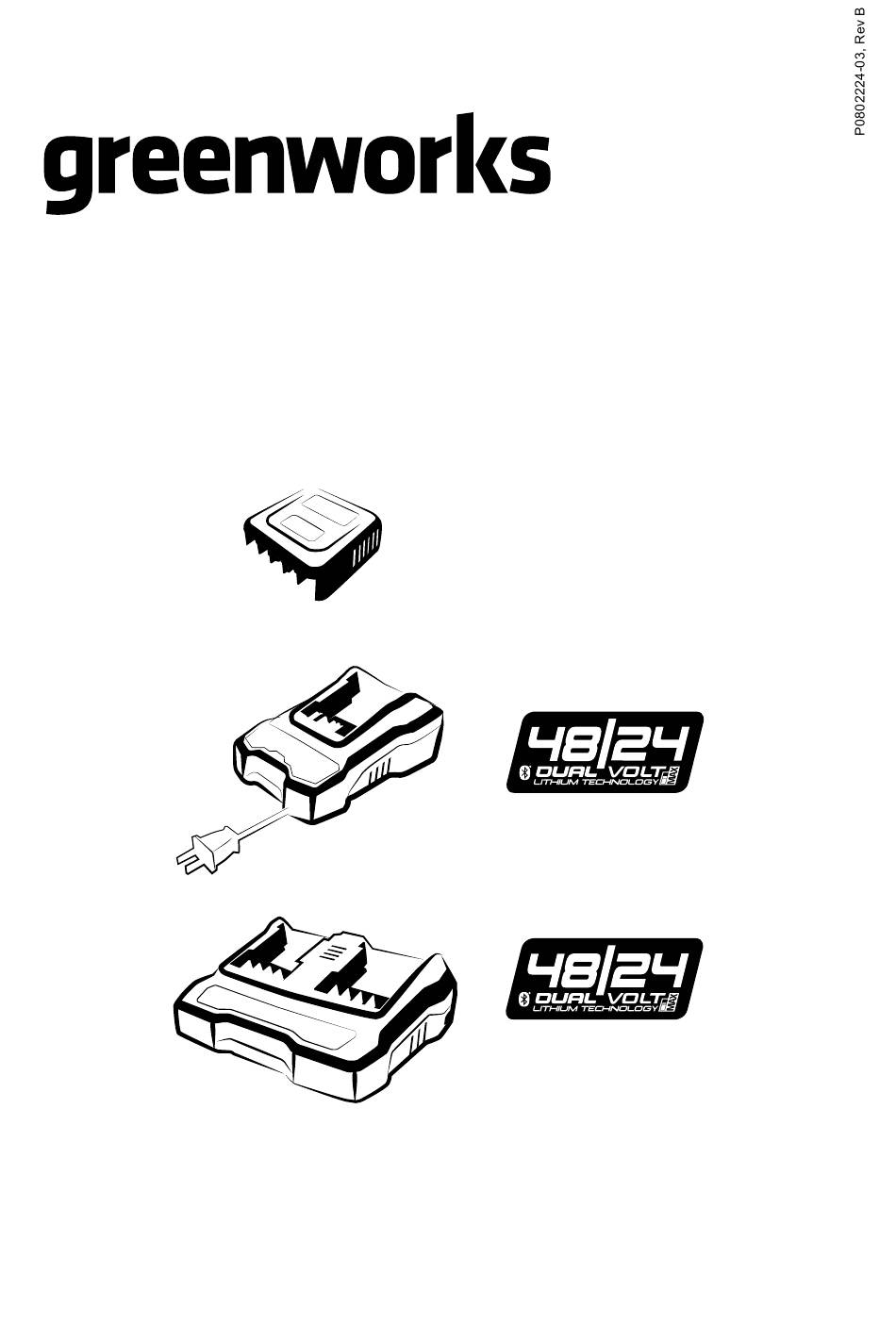

- Page 1 CHARGER OPERATOR MANUAL CHARGEUR MANUEL D’OPÉRATEUR CARGADOR MANUAL DEL OPERADOR CAM811(24C05A) CAM801/CAM803 CAM812 (24DPC2A)/ CAM813 (48DPC4A) www.greenworkscommercial.com www.shopgreenworksgear.com...
- Page 3 English Mount the charger..........6 Important Safety Instructions..4 Maintenance........7 Special rules for charger....4 Clean the machine..........7 Proposition 65........5 Stow the machine..........7 Symbols on the machine....5 Troubleshooting......... 7 Risk levels...........5 Technical data (Battery Charger)..7 Operation........... 5 10 Technical data (Battery pack)..7 Charge procedure..........5 11 Limited warranty......
- Page 4 The important safety and operating instructions for battery user is encouraged to try to correct the interference by one charger Models CAM811/ CAM803/ CAM801/ or more of the following measures: CAM812/ CAM813.
- Page 5 This is a diagnostic charger. The Charger LED Light (3) Class II illuminates in a specified order to show the current battery status. They are as follows: For charger: CAM811 For indoor use only Before charging, read the instructions Fuse...
- Page 6 English EXAMINE THE CHARGER If the battery pack does not charge correctly: 1. Examine the current of the power outlet with different machines. Make sure that the outlet works. 2. Examine that the charger contacts are not short-circuited. 3. If the charger is not under usual room temperature, move the charger and battery pack to a location where the temperature is between 6 ˚C and 40˚C .
- Page 7 21.6V 8.0AH, 172.8Wh 24V MAX 43.2V 4.0AH, 172.8Wh 48V MAX TECHNICAL DATA (BATTERY Cell number CHARGER) Model BAM706 Model CAM811 Battery 21.6V 4.0AH, 86.4Wh 24V MAX Voltage 24 V 43.2V 2.0AH, 86.4Wh 48V MAX Input 100-230V AC 50/60Hz, 0.5A Max...
- Page 8 (3) years against defects in materials, parts or workmanship. Greenworks, at its own discretion, will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer.
